63 99 491 Replacing Light Module For Rear Left Or Right Outside Door Handle Lighting (Up To 09/2004)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Disconnect plug connection (1).

Unlock both catches (2) and detach light guide (3).

Release screw (4).

Remove light module for outside door handle lighting (5).

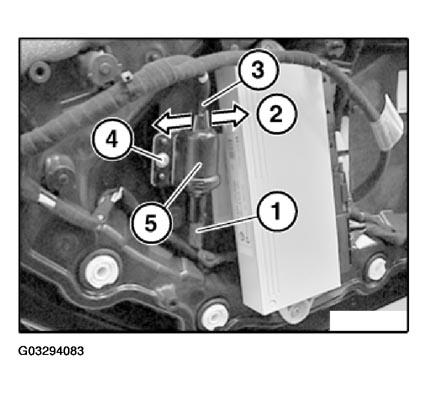

Fig 1: Plug Connection, Outside Door Handle Light Module, Light Guide, Catches, Retaining Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of light module for outside door handle lighting (2) must engage correctly when fiber optic guide is inserted.

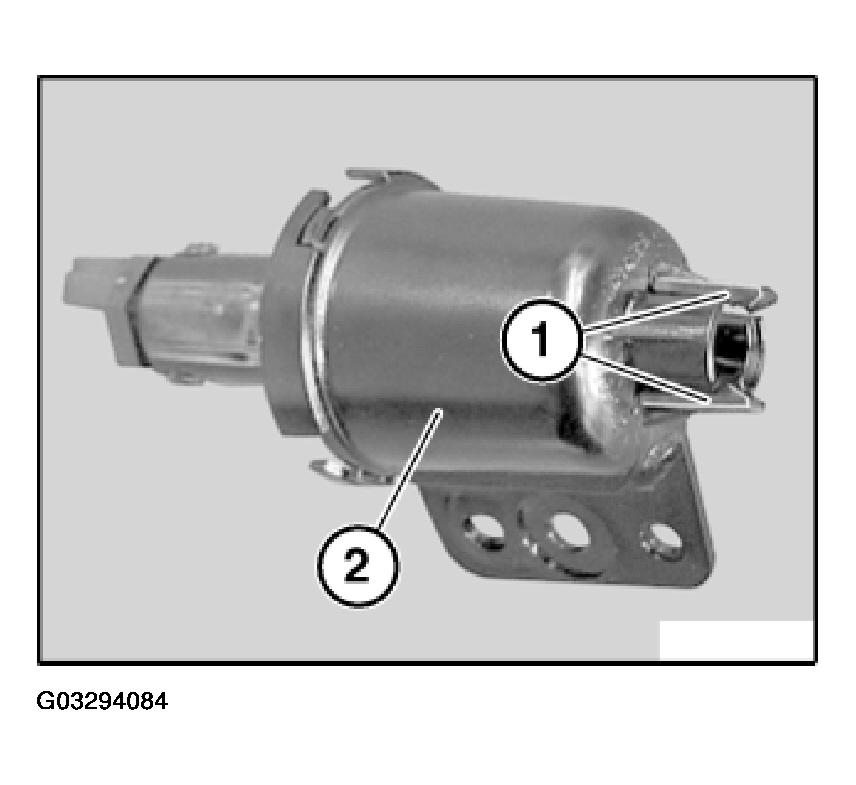

Fig 2: Catches And Door Handle Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
