65 13 090 Removing And Installing/Replacing Speaker (Mid-Range Speaker, Door At Rear)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Release screws (1).

Remove speaker (2) in direction of arrow.

Disconnect plug connection underneath and remove speaker (2).

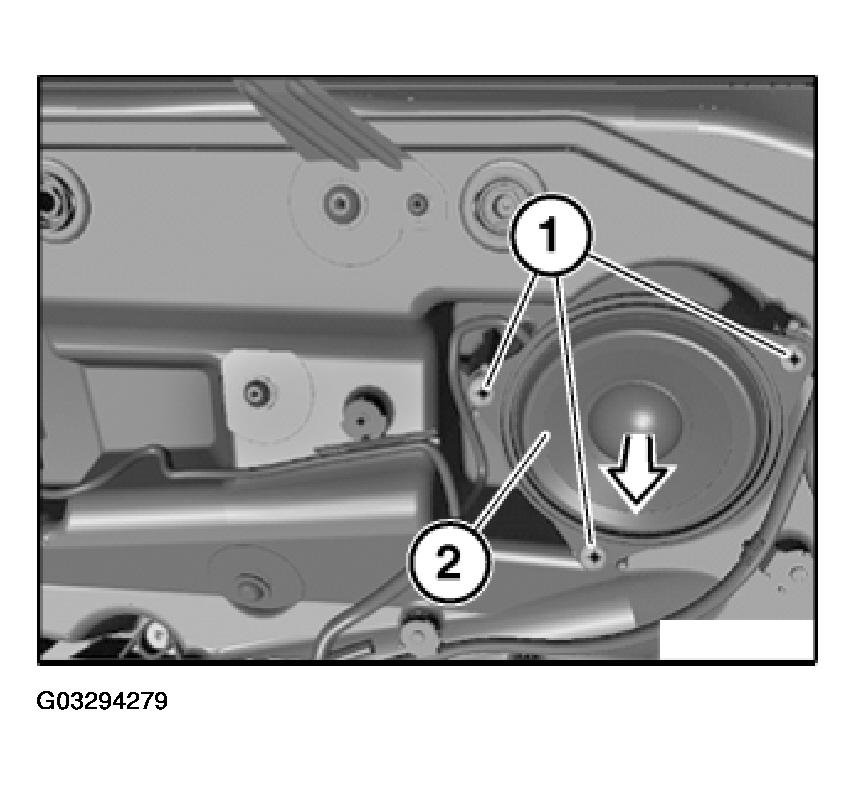

Fig 1: Speaker, Retaining Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
