54 12 115 Removing And Installing Glass Slide/Tilt Sunroof Lid
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove gaiter on left and right. Refer to 54 12 015 REPLACING LEFT OR RIGHT GAITER FOR GLASS SLIDE/TILT SUNROOF .

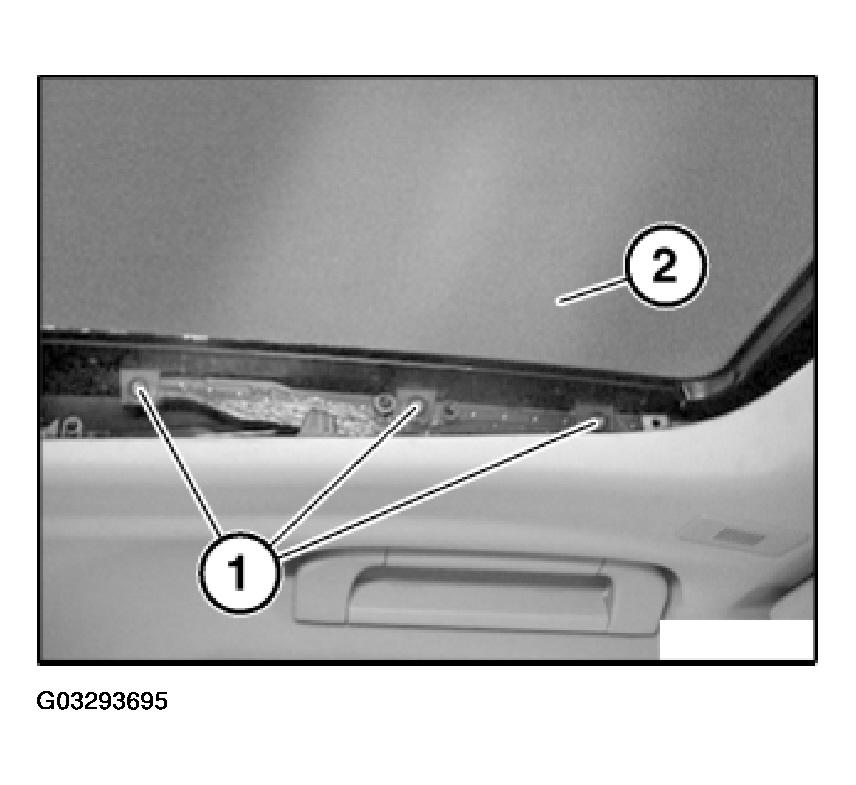

Release left and right screws (1).
Remove glass sunroof lid (2) towards top.
Installation:
Replace screws (1).
Insert screws (1) but do not tighten down yet.
Adjust and initialize sunroof lid. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) and 54 12 003 ADJUSTING GLASS SLIDE/TILT SUNROOF LID .
