54 12 003 Adjusting Glass Slide/Tilt Sunroof Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 315
00 9 341

Close glass sunroof lid (zero position).

Ideal Adjustment :

Distance:
- Distance (A) between lid and roof at front and rear must be the same.
- Slide in special tool 00 9 341 between seal and lid. This check (sliding in and pulling out the special tool) must be subject to tightness.
Height:
- Front - flush to 1 mm deeper.
- Rear - flush to 1 mm higher.

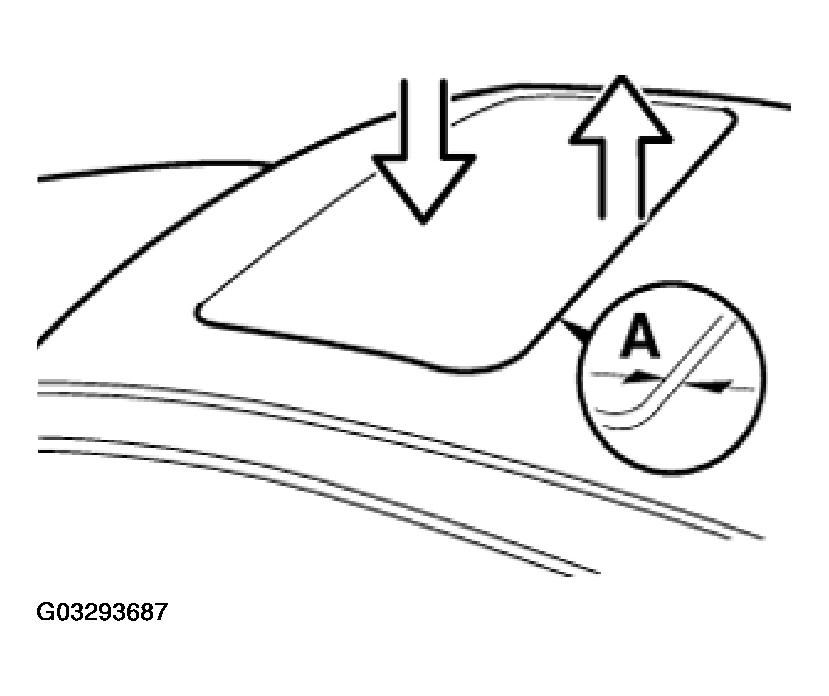

  Fig 1: Identifying Gap Between Lid And Roof
  Courtesy of BMW OF NORTH AMERICA, INC.

Remove gaiter on left and right. Refer to 54 12 015 REPLACING LEFT OR RIGHT GAITER FOR GLASS SLIDE/TILT SUNROOF .

Close sunroof lid again (zero position).

Slacken screws (1) on left/right so that sunroof lid (2) can still just be adjusted.

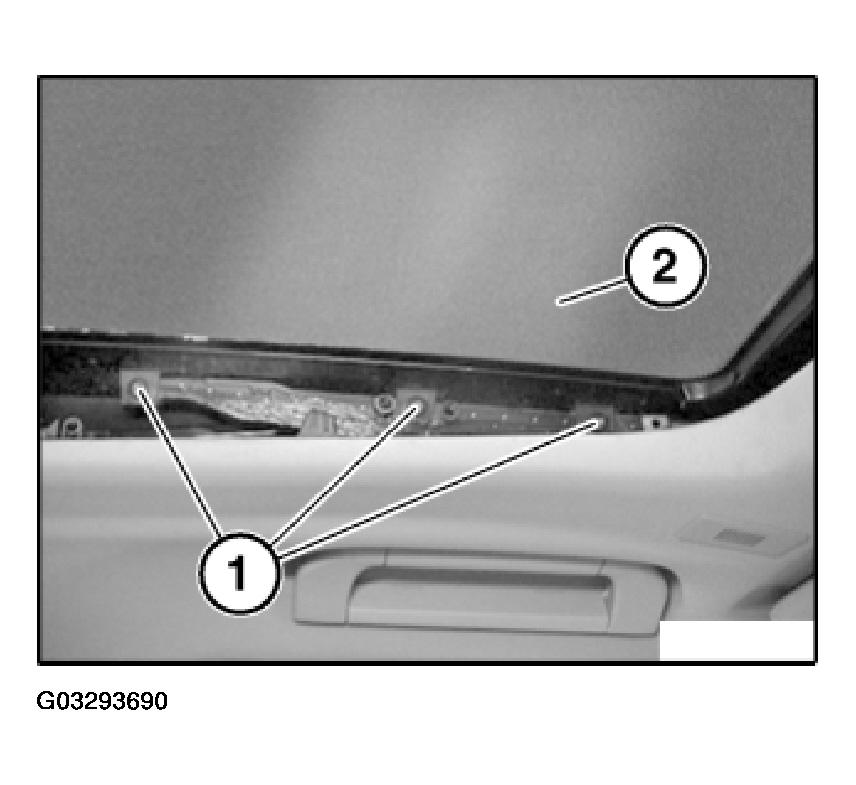

Fig 2: Screws And Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Height Adjustment:

Adjust height of sunroof lid (1) to roof (2) with special tool 00 9 315 (gap wedge).

Press sunroof lid at front and rear up or down until ideal position is reached.

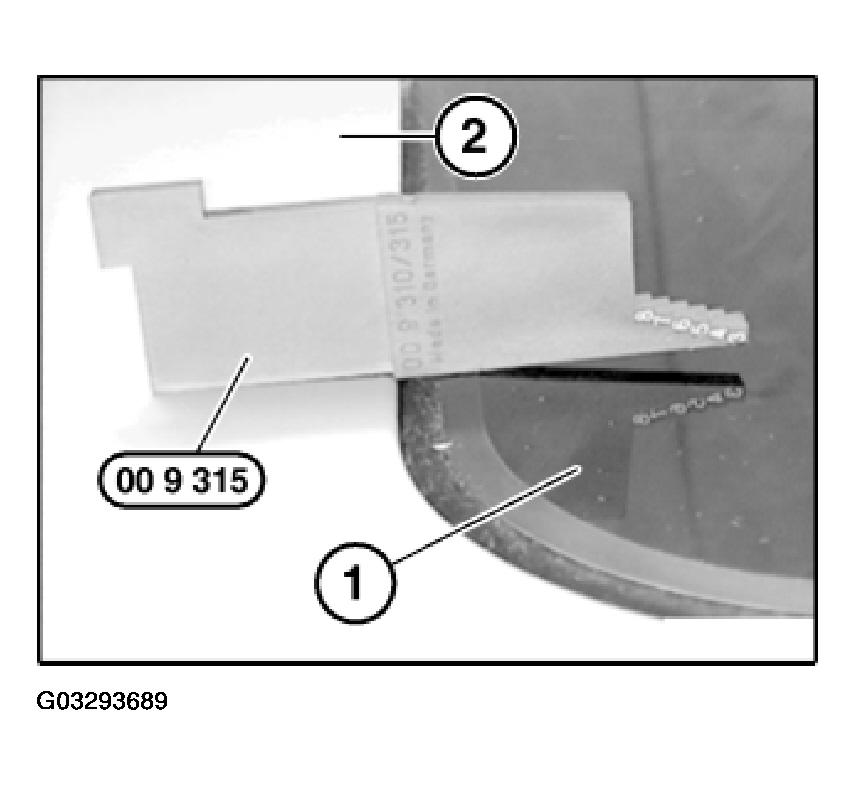

Fig 3: Sunroof Lid, Roof And Special Tool 00 9 315 (Gap Wedge)

Courtesy of BMW OF NORTH AMERICA, INC.

Distance Setting:

Slide sunroof lid towards front/rear until ideal position is obtained.

When ideal position is obtained:

Tighten screws (1),
Tightening torque, refer to 54 12 2AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .
Check function and adjustment of glass sunroof lid (2).

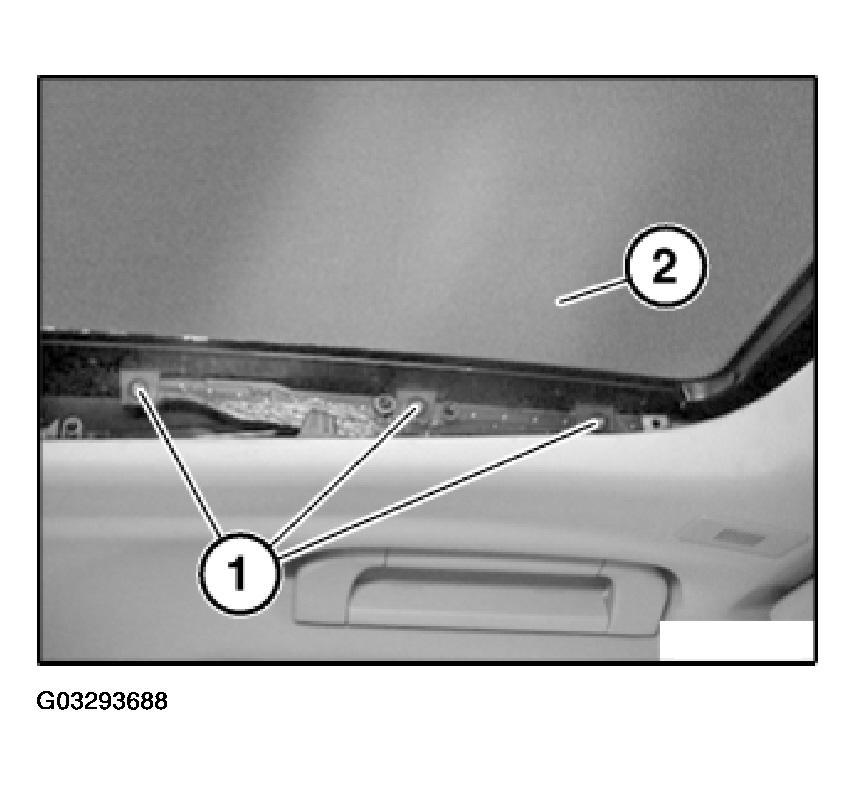

Fig 4: Screws And Glass Sunroof Lid
Courtesy of BMW OF NORTH AMERICA, INC.
