54 12 015 Replacing Left Or Right Gaiter For Glass Slide/Tilt Sunroof
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Move glass sunroof lid into "lift position".

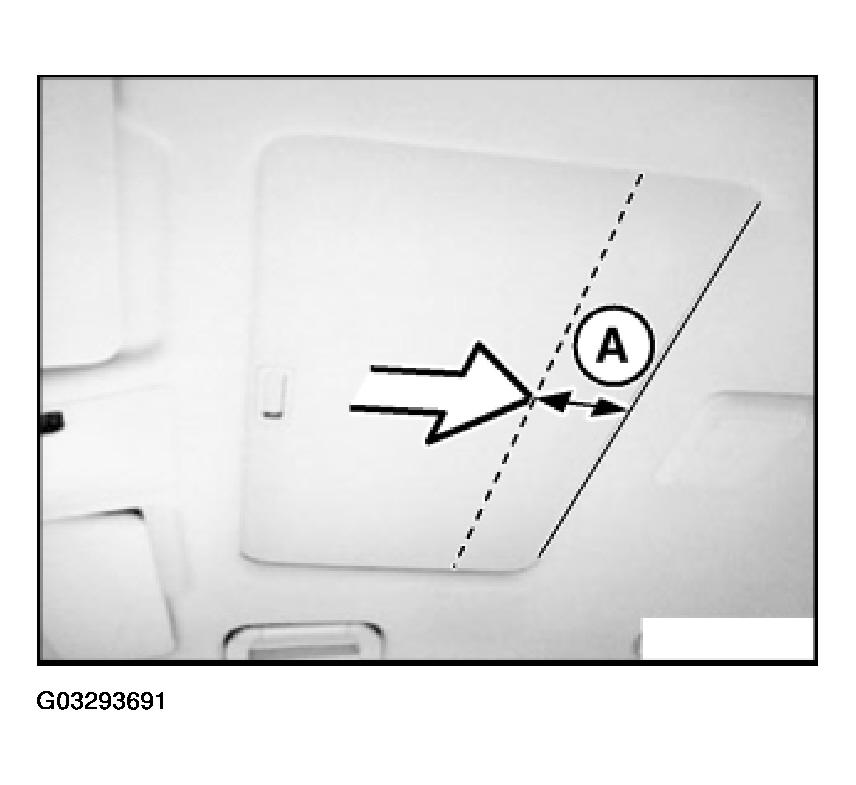

Slide roofliner (floating) slowly towards rear until stop can be felt.
E65, E66: A = approx. 60 mm.

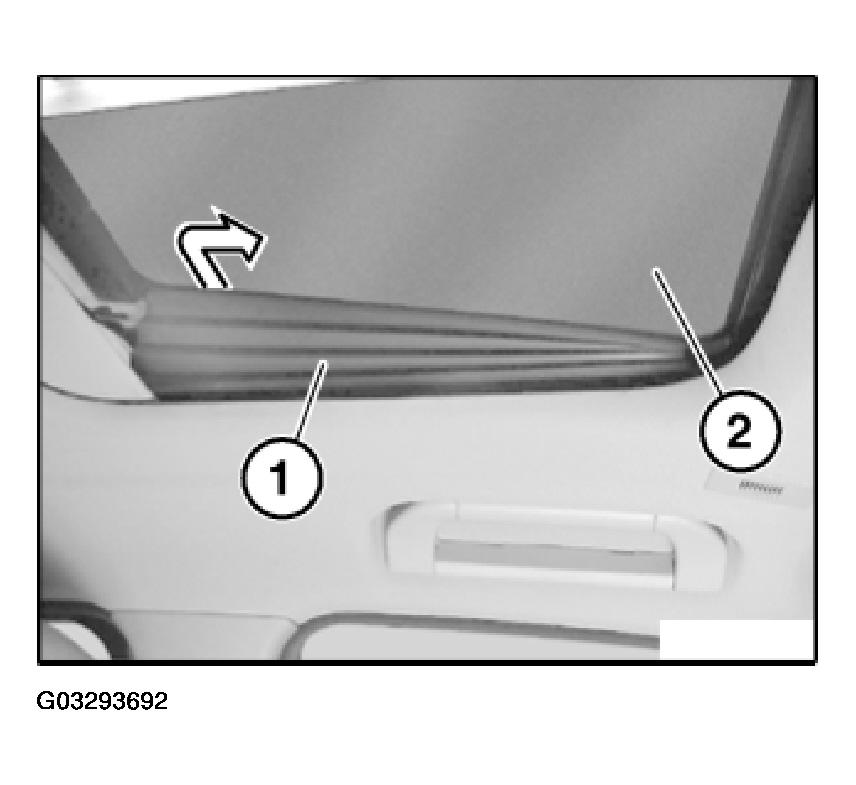

Pull out gaiter (1) at rear starting from glass sunroof lid (2).

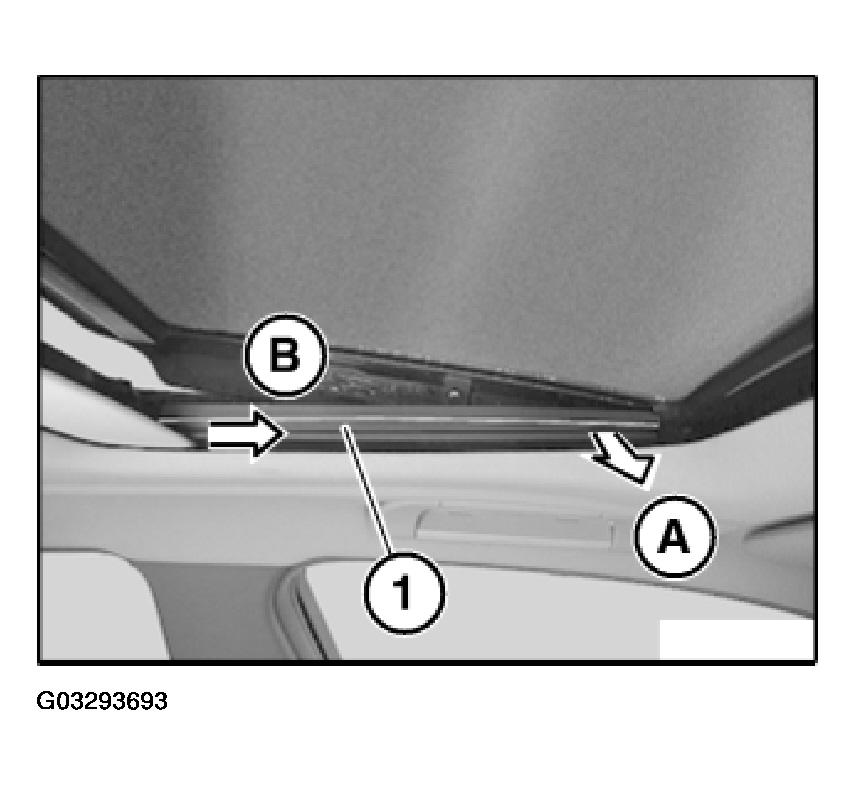

Remove gaiter (1) as follows:
A) Unclip at front.
B) Slide forwards and remove.
Installation:

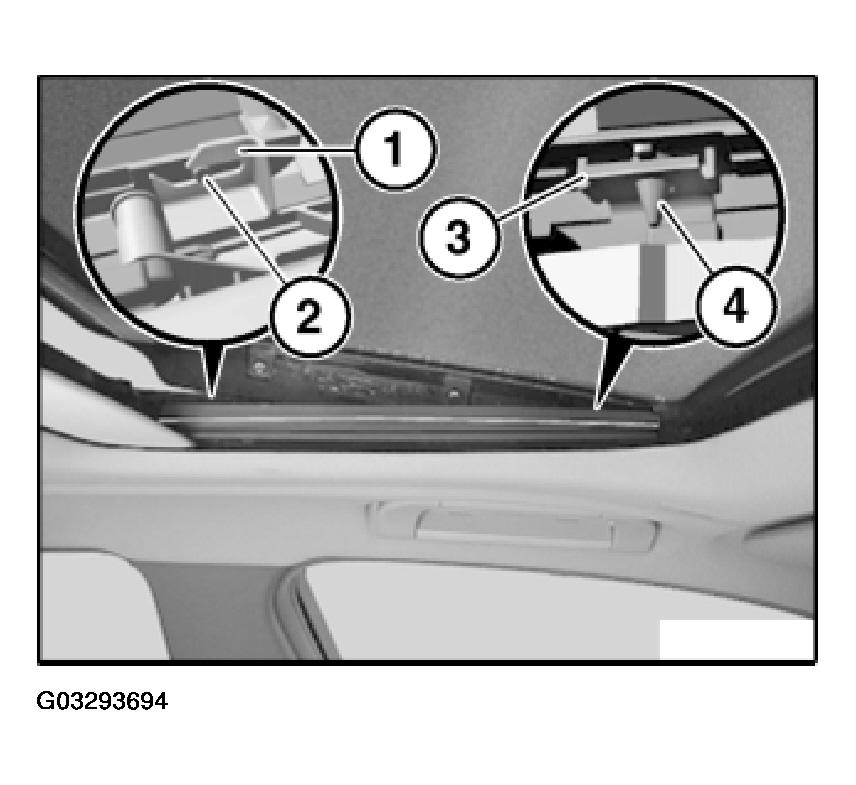

Retainer (4) and guide pin (2) must not be damaged.
Slide guide pin (2) into holder (1). Retainer (4) must engage in holder (3).
