52 25 070 Removing And Installing/Replacing Wood Trim On Rear Center Armrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear center head restraint. Refer to 52 24 388 REMOVING AND INSTALLING/REPLACING REAR MIDDLE HEAD RESTRAINT (NORMAL) .
Remove decorative strip on center armrest at rear side. Refer to 52 25 075 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON CENTER ARMREST AT REAR SIDE LEFT OR RIGHT .

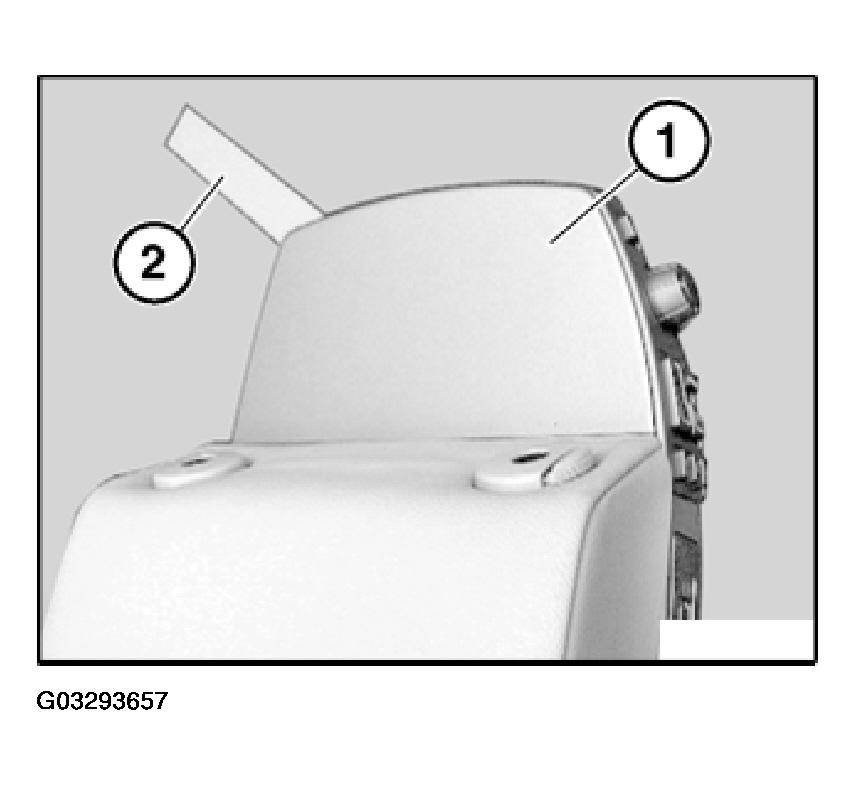

Unclip bottom trim (1) with assembly wedge (2) and remove.

Fig 1: Bottom Trim And Assembly Wedge

G03293657

Courtesy of BMW OF NORTH AMERICA, INC.

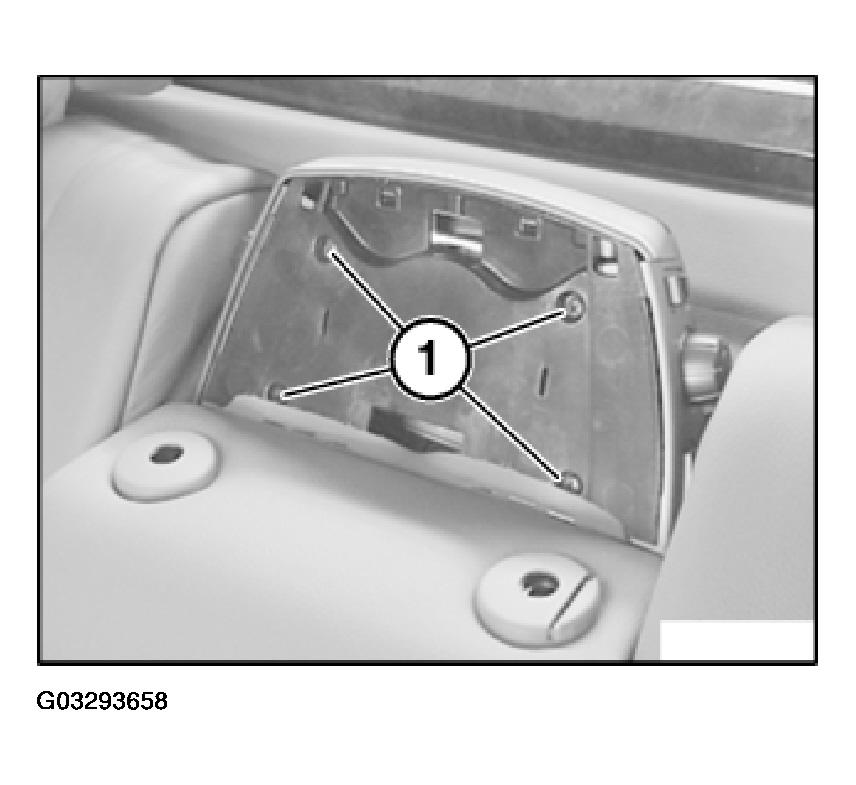

Release screws (1).

Fig 2: Retaining Screws

G03293658

Courtesy of BMW OF NORTH AMERICA, INC.

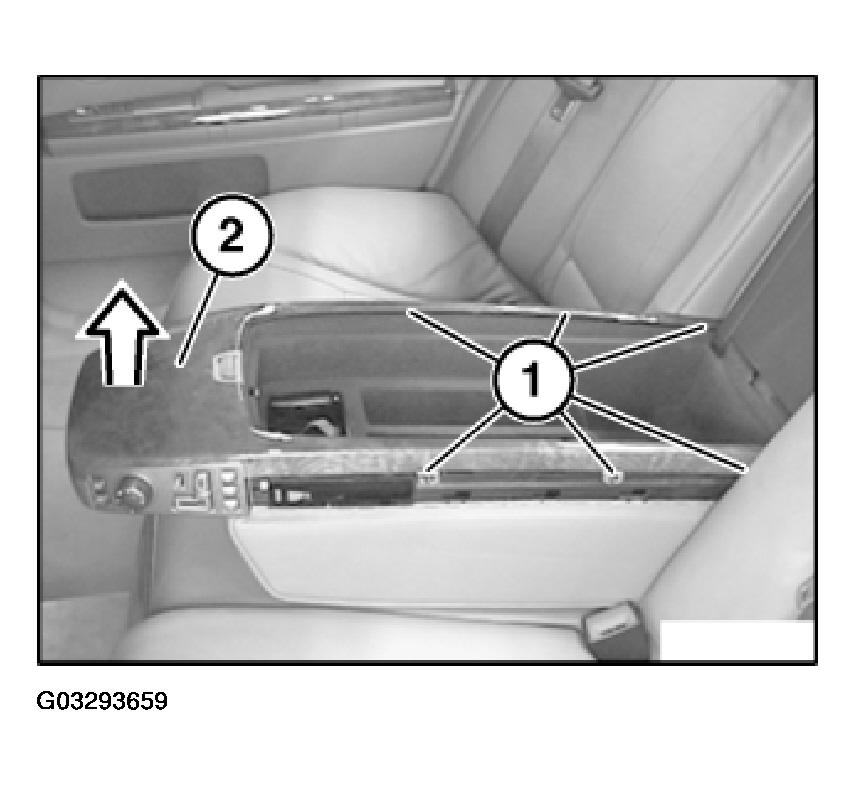

Release screws (1) and remove wood trim on center armrest (2) in direction of arrow.

Fig 3: Screws, Center Armrest And Removal Direction

G03293659

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

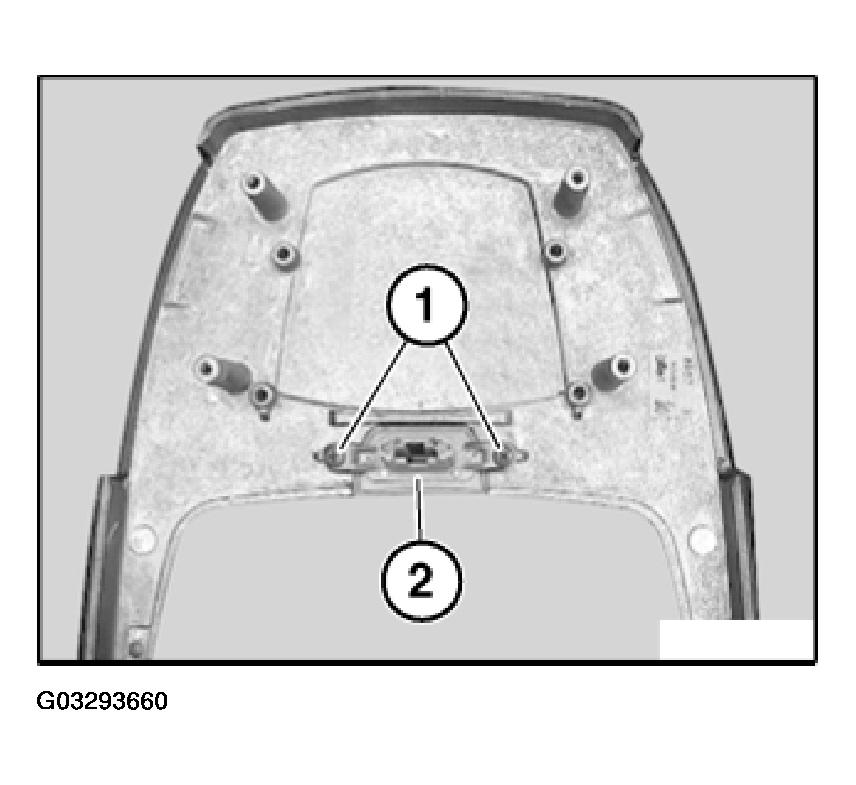

Release screw (1) and remove lock (2).

If necessary, remove rear controller .
