52 24 388 Removing And Installing/Replacing Rear Middle Head Restraint (Normal)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Move head restraint (1) upwards to maximum extent.

Press lock (2) and pull out head restraint.

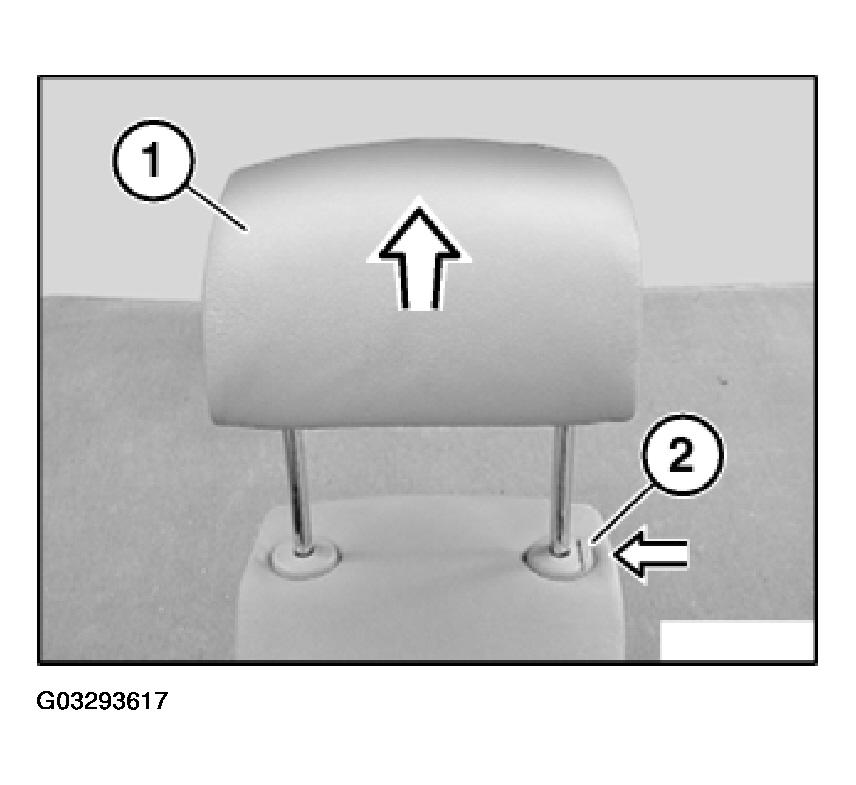

Fig 1: Head Restraint, Lock And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.
