52 25 075 Removing And Installing/Replacing Decorative Strip On Center Armrest At Rear Side Left Or Right

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear switch combination. Refer to 61 31 166 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT SWITCH COMBINATION (SEAT HEATING, SEAT A/C FOR COMFORT SEAT IN REAR COMPARTMENT) .

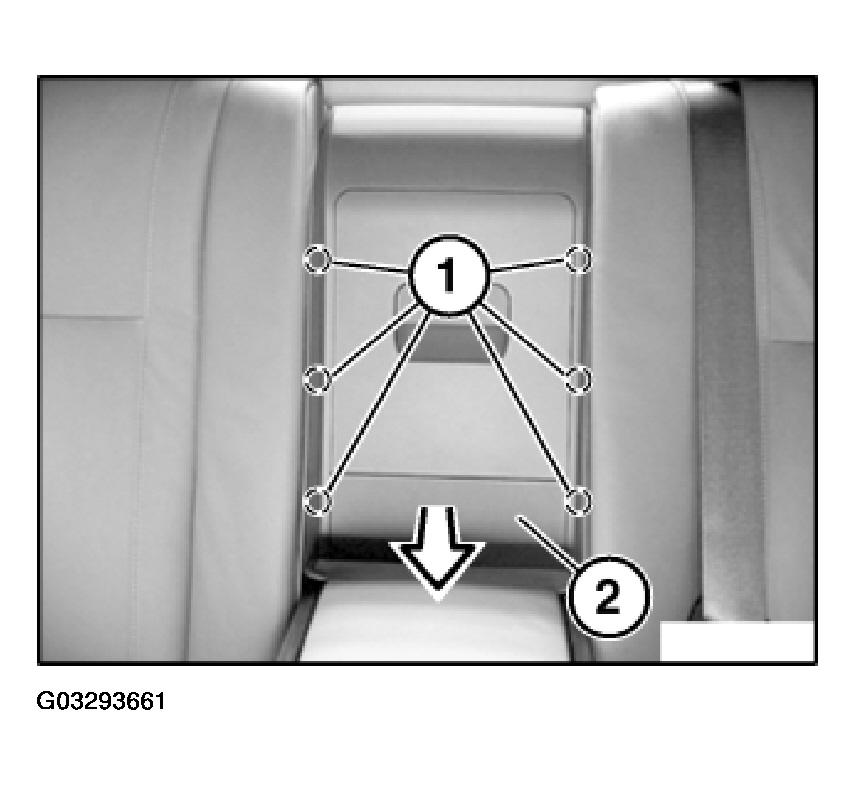

Lever out catches (1) and remove armrest trim (2) in direction of arrow.

Fig 1: Armrest Trim, Catches And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

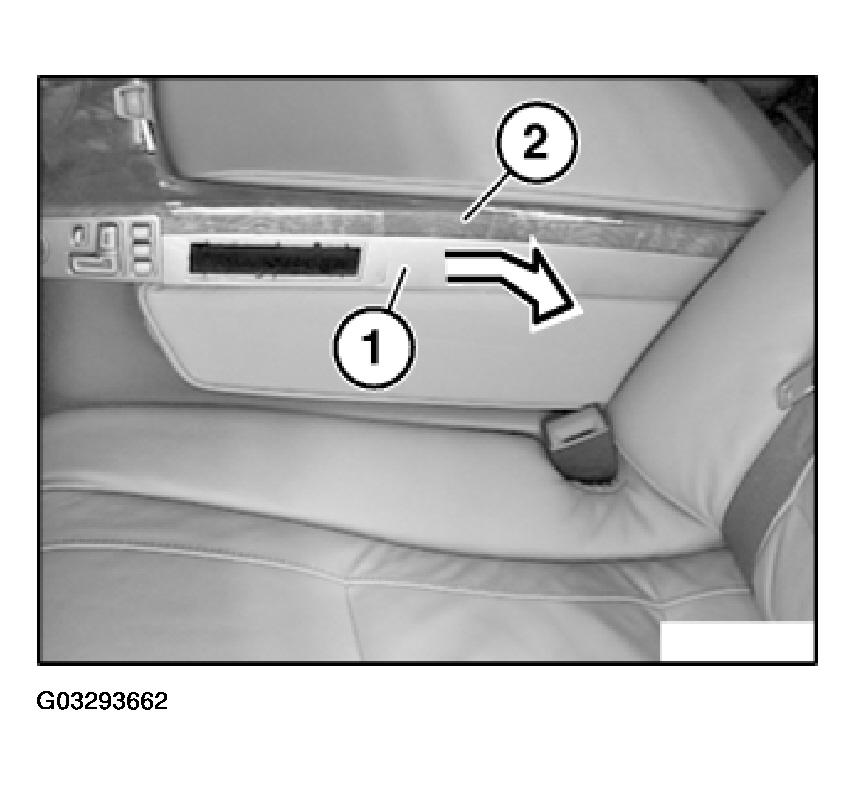

Slide back decorative trim on center armrest at rear side (1) and remove in direction of arrow from center armrest (2).

Installation:

Make sure all guides of decorative trim are correctly engaged on center armrest at rear side (1).

Fig 2: Center Armrest, Rear Side And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
