52 24 380 Removing And Installing/Replacing Rear Left Or Right Head Restraint Mount (Normal)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear seat backrest. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .
- Remove rear head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
- Remove backrest cover for rear seat. Refer to 52 24 410 REPLACING BACKREST COVER (NORMAL) FOR LEFT OR RIGHT REAR SEAT .

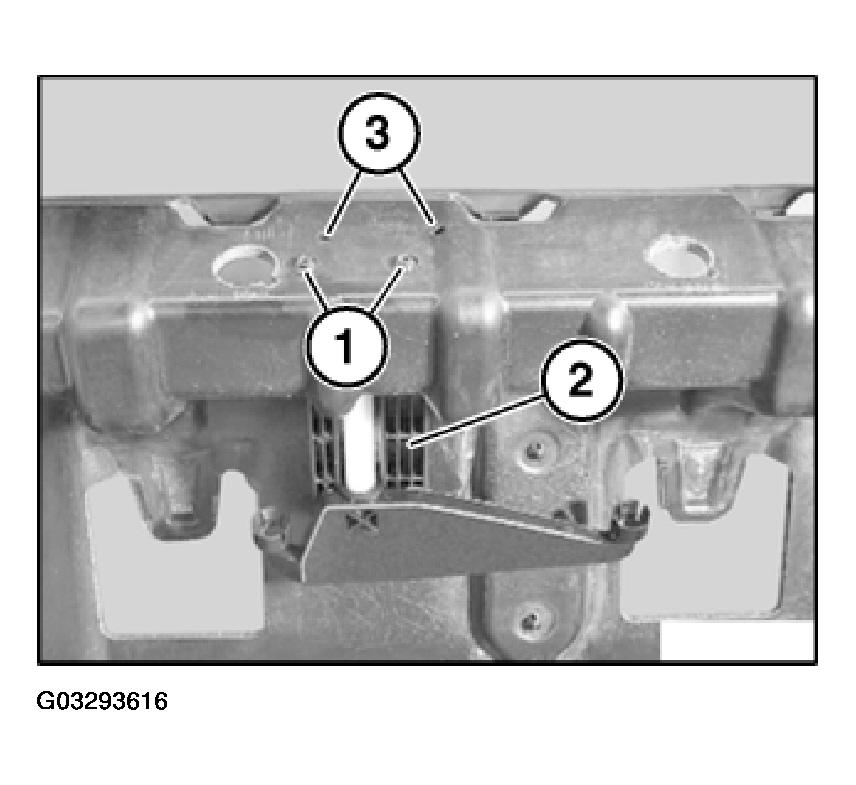

Release screws (1) and feed out head restraint mounting (2) towards bottom.
Installation:
Guide pins of head restraint mount must engage in openings (3) in backrest frame.
