52 17 034 Removing And Installing/Replacing Shaft For Head Restraint Adjustment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
- Remove both rear panels. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .
- Remove inner cover. Refer to 52 17 041 REMOVING AND INSTALLING/REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT (COMFORT) .
- Remove active head restraint support. Refer to 52 17 380 REMOVING AND INSTALLING/REPLACING HEAD RESTRAINT MOUNT ON LEFT OR RIGHT FRONT SEAT (COMFORT) .

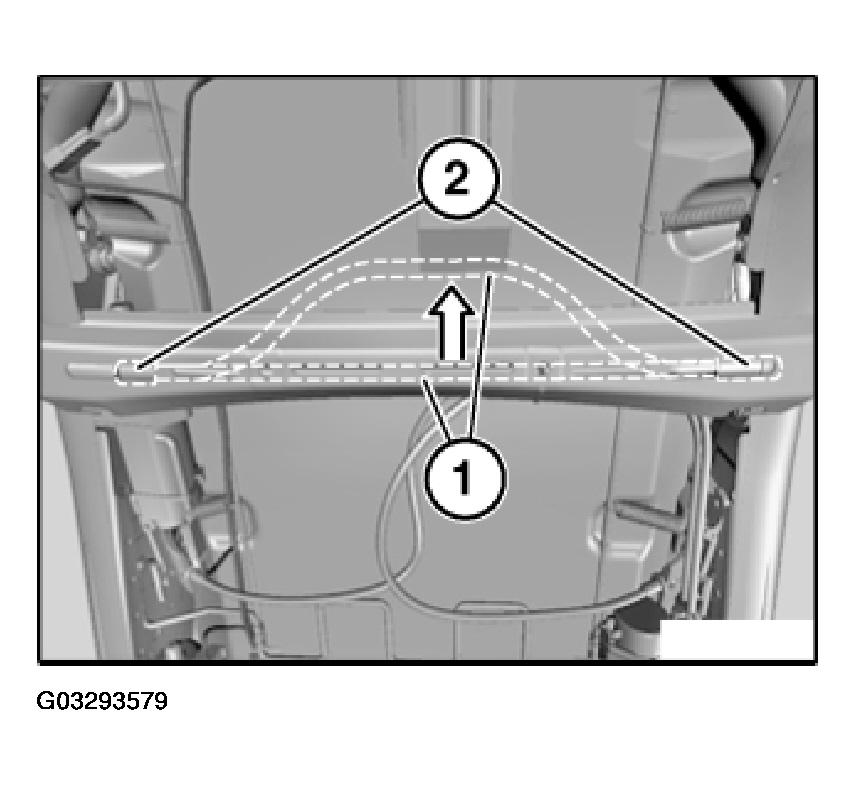

Bend shaft (1) in direction of arrow.
Pull shaft (1) out of gear (2) and remove.
