52 17 380 Removing And Installing/Replacing Head Restraint Mount On Left Or Right Front Seat (Comfort)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove head restraint. Refer to 52 17 390 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT (COMFORT) .
Remove both rear panels on front seat backrest. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

Detach retaining points (1).

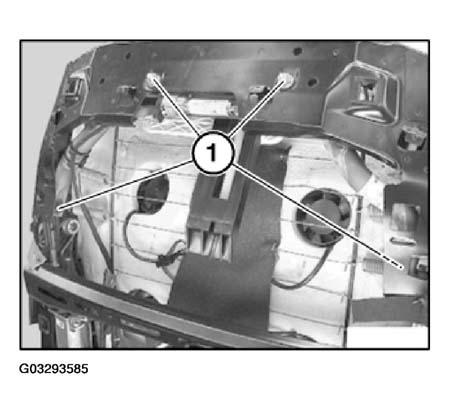

Fig 1: Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable clip (1).

Disconnect plug connections (2).

Feed out AKS carrier (3) towards bottom.

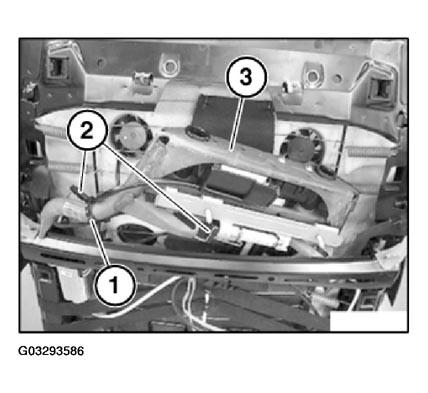

Fig 2: Plug Connections, Cable Clip And AKS Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Guide pins (2) of head restraint mount must engage in openings on AKS carrier.

Feed out head restraint mount (3) sideways.

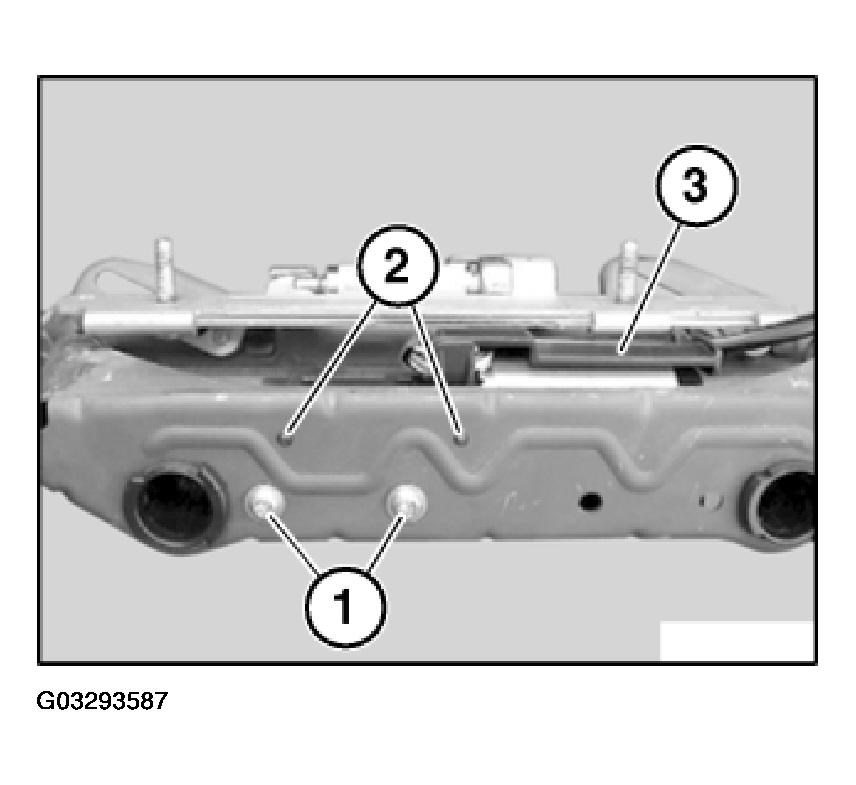

Fig 3: Guide Pins, Screws And Head Restraint Mount

Courtesy of BMW OF NORTH AMERICA, INC.
