52 14 405 Replacing Backrest Cover For Front Left Or Right Seat (Normal/Electric)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS and MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317
52 0 050

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC) and 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .
Remove inner cover on front seat. Refer to 52 14 041 REMOVING AND INSTALLING INNER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

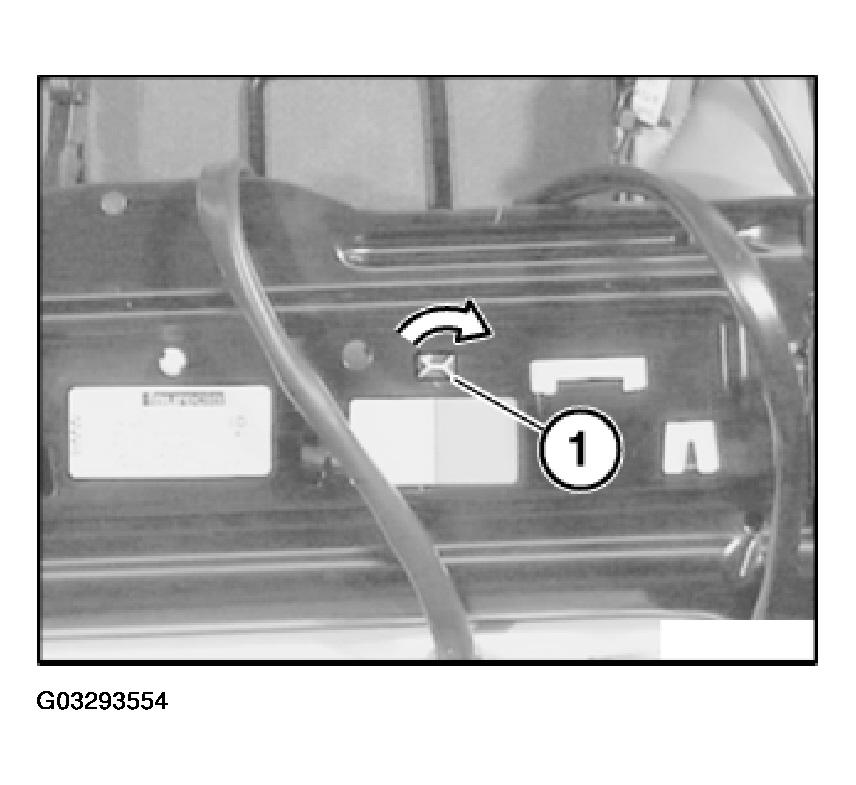

Detach plug connection (1) by twisting from backrest frame.

Disconnect plug-in connection.

Fig 1: Plug-In Connection And Removal Direction

G03293554

Courtesy of BMW OF NORTH AMERICA, INC.

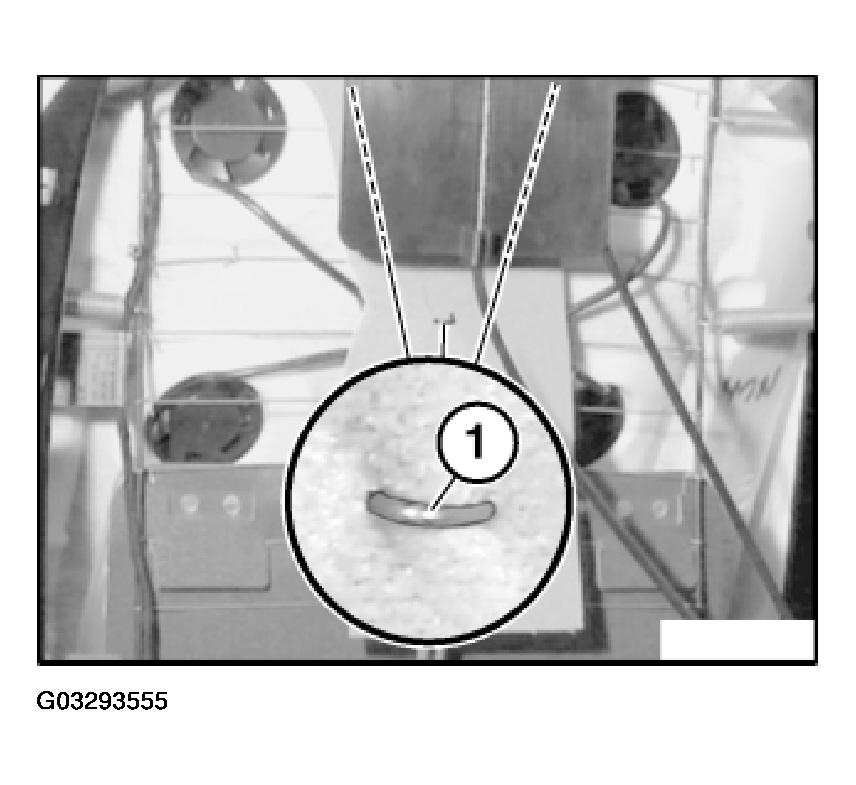

Release all retainers (1) on cover.

Remove cover.

Fig 2: Cover Retainers

G03293555

Courtesy of BMW OF NORTH AMERICA, INC.

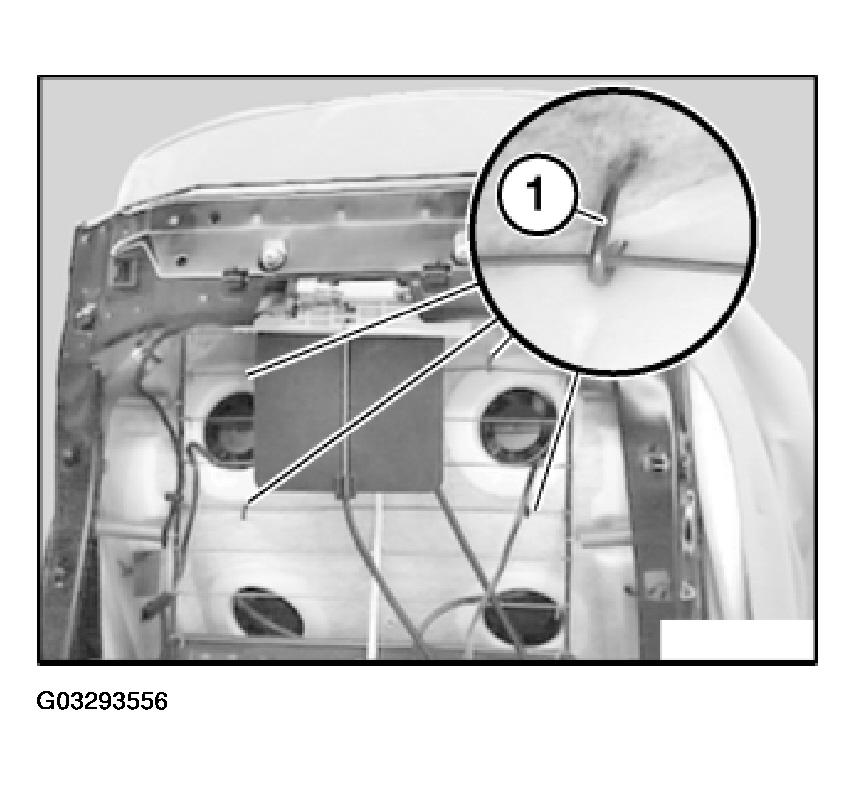

Release all retainers (1).

Fig 3: Retainers

G03293556

Courtesy of BMW OF NORTH AMERICA, INC.

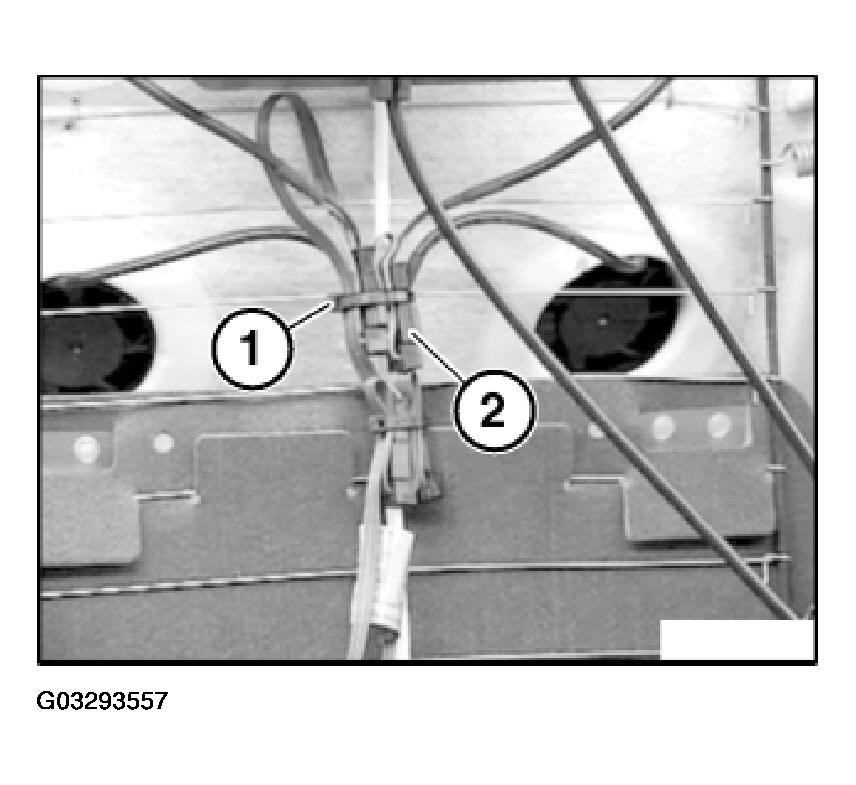

Detach cable tie (1) an wiring harness for fan.

Disconnect plug connections (2).

Fig 4: Cable Tie And Plug Connections

G03293557

Courtesy of BMW OF NORTH AMERICA, INC.

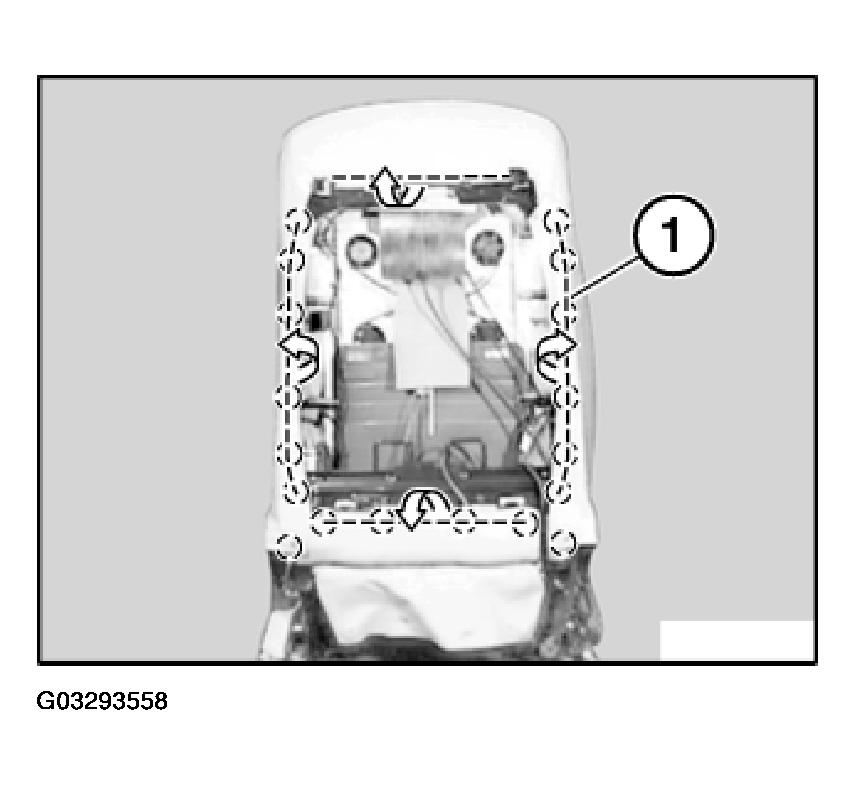

Unhook backrest cover at retaining points in area (1).

Fig 5: Backrest Cover Retaining Points Area And Removal Directions

G03293558

Courtesy of BMW OF NORTH AMERICA, INC.

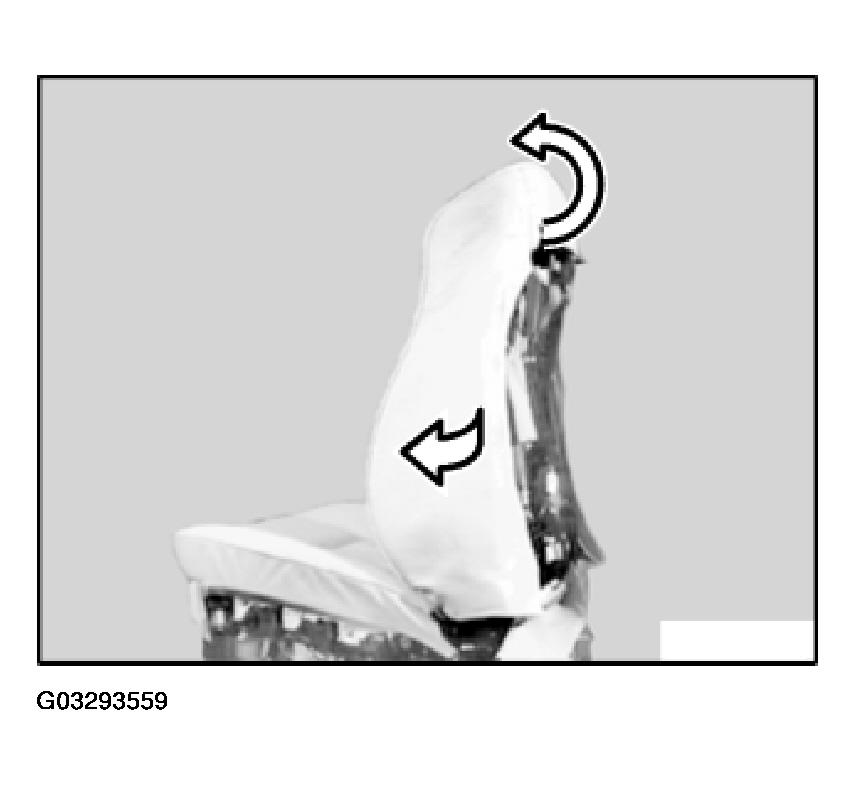

Remove backrest cover with padding from backrest frame towards front.

Fig 6: Removing Backrest Cover With Padding

G03293559

Courtesy of BMW OF NORTH AMERICA, INC.

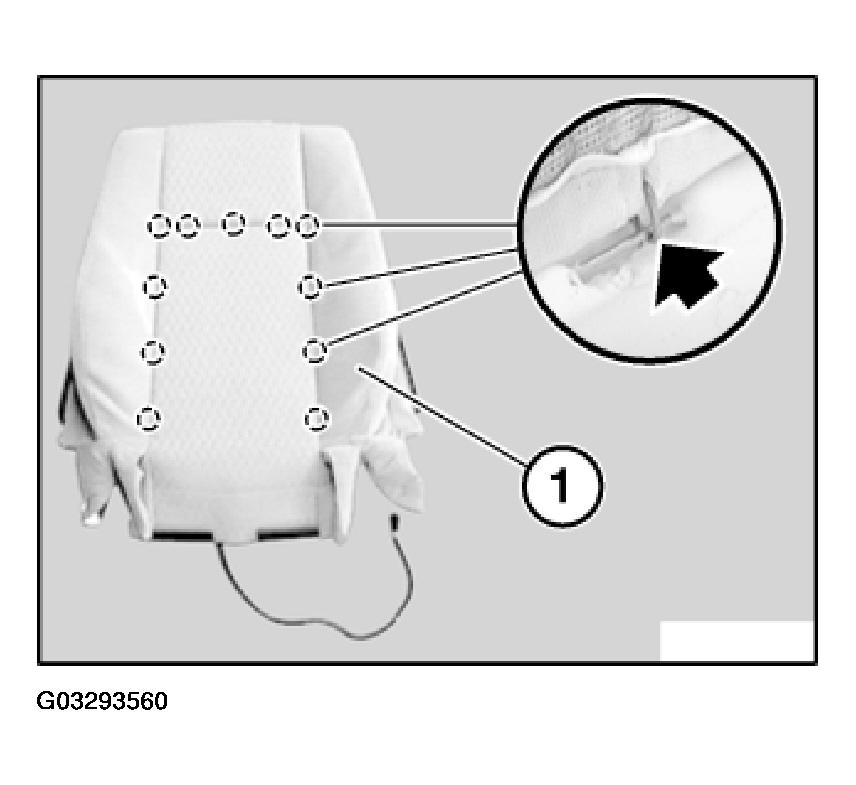

Release all retainers.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 7: Backrest Cover Clips

G03293560

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

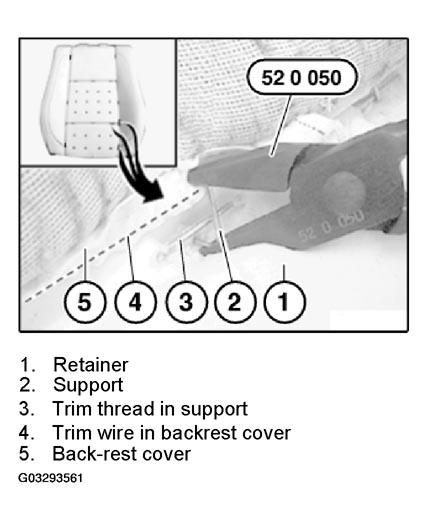

Bend new retainer (2) closed with pliers 52 0 050.

Fig 8: Closing Retainer With Pliers

G03293561

Courtesy of BMW OF NORTH AMERICA, INC.

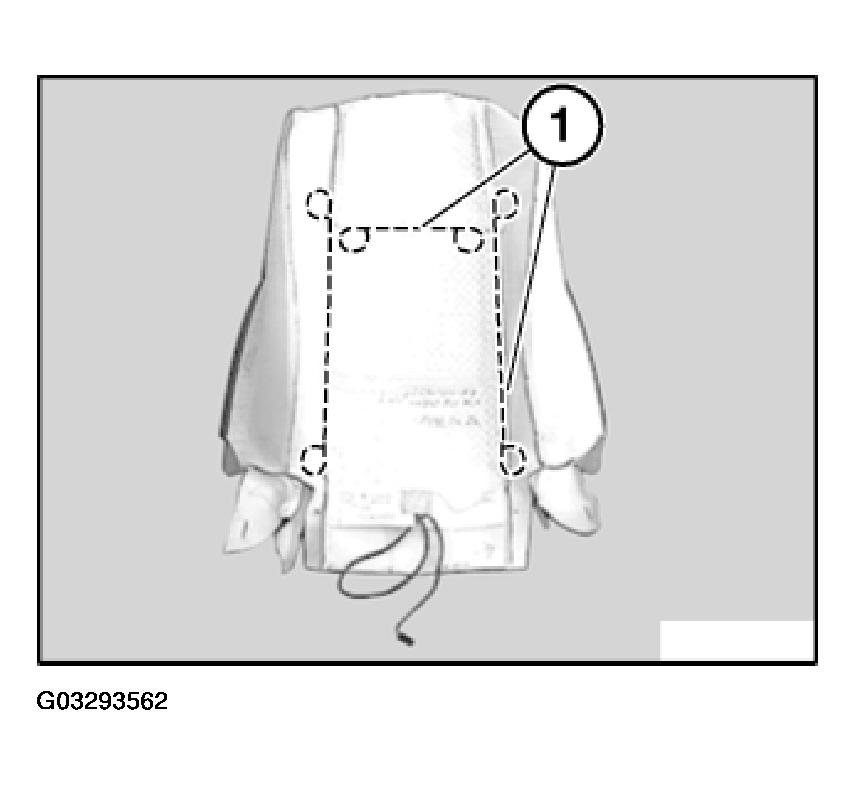

Pull trim threads (1) out of backrest cover.

Installation:

Slide trim threads (1) into new backrest cover; if necessary, cut new part.

Fig 9: Backrest Cover Trim Threads

G03293562

Courtesy of BMW OF NORTH AMERICA, INC.

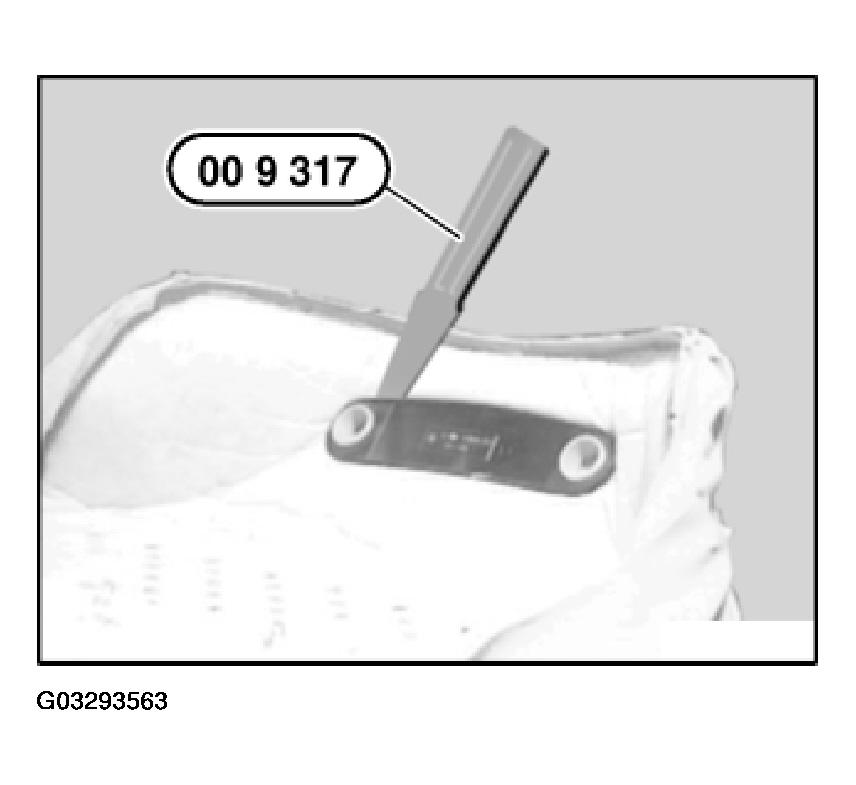

Lever out locking strip of head restraint guide with trim panel wedge 00 9 317.

Installation:

Mount straight front face of head restraint guide towards front.

Fig 10: Special Tool (00 9 317)

G03293563

Courtesy of BMW OF NORTH AMERICA, INC.
