52 14 380 Removing And Installing/Replacing Head Restraint Mount On Left Or Right Front Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC) and 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

Press catches (1).

Slide component (2) in direction of arrow and remove.

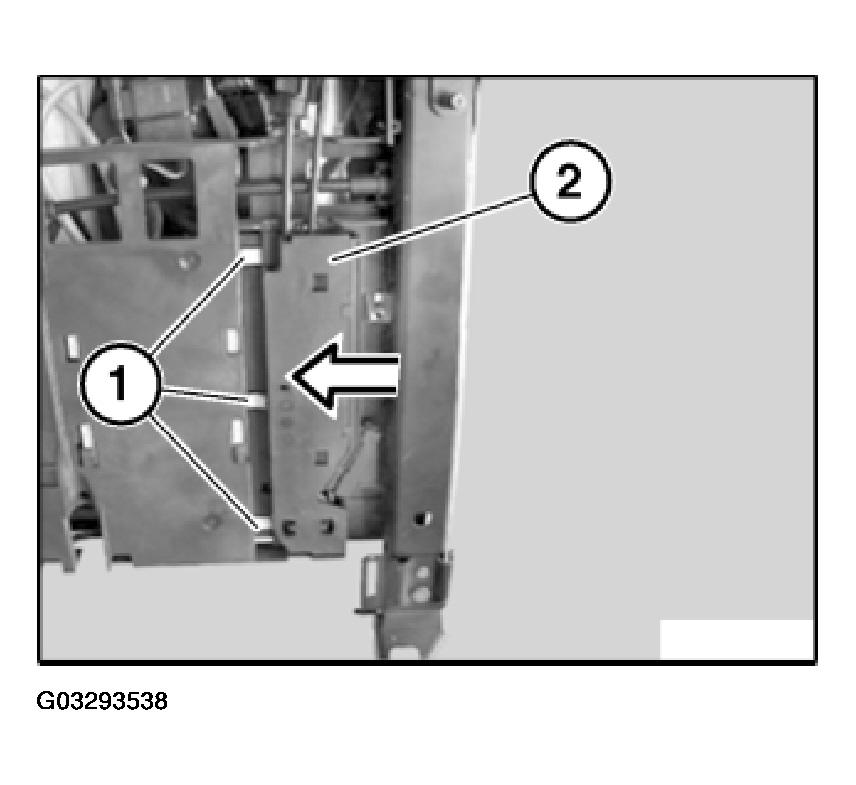

Fig 1: Head Restraint Component, Catches And Removal Direction

G03293538

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook backrest cover at top.

Unhook cables (1) from component (2).

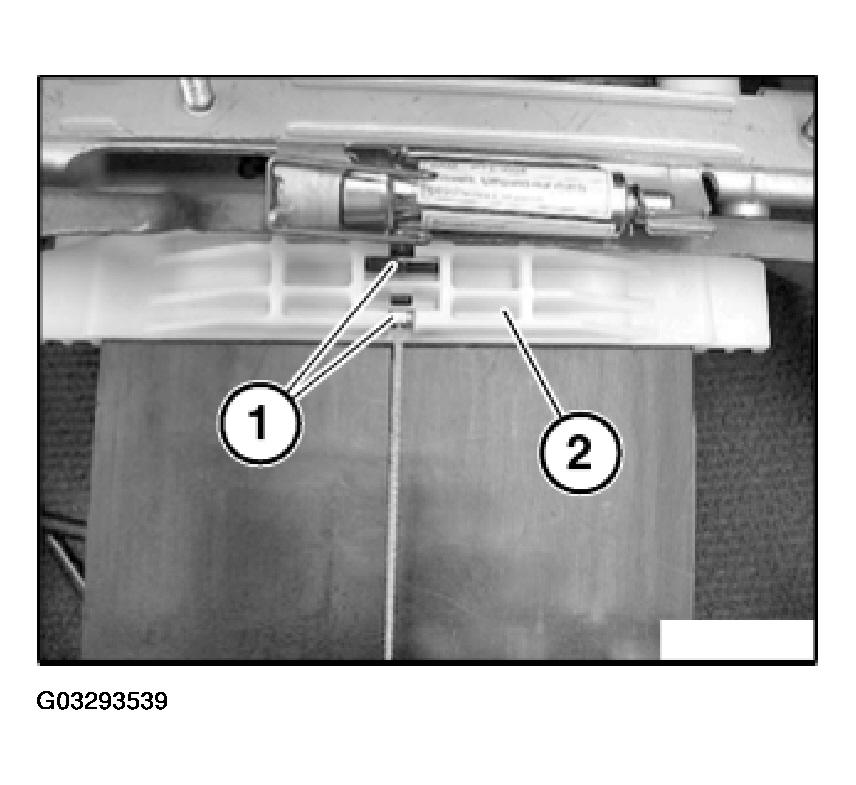

Fig 2: Cables And Component

G03293539

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining points (1) on backrest frame.

Feed out cables.

NOTE: Upper cable must be removed from idler pulley.

Installation:

Make sure cables are correctly laid.

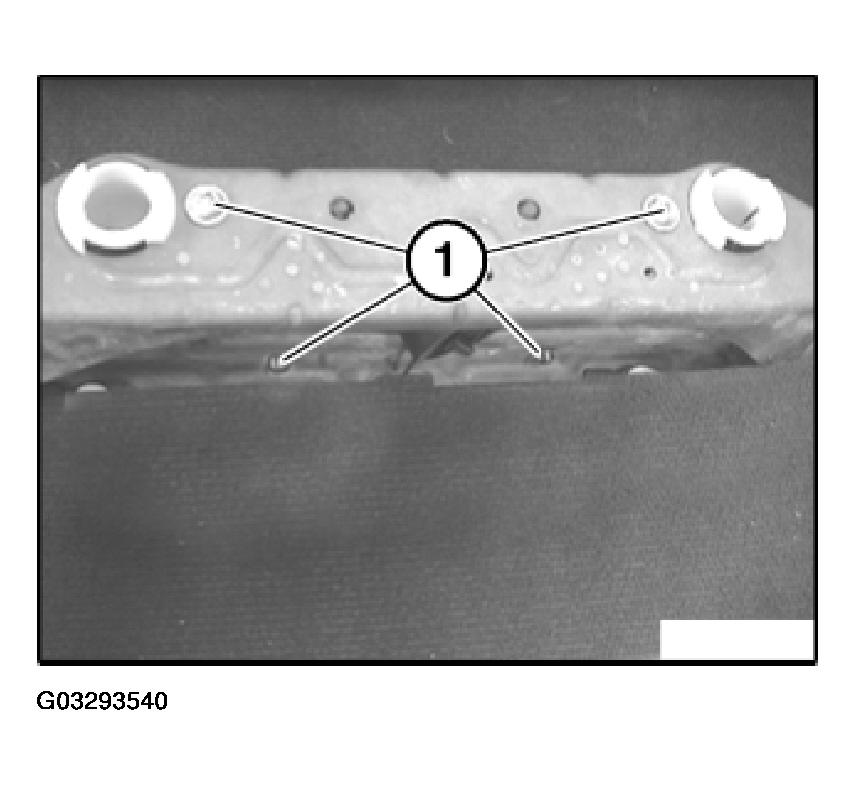

Fig 3: Locating Retaining Points On Backrest Frame

G03293540

Courtesy of BMW OF NORTH AMERICA, INC.

Version - Head Restraint With AKS (Active Head Restraint):

Detach retaining points (1).

Remove AKS carrier with height adjustment element.

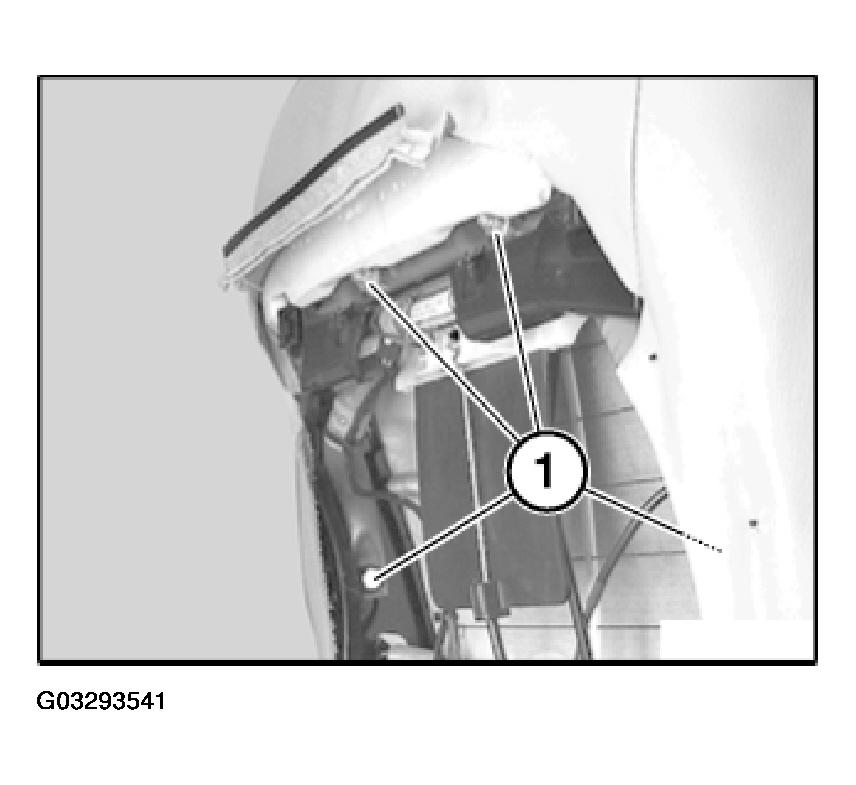

Fig 4: Carrier Retaining Points

G03293541

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining points (1) AKS carrier.

Feed out cables.

NOTE: Upper cable must be removed from idler pulley.

Installation:

Make sure cables are correctly laid.

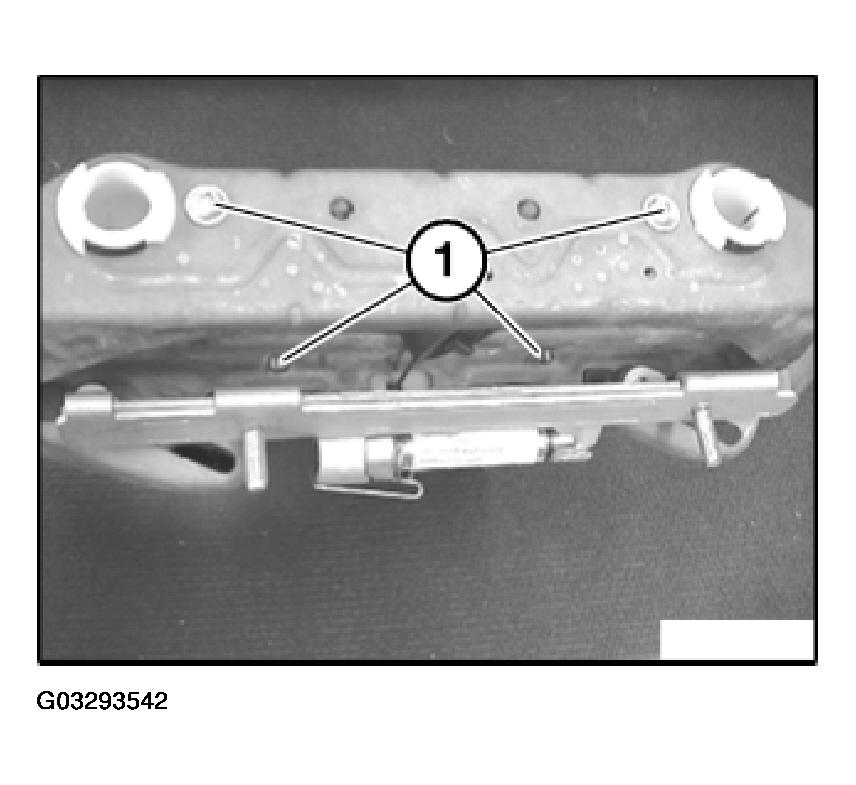

Fig 5: AKS Carrier

G03293542

Courtesy of BMW OF NORTH AMERICA, INC.
