52 14 060 Removing And Installing/Replacing Valve Housing For Left Or Right Front Lumbar Support (Normal/Electric)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC) and 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

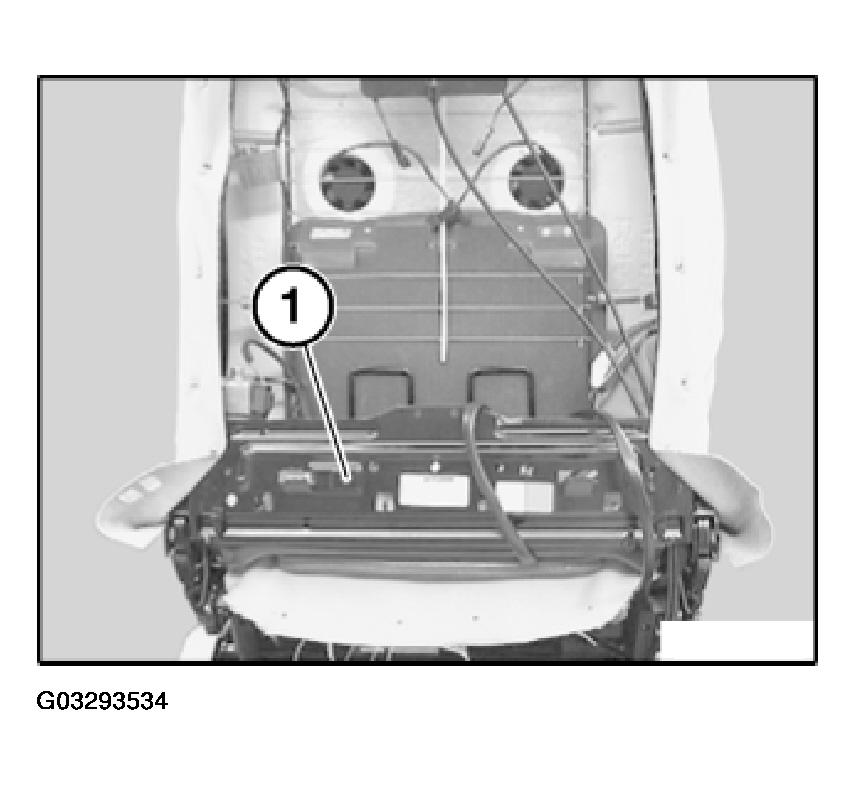

Release retaining screw (1).

Disconnect electrical plug connection.

Fig 1: Valve Housing Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

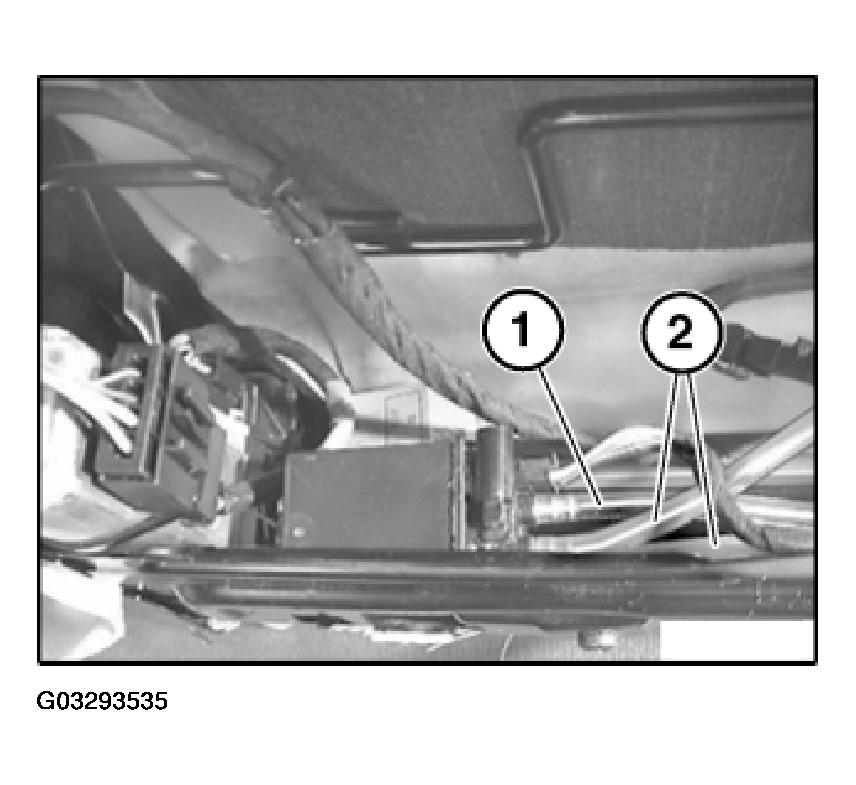

Disconnect air hoses (1) and (2).

Installation:

Make sure air hoses (2) are correctly connected to valve block (color coding: red/blue).

Housing on valve block must not be unclipped (leakage). If necessary, clip housing together.

Fig 2: Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.
