52 14 020 Removing And Installing/Replacing Seat Frame On Left Or Right Front Seat (Normal/Electric)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove backrest frame. Refer to 52 14 030 REMOVING AND INSTALLING/REPLACING BACKREST FRAME ON LEFT OR RIGHT FRONT SEAT .
Remove both seat rails on front seat. Refer to 52 14 010 REMOVING AND INSTALLING/REPLACING BOTH SEAT RAILS ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove seat cover for front seat. Refer to 52 14 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Release fastening elements (1) on left and right.

Remove component (2) on left and right.

Remove complete seat wiring harness.

If necessary, remove drive for active seat. Refer to 52 14 023 REMOVING AND INSTALLING/REPLACING DRIVE FOR LEFT OR RIGHT ACTIVE SEAT .

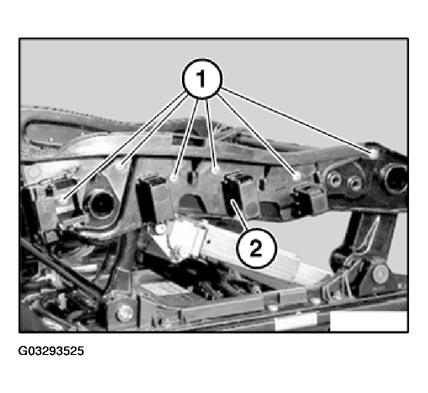

Fig 1: View Of Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When replacing backrest or seat frame, break off centring hooks (1) from seat frame.

Fig 2: Centring Hooks

NOTE: The new seat frame part contains all the drives.
