52 14 023 Removing And Installing/Replacing Drive For Left Or Right Active Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove seat cover with padding for front seat. Refer to 52 14 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Release screws (1), tip seat towards rear.

Installation:

Tightening torque, refer to 52 10 6AZ in SEATS - TIGHTENING TORQUES .

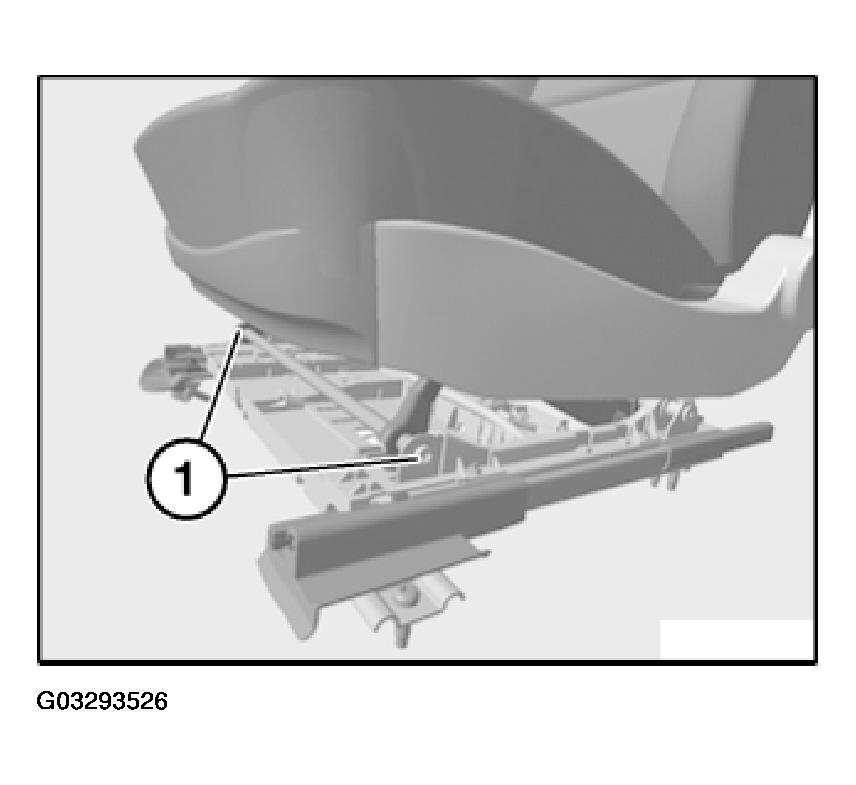

Fig 1: Seat Retaining Screws

G03293526

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip hydraulic pockets (1) with supports on left and right from flex mat.

NOTE: If necessary, release clips (2). Remove hydraulic pockets (1) from supports (3).

Feed hydraulic pockets (1) through flex mat towards bottom.

Detach retaining points for drive in area (4).

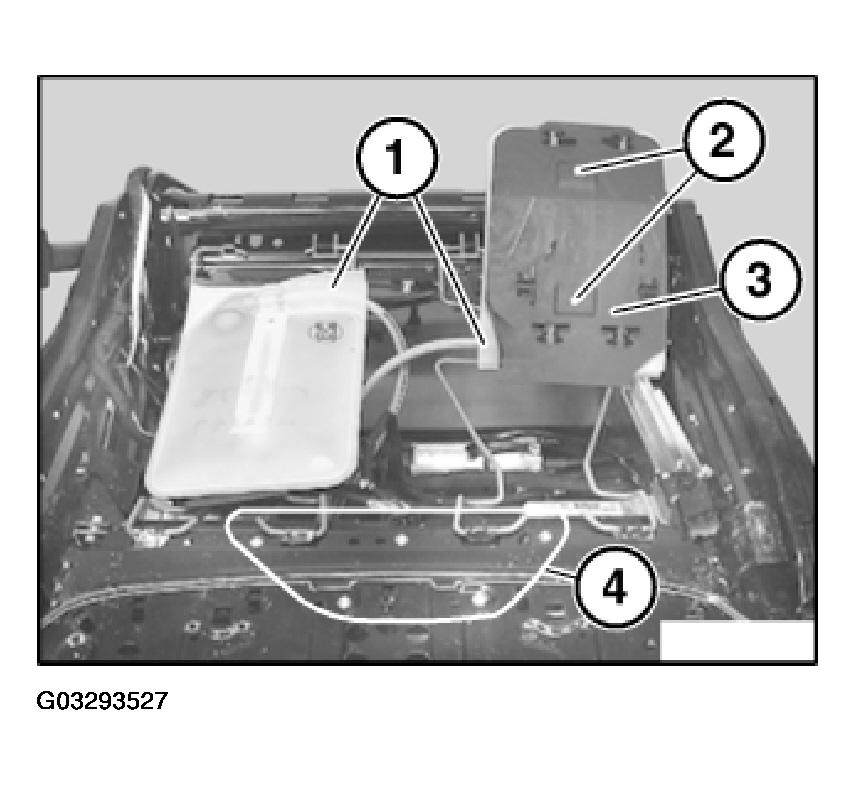

Fig 2: Hydraulic Pockets, Supports, Slips And Drive Retaining Point Area

G03293527

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Remove drive (1).

NOTE: Drive and hydraulic pockets form a single unit and can only be replaced completely.

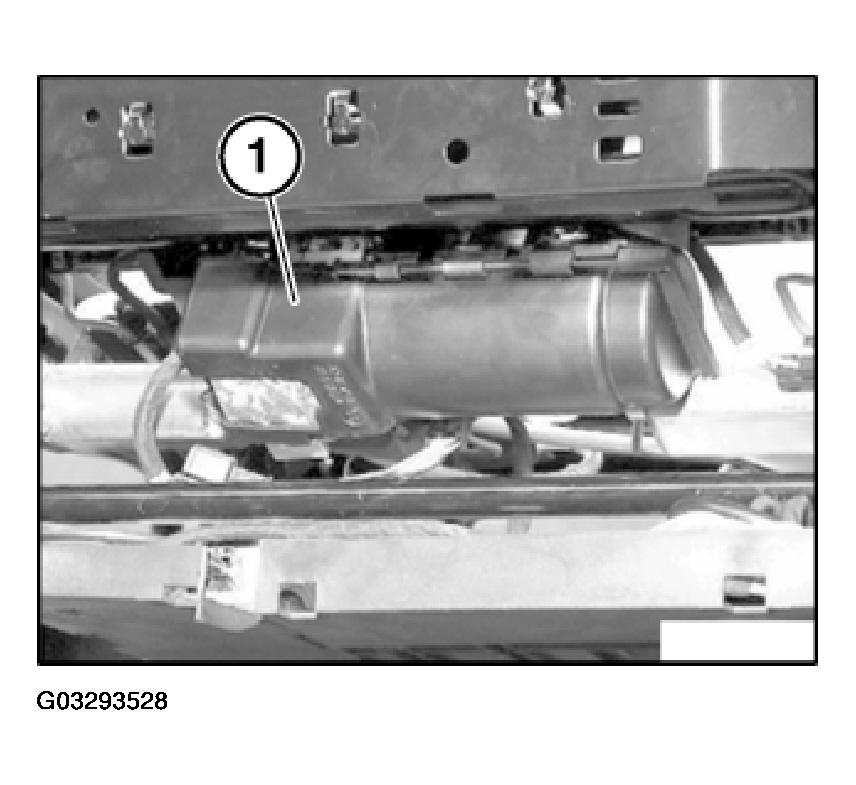

Fig 3: Seat Drive

G03293528

Courtesy of BMW OF NORTH AMERICA, INC.
