52 14 010 Removing And Installing/Replacing Both Seat Rails On Left Or Right Front Seat (Normal/Electric)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
- Remove lower strap (belt tensioner). Refer to 72 11 041 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT LOWER BELT FITTING (SEAT BELT TENSIONER)
- Remove drive unit for longitudinal seat adjustment. Refer to 67 31 500 REMOVING AND INSTALLING/REPLACING DRIVE UNIT FOR LONGITUDINAL SEAT ADJUSTMENT .
WARNING:
Read and comply with safety regulations
for handling airbag modules and pyrotechnical belt tensioners. Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.
Switch off ignition!
Disconnect all plug connections on seat and airbag modules.
Installation:
Ensure correct connection; mark plug connections if necessary.

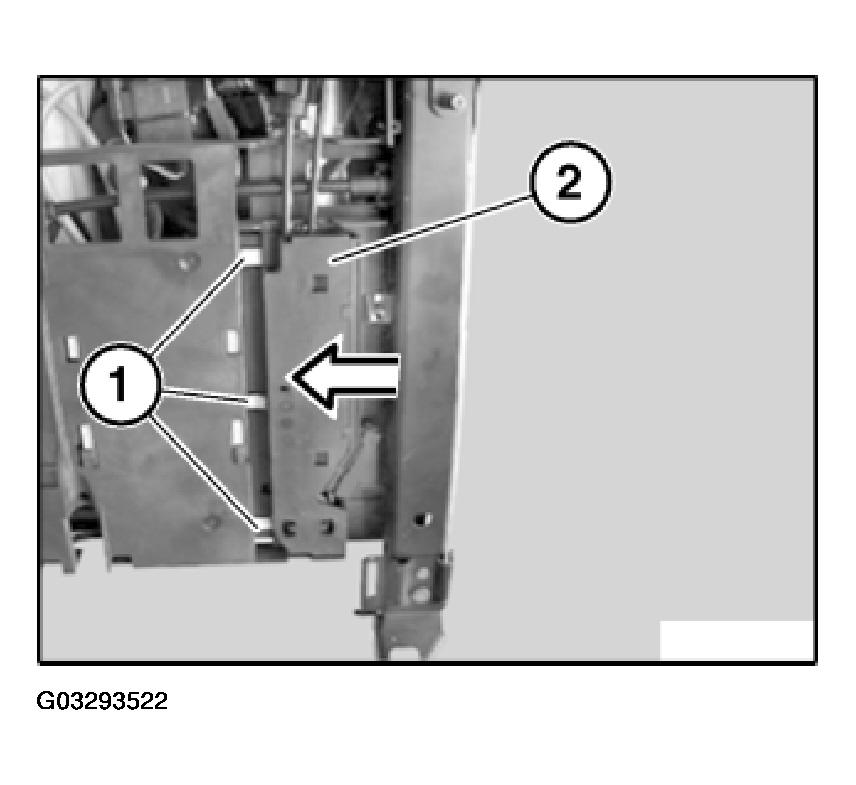

Press catches (1).
Slide adjusting unit (2) for active head restraint adjustment in direction of arrow and remove.

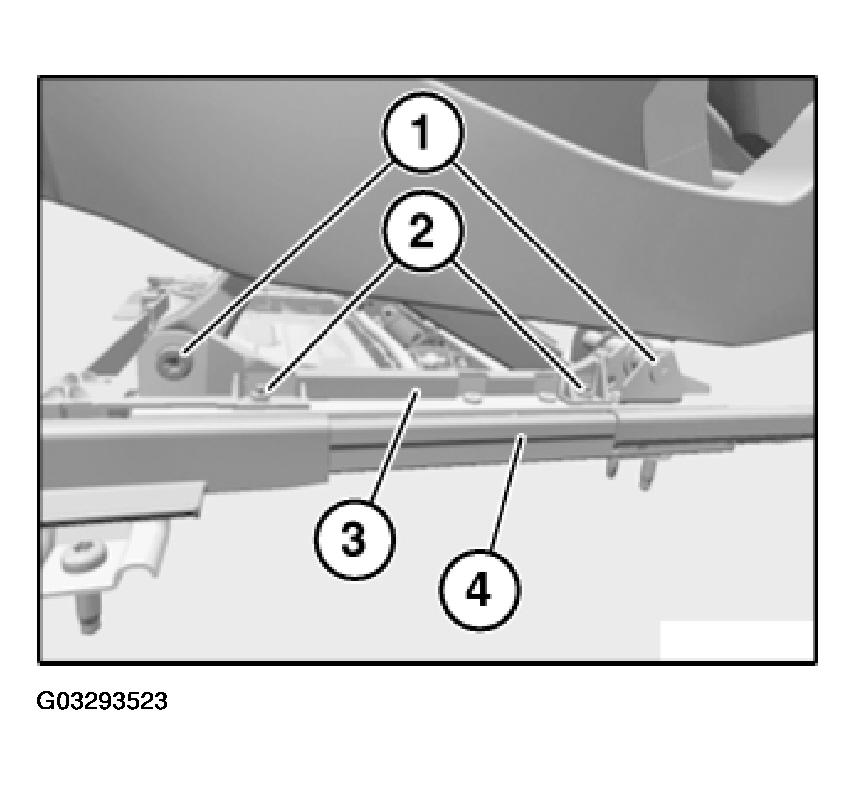

Release left and right screws (1).
Tightening torque, refer to 52 10 6AZ in SEATS - TIGHTENING TORQUES .
Remove seat rails (4) with carrier plate (3).
Release fastening elements (2) on left and right.
Remove carrier plate (3).

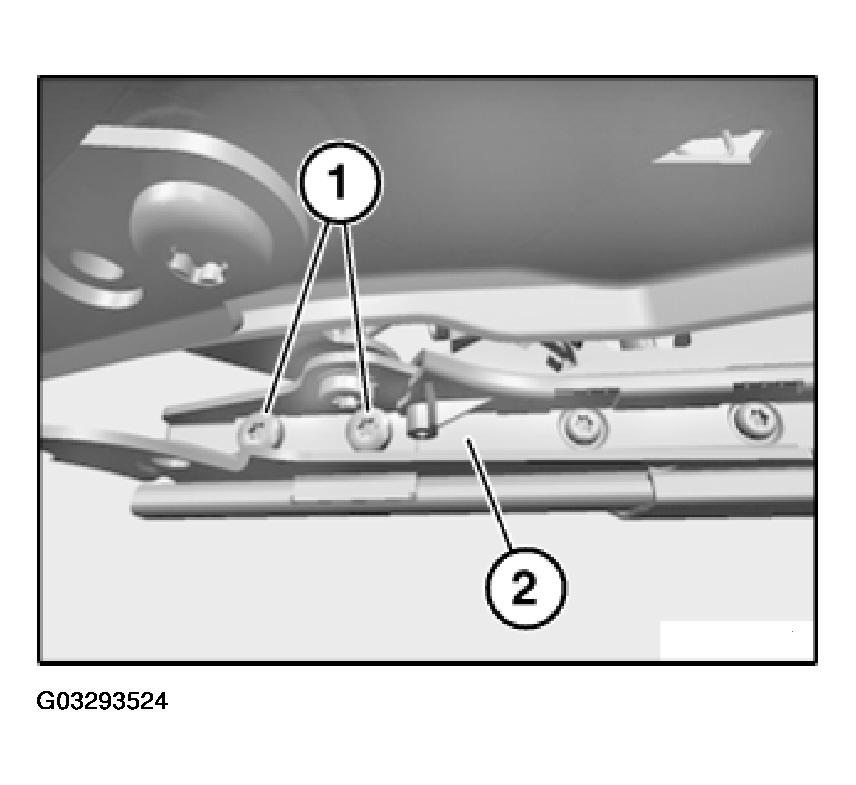

Release screws (1).
Remove holder (2) for lower strap (belt tensioner).
