51 24... Notes And Instructions On Automatic Rear Lid Actuation (From 02/2003) (Electrohydraulic-Fully Automatic)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to conditions of absolute cleanliness when working on the opened hydraulic system. Even the smallest of dirt particles in the hydraulic system can cause malfunctions.
Function Description And Check:

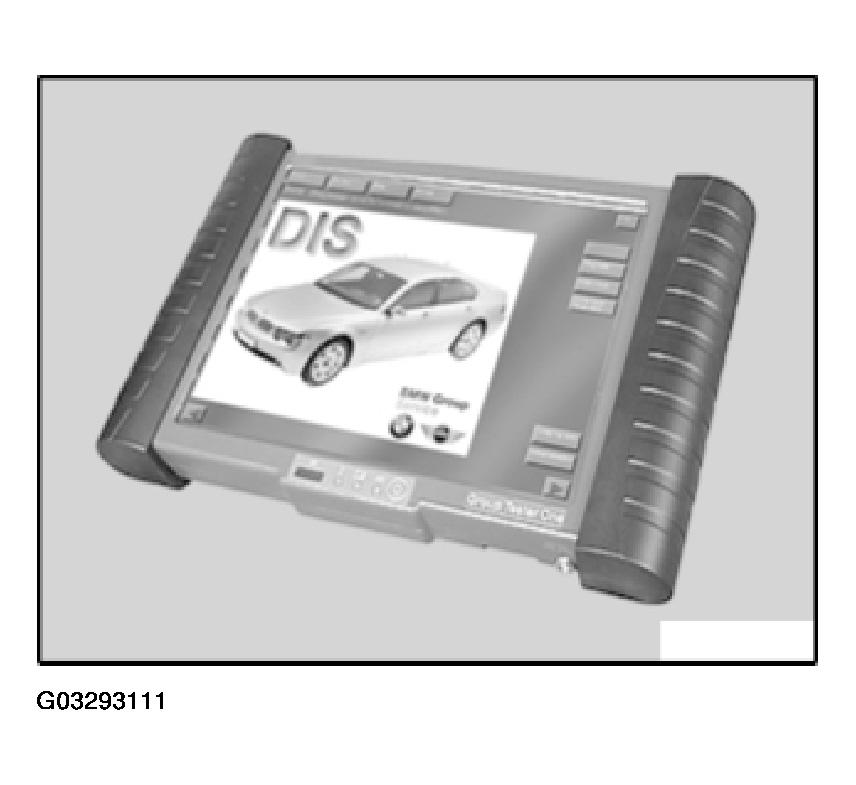

- Refer to DIS (Diagnosis and Information System).
Installation Location Of Individual Components:

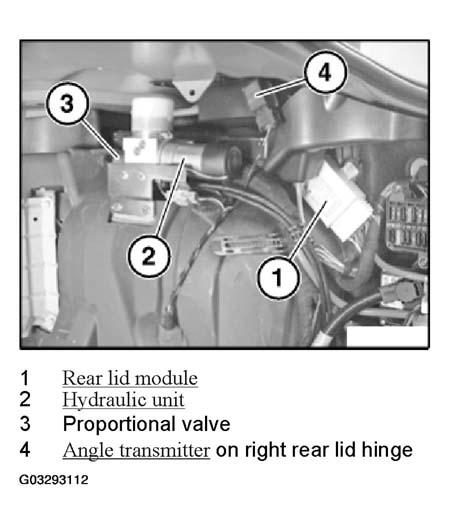

In Luggage Compartment On Right Side:
In luggage compartment on left side:
- Hydraulic cylinder on left rear lid hinge. Refer to 51 24 151 REMOVING AND INSTALLING/REPLACING HYDRAULIC CYLINDER FOR REAR LID (ELECTROHYDRAULIC-FULLY AUTOMATIC) .
Checking Fluid Level In Hydraulic Unit:
Necessary Preliminary Tasks:
- Remove right luggage compartment wheel arch trim. Refer to 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
Test Requirements:
Open rear lid (motor-driven) twice and close again, this bleeds the system.
Rising air bubbles must not be visible.

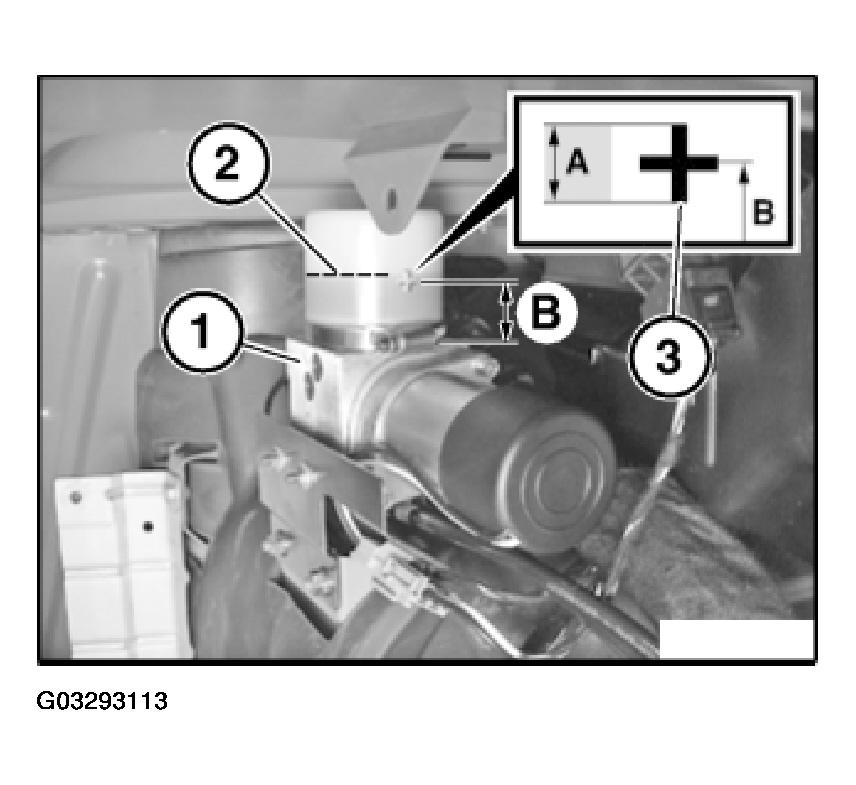

Check fluid level in installed state.
Check distance (B) from middle of marking (3) to upper edge of pump carrier (1).
B = 28+/-1 mm.
When rear lid is fully opened (cylinder retracted), fluid level (2) must be in area (A) of marking (3).
NOTE:
Fluid fill quantity (lines filled with fluid and cylinder retracted):
- Top edge of marked cross = 100 ml.
- Bottom edge of marked cross = 80 ml.
Correcting Fluid Level In Hydraulic Unit:
Operation is described in:
- Correct fluid level in hydraulic unit for rear lid actuation (electrohydraulic-fully automatic). Refer to 51 24 660 CORRECTING FLUID LEVEL IN HYDRAULIC UNIT (FROM 02/2003) FOR REAR LID ACTUATION (ELECTROHYDRAULIC-FULLY AUTOMATIC) .
