51 47 161 Removing And Installing/Replacing Right Luggage Compartment Wheel Arch Trim

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim for tail panel. Refer to 51 46 050 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PANEL AT TOP .
Remove flap in right luggage compartment wheel arch trim. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

E66 with rear A/C system only:

Remove luggage compartment partition wall. Refer to 51 47 141 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION .

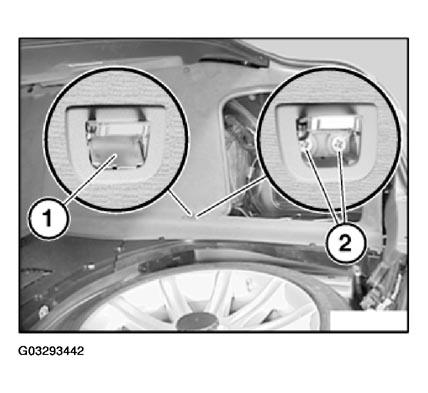

Lever out trim (1) in lashing eye at opening and remove.

Release screws (2) and remove lashing eye.

Fig 1: View Of Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.

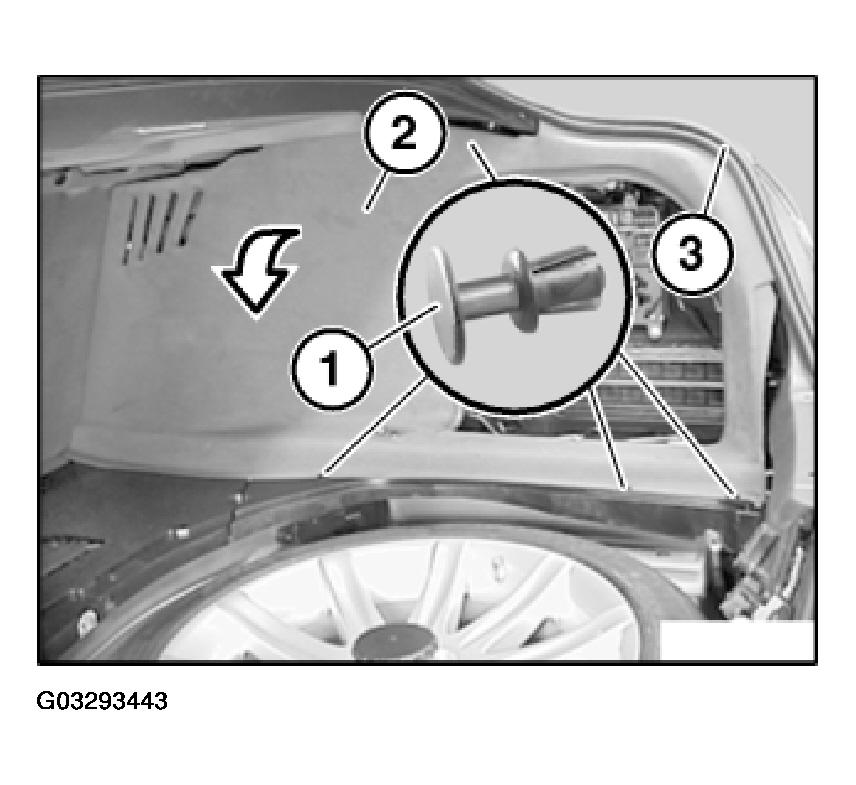

Release expansion rivets (1).

Lever out luggage compartment wheel arch trim (2) from seal (3) and remove.

Fig 2: Locating Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

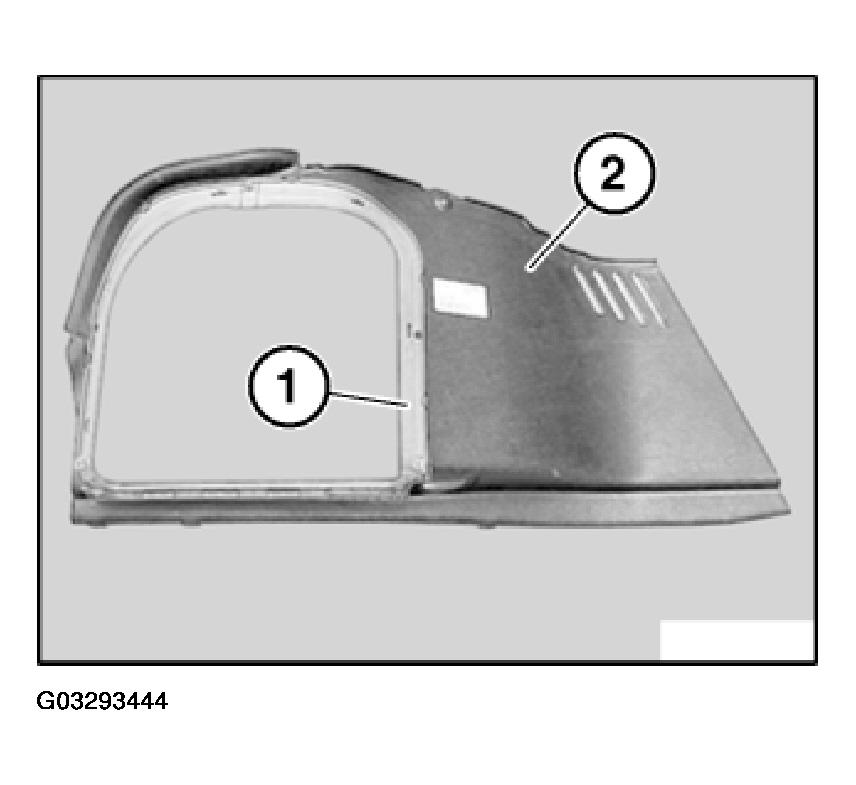

Frame (1) must be correctly clipped into place on luggage compartment wheel arch trim (2).

Fig 3: Identifying Frame On Luggage Compartment Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.
