51 13 400 Removing And Installing/Replacing Rear Center Trim (Up To 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

If necessary, remove number/license plate.
Remove trim for rear lid at bottom, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID .
Remove rear light from center of rear lid. Refer to 63 21 186 REMOVING AND INSTALLING/REPLACING REAR LIGHT (ON CENTER OF REAR LID) .

NOTE: Detaching rear center trim is shown on the left side; proceed in same way for detaching on the right side.

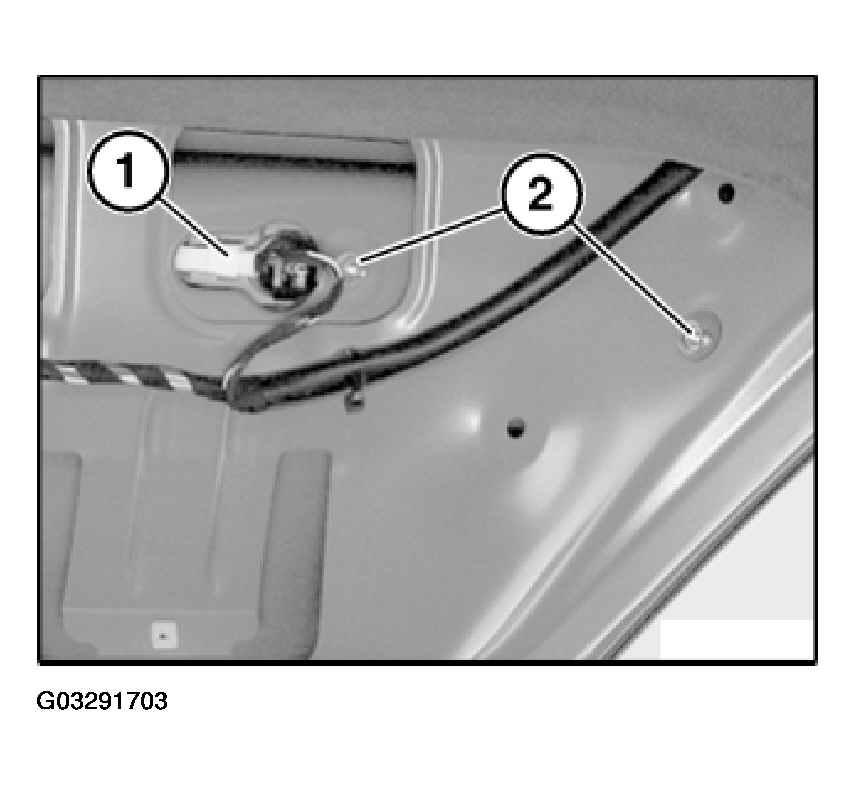

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque, refer to 51 13 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

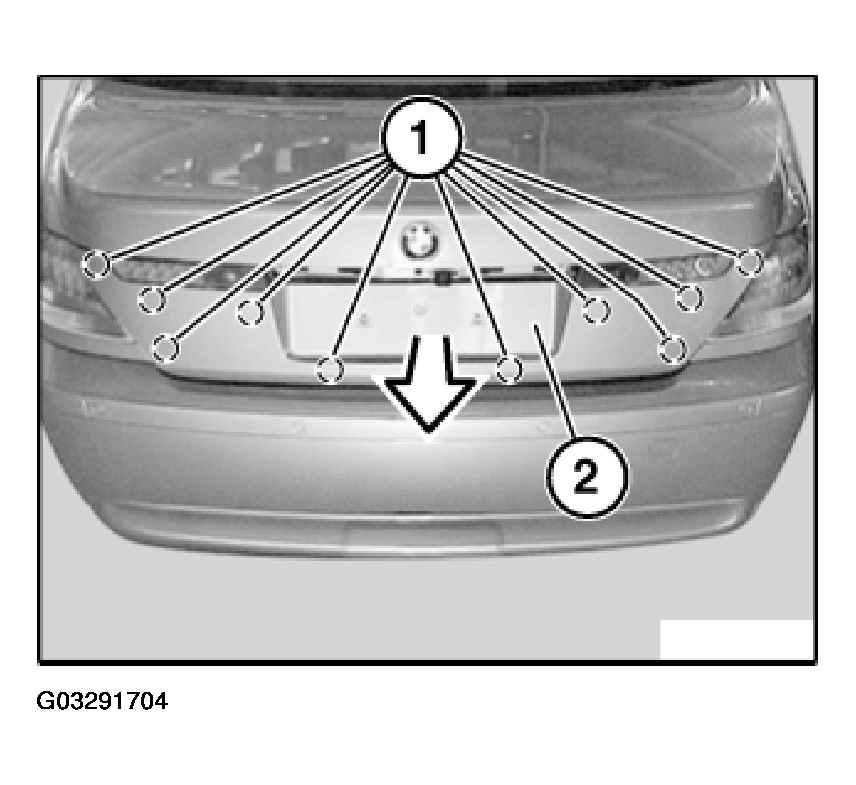

Lever out catches (1)

Remove complete rear center trim (2) in direction of arrow.

Fig 2: Locating Rear Center Trim Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

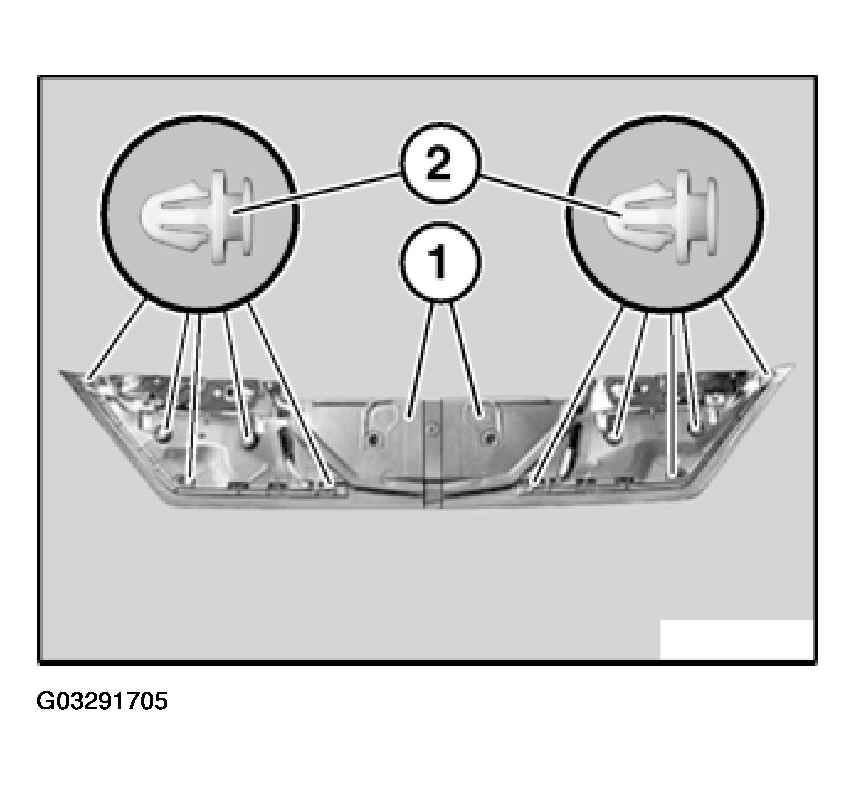

Make sure two-part seal (1) is correctly seated.

If necessary, replace faulty clips (2).

Fig 3: View Of Trim Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

Remove both rear lights. Refer to 63 21 183 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (UP TO 03/2005) (ON REAR LID) .

If necessary, remove two-part seal.
