63 21 186 Removing And Installing/Replacing Rear Light (On Center Of Rear Lid)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Lever out covers (1) at bottom and remove.

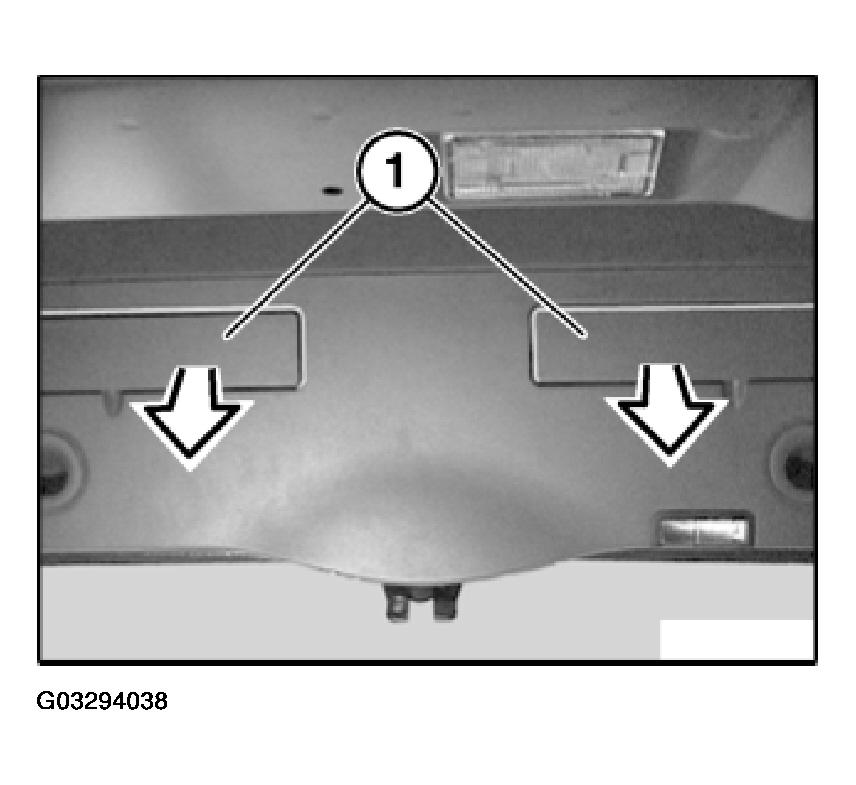

Fig 1: Rear Light Covers And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Releasing rear light is shown on left side.

Releasing rear light on right side is done in same way.

Unfasten plug connection (1) and disconnect.

Unscrew nuts (2).

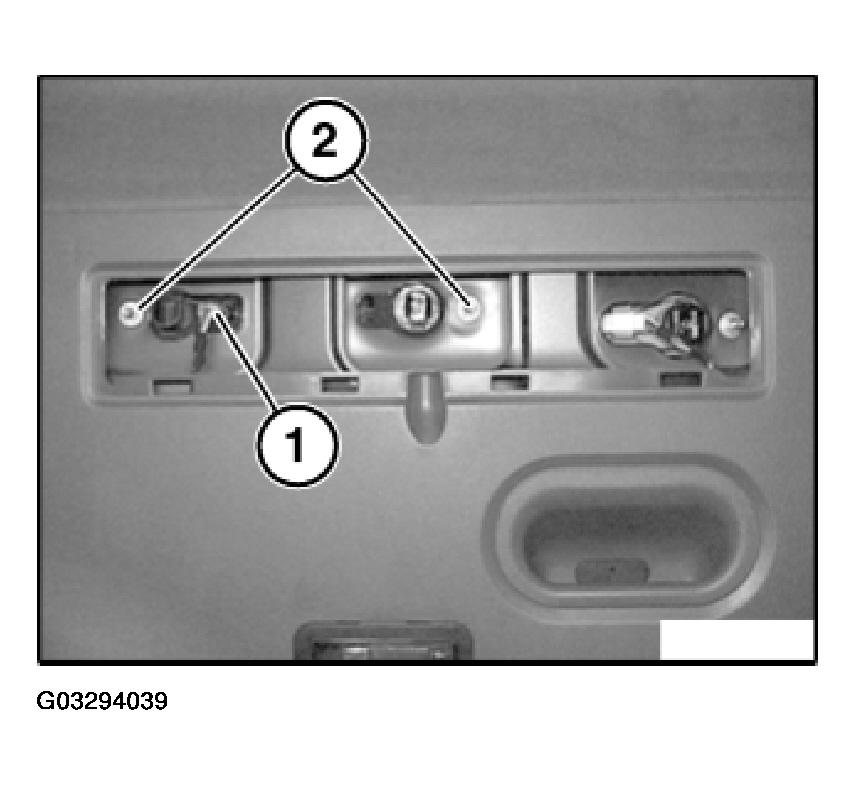

Fig 2: Rear Light Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure rear light against falling out.

Lower luggage compartment lid.

NOTE: If necessary, secure shims under rear light (1) against falling out.

Pull out rear light (1) slightly in direction of arrow.

Disconnect plug connection underneath and remove rear light (1).

Installation:

Make sure gap is uniform all round between rear light (1) and luggage compartment lid (2).

Make sure sealing frame for rear light is correctly seated; replace if necessary. Refer to 63 21 107 REPLACING SEALING FRAME FOR REAR LIGHT (ON CENTER OF REAR LID) .

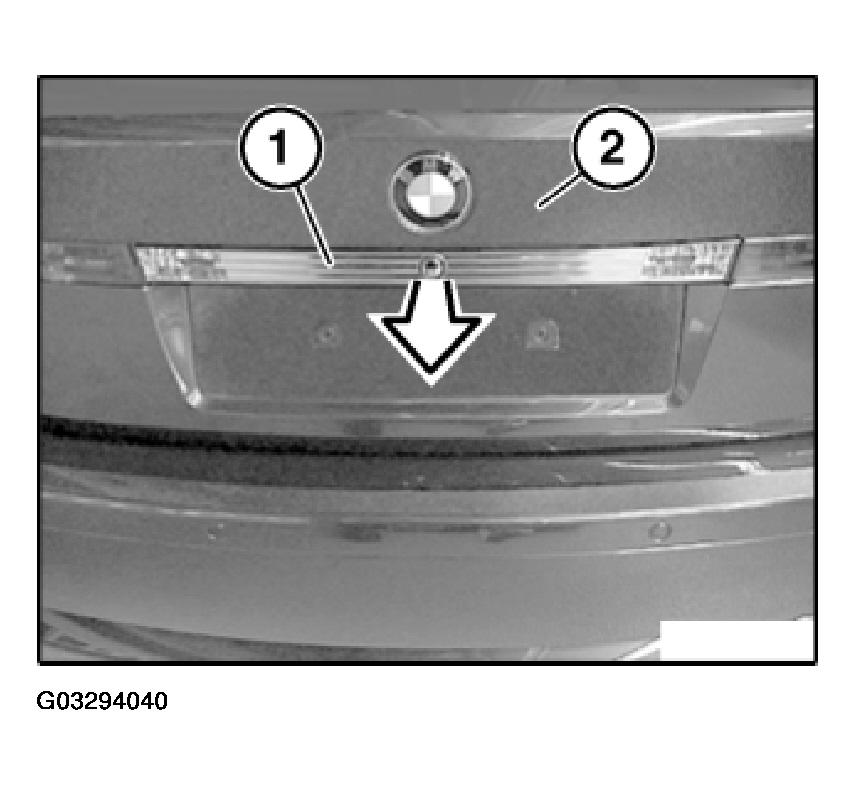

Fig 3: Rear Light, Luggage Compartment Lid And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.
