51 12 156 Removing And Installing Rear Bumper Trim

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Necessary Preliminary Tasks:

Remove trim on bumper trim. Refer to 51 12 080 REMOVING AND INSTALLING/REPLACING TRIM ON BUMPER TRIM .
Remove trim on rear light. Refer to 51 13 440 REMOVING AND INSTALLING/REPLACING TRIM ON LEFT OR RIGHT REAR LIGHT .
Build date up to 03/2005 only:
Remove middle body molding. Refer to 51 12 432 REPLACING CENTRAL BODY MOLDING ON REAR BUMPER .

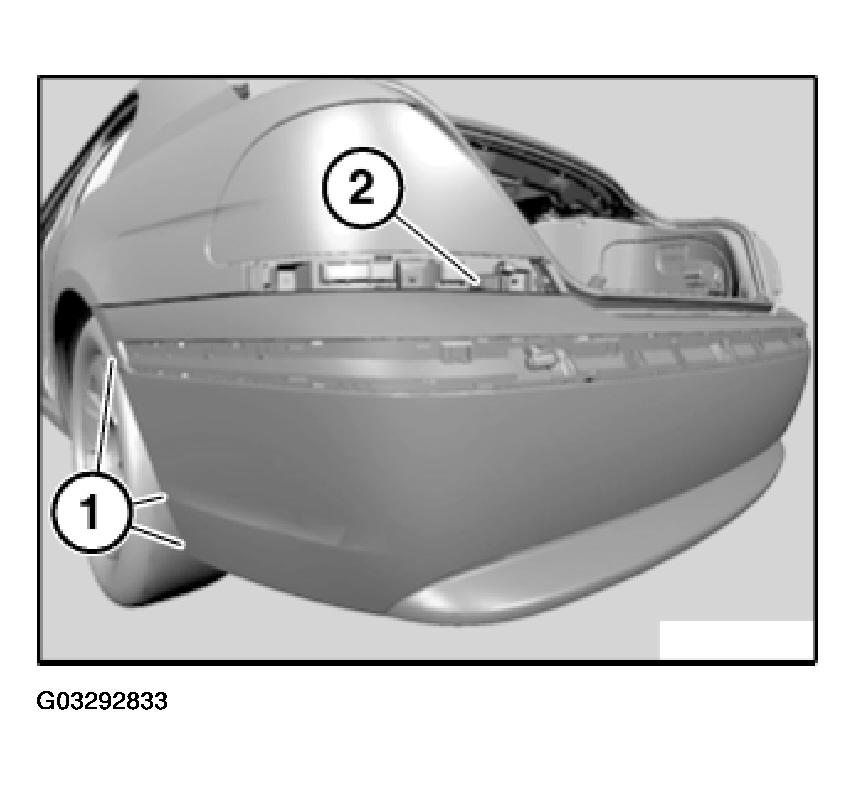

Release screws (1 and 2) on left/right.

Fig 1: Identifying Rear Trim Retaining Screws
Courtesy of BMW OF NORTH AMERICA, INC.

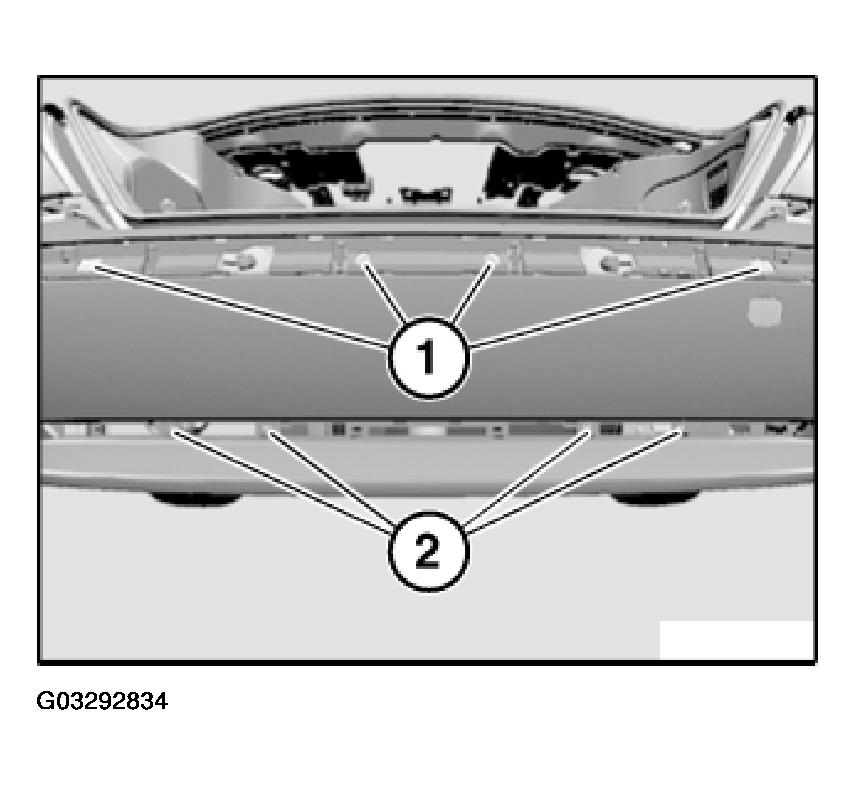

Unscrew nuts (2).

Build date up to 03/2005:

Release screws (1).

Fig 2: Locating Rear Trim Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bumper trim (1) is locked at sides in mounting holder and must be unlocked for removal purposes (risk of damage).

Removing:

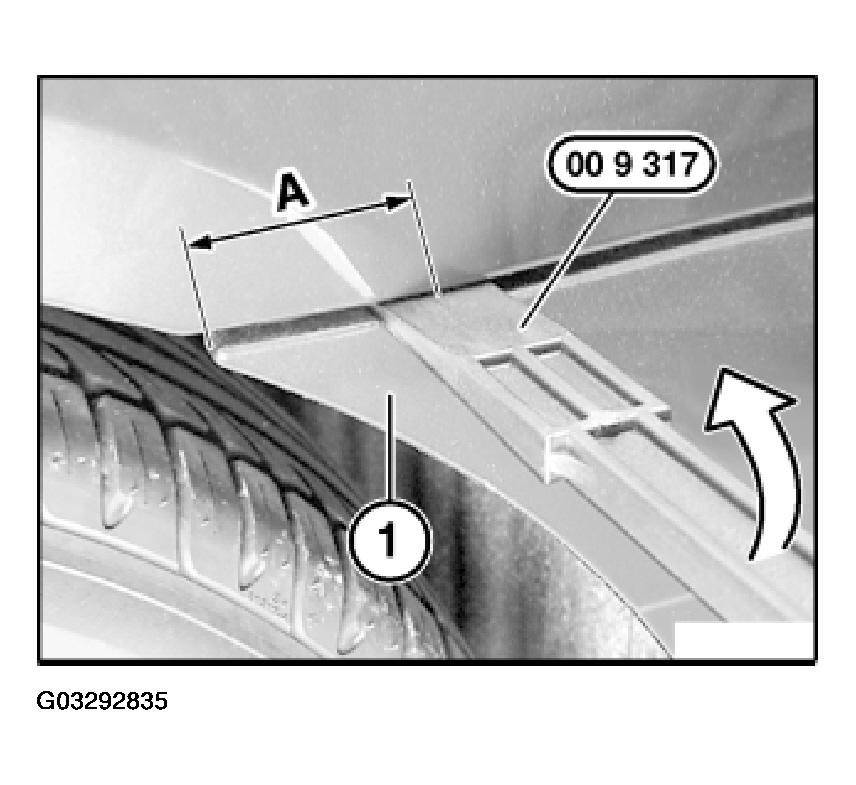

Insert special tool 00 9 317 at distance (A).
Disengage/unlock bumper trim (1).
Pull bumper trim (1) straight towards rear with aid of a 2nd person.
If necessary, disconnect plug connections.
Pull off bumper trim (1).
A = 60 mm.

Installation:

Observe gap dimensions.

Fig 3: Measuring Gap A

Courtesy of BMW OF NORTH AMERICA, INC.
