51 13 440 Removing And Installing/Replacing Trim On Left Or Right Rear Light

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

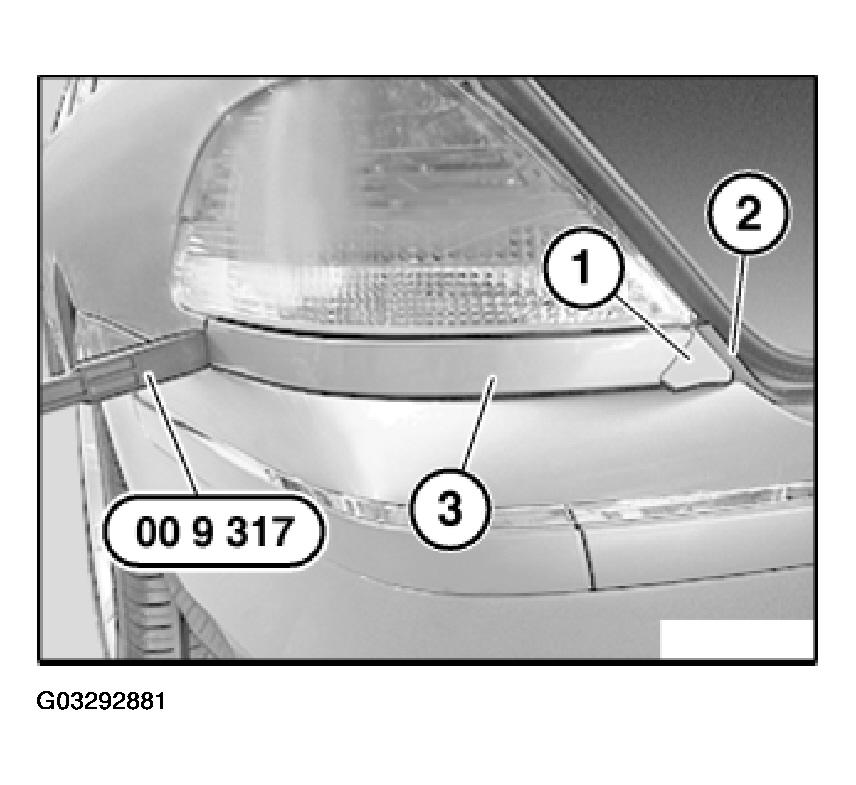

IMPORTANT: Stick fabric adhesive tape (1) onto trim (3) to below guide (2) (risk of damage).

Snap out trim (3) with special tool 00 9 317 sideways.

Fig 1: Removing Trim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

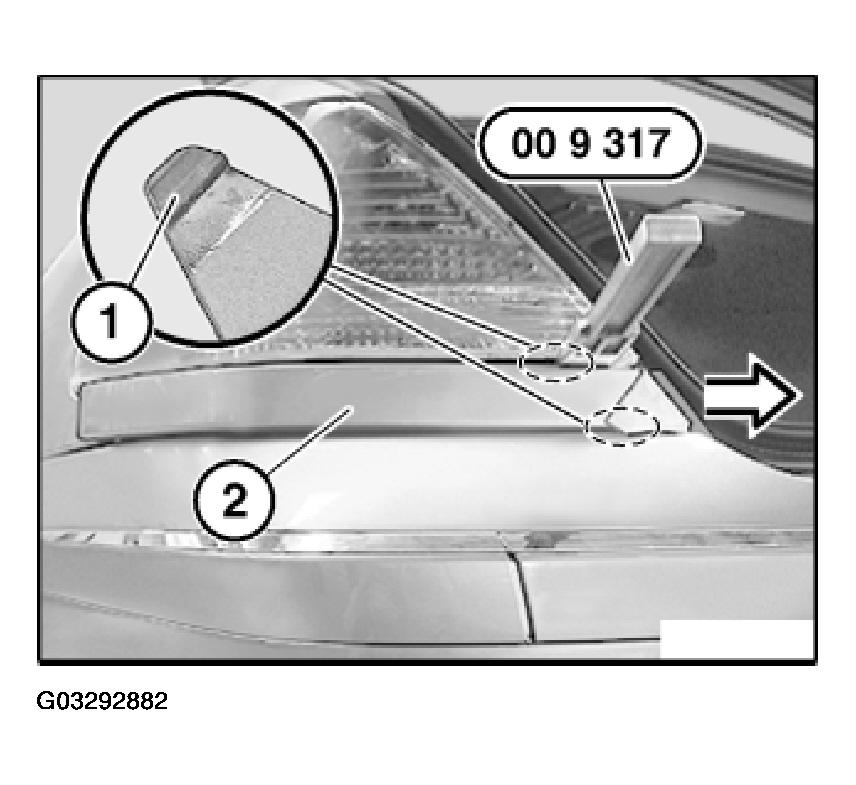

Snap out upper catch (1) with special tool 00 9 317.

Slide trim (2) in direction of arrow and thereby release catch (1).

Fig 2: Removing Upper Catch With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

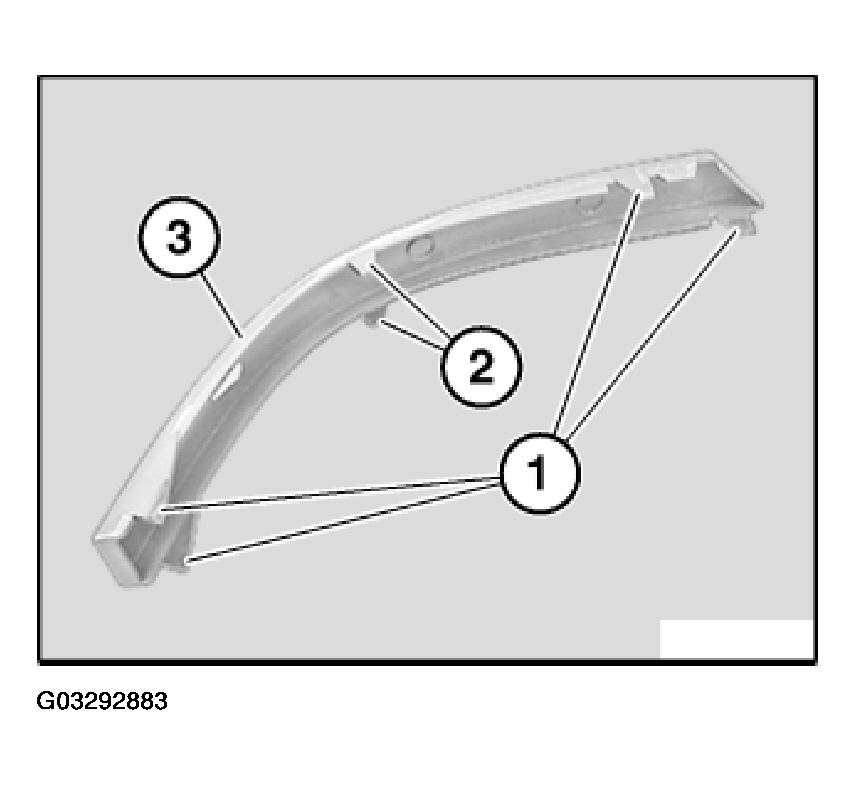

Catches (1) and guides (2) on trim (3) must not be damaged.

Fig 3: View Of Catches And Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
