51 12 080 Removing And Installing/Replacing Trim On Bumper Trim
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
Special Tools Required:
- 00 9 317

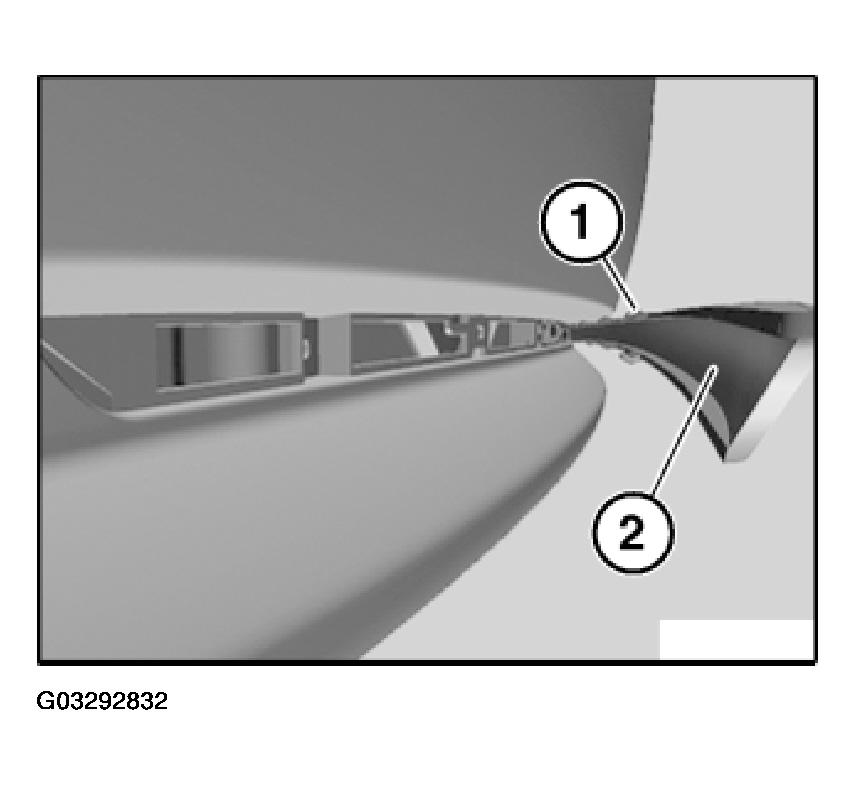

Release catches (1) on trim (2) outwards with special tool 00 9 317.
Remove trim (2) towards rear.
