51 45 360 Removing And Installing/Replacing Wood Trim On Left

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 321

Remove left fresh-air grill. Refer to 64 22 137 REMOVING AND INSTALLING/REPLACING LEFT FRESH AIR GRILL (AUTOMATIC A/C HIGH) .

Remove instrument cluster trim. This task is described in 51 45 363 REMOVING AND INSTALLING/REPLACING CENTER WOOD TRIM ON INSTRUMENT PANEL .

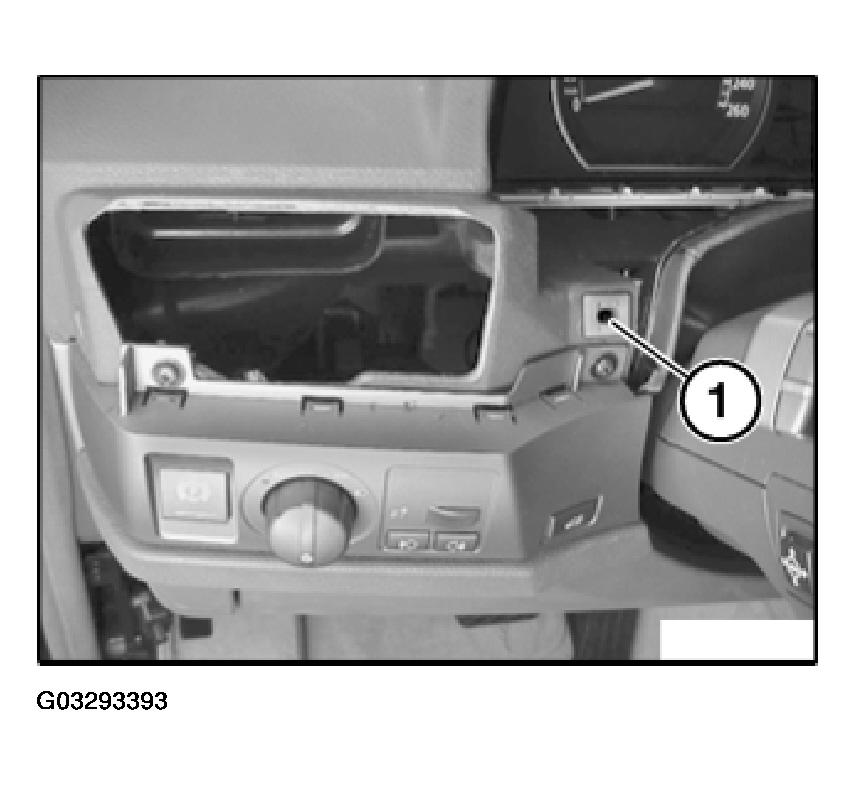

Release nut (1).

Installation:

Tightening torque, 51 45 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Identifying Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

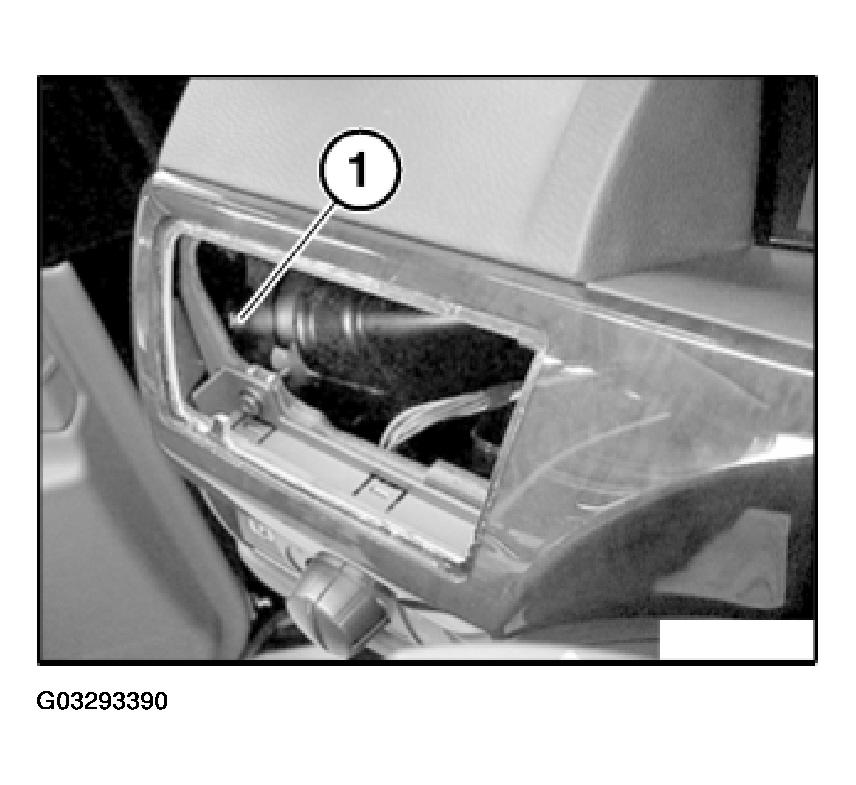

Release screw (1).

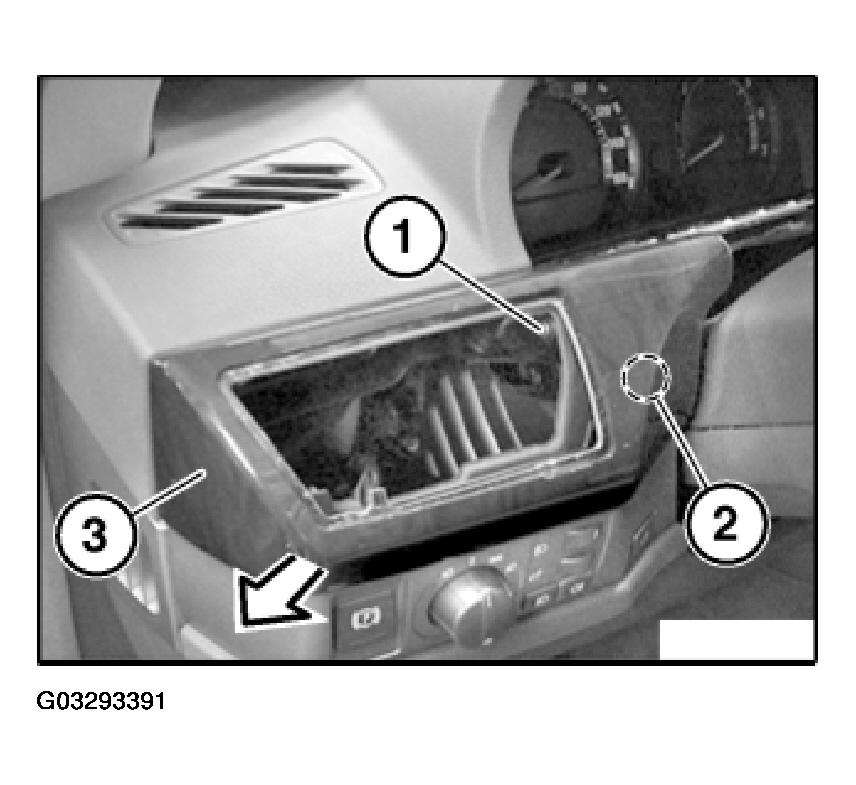

With special tool 00 9 321 (fishbone) through opening for fresh air grill, unclip wood trim (3) next to retaining pin (2).

Remove wood trim (3) in direction of arrow.

Fig 2: Removing Wood Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

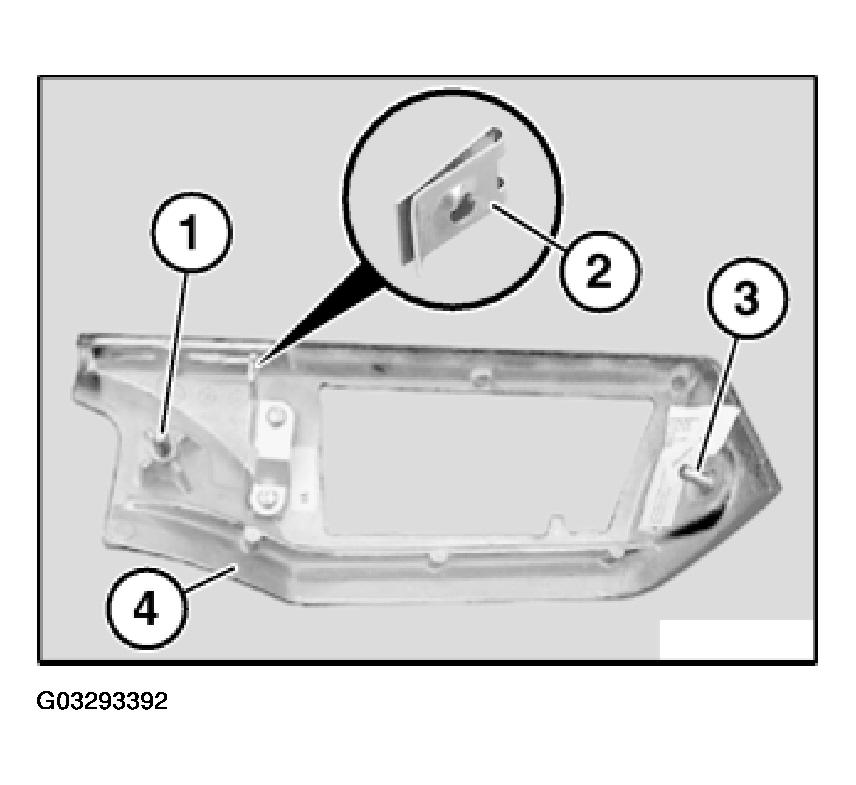

Following parts of wood trim (4) must not be damaged or missing:

Shaft.
Speed nut.
Stud.

Fig 3: Identifying Speed Nut
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clip (1) (Hutfix).

Fig 4: View Of Clip (Hutfix)

Courtesy of BMW OF NORTH AMERICA, INC.

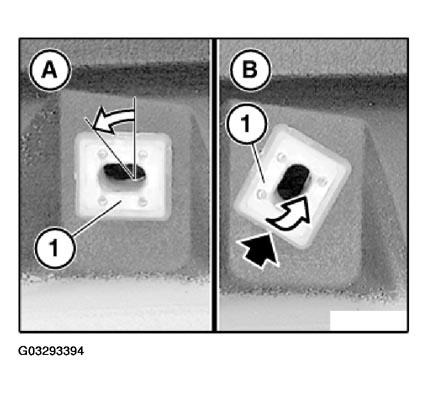

Replacing Clip (Hutfix):

Turn clip (1) with screwdriver to left by approx. 60°.
Lever out clip (1) from below.

Fig 5: Aligning Clip
Courtesy of BMW OF NORTH AMERICA, INC.

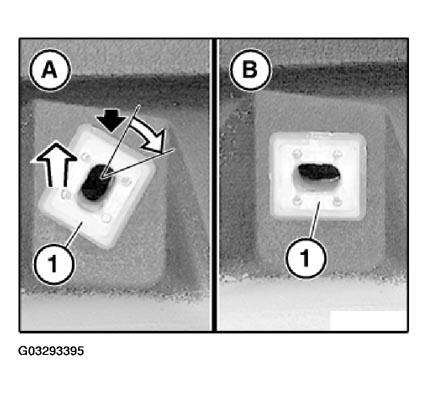

Installation:

Insert clip (1) from above and snap into place at bottom.
Then turn clip (1) with screwdriver to right by approx. 60°.
Clip (1) in end position.

Fig 6: View Of Clip In End Position
Courtesy of BMW OF NORTH AMERICA, INC.
