64 22 137 Removing And Installing/Replacing Left Fresh Air Grille (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

Special Tools Required:

64 1 030

CAUTION: Proceed with care so as to avoid damaging the fresh air grill.

Open fins of fresh air grill (1).

Attach special tool 64 1 030 on both sides in mounts (2) and pull out fresh air grill (1) slightly in direction of arrow.

Close fins of fresh air grill (1) and remove grill (1) towards rear.

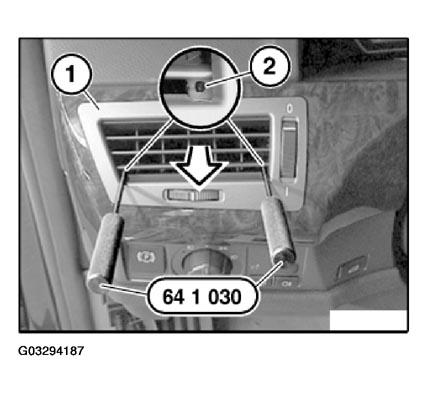

Fig 1: View Of Special Tool 64 1 030

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of fresh air grill (2) must not be damaged.

Make sure fresh air grill (2) is correctly seated on fresh air duct behind.

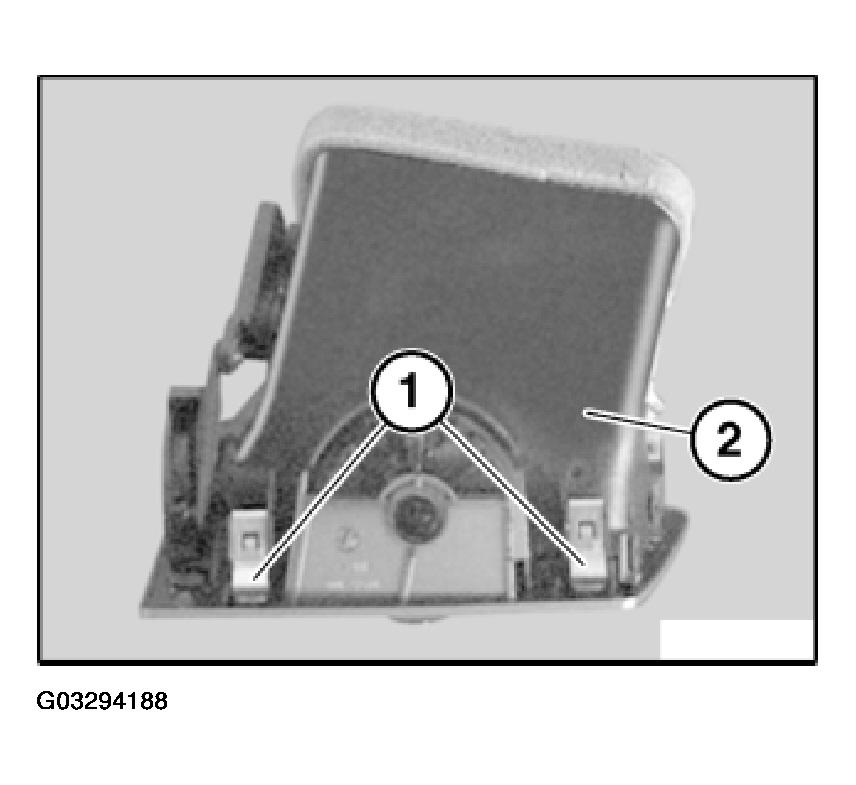

Fig 2: Locating Catches Of Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.
