51 45 363 Removing And Installing/Replacing Center Wood Trim On Instrument Panel

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 341

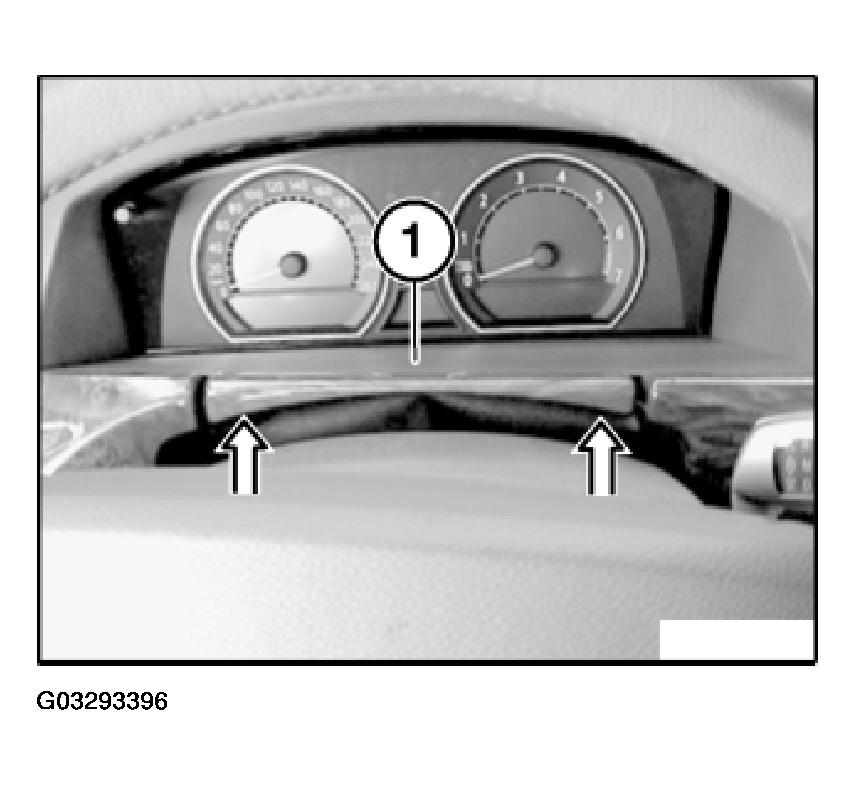

Unclip instrument cluster trim (1) by applying light thumb pressure upwards on wood trim on left and right.

Fig 1: Unclipping Instrument Cluster Trim

G03293396

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

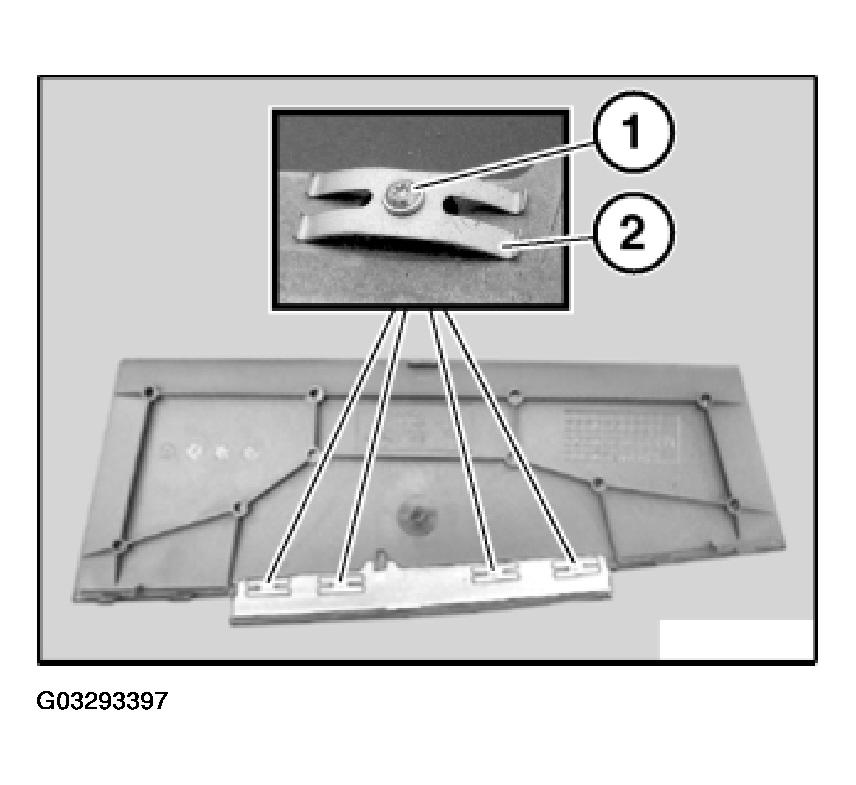

Insert spring washers (2) with dome facing screw head.

Fig 2: Identifying Spring Washers

G03293397

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

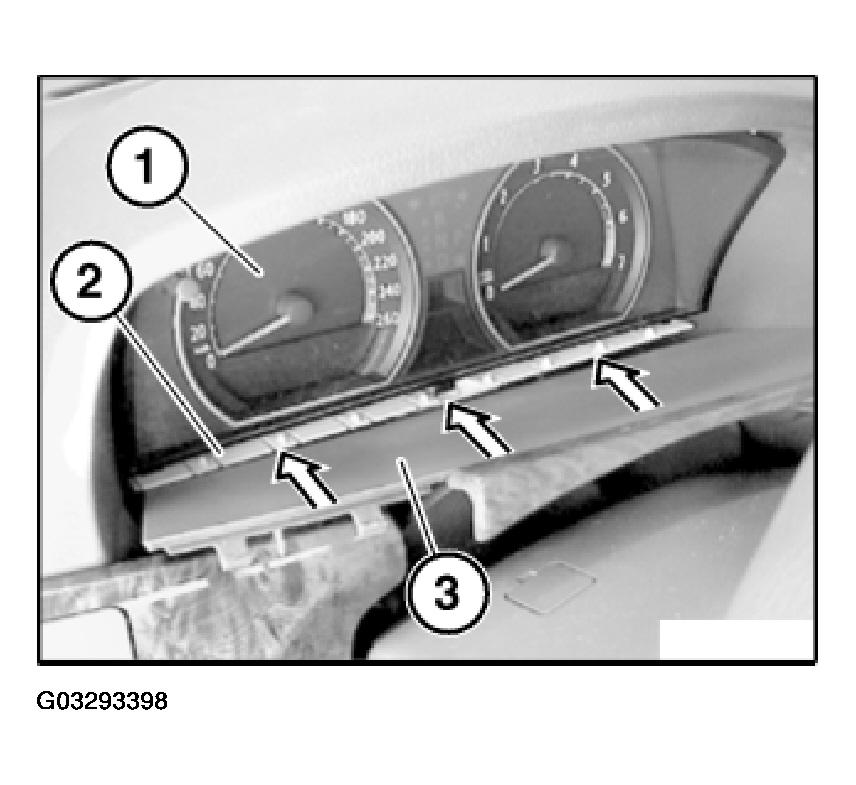

Insert instrument cluster trim (3) in mounting (2) of instrument cluster (1).

Fig 3: Installing Instrument Cluster Trim

G03293398

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

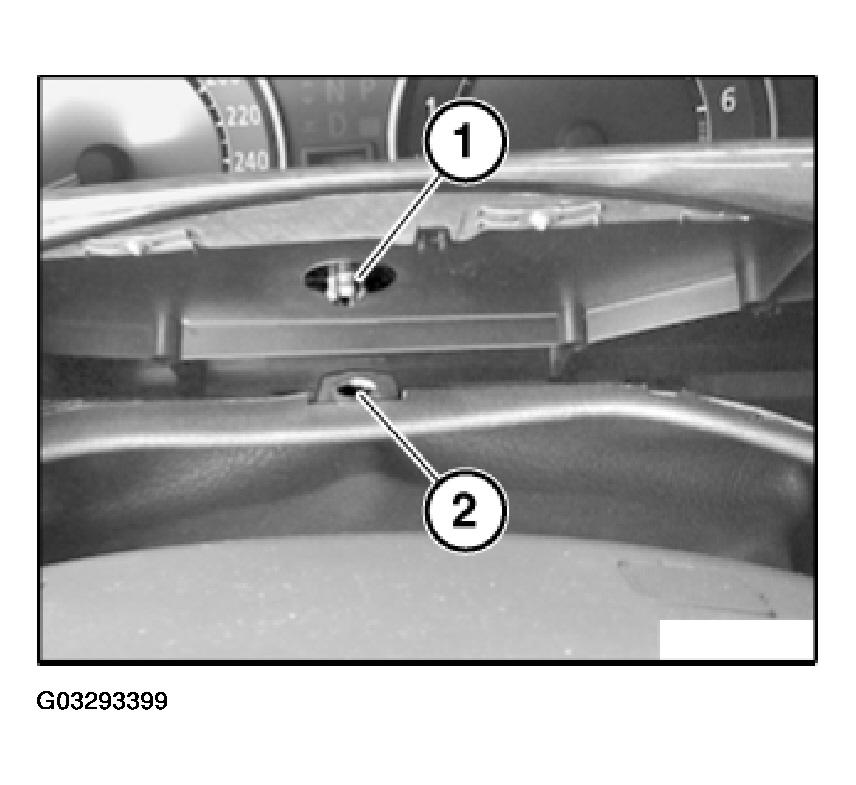

Clip holder (1) into mounting (2).

Fig 4: View Of Holder And Mounting

G03293399

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage wood trims.

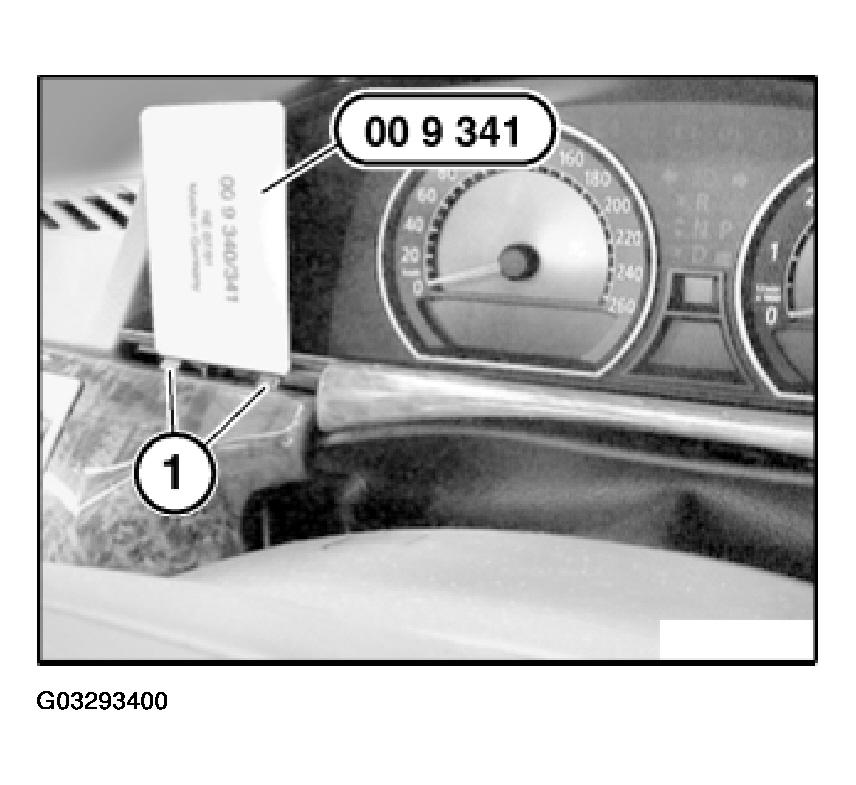

Snap detent lugs (1) on left and right into place with special tool 00 9 341.

Fig 5: Identifying Assembly Wedge And Detent Lugs

G03293400

Courtesy of BMW OF NORTH AMERICA, INC.
