51 23 110 Removing And Installing/Replacing Left Hood/Bonnet Lock

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove left headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (FROM 03/2005) , 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (UP TO 03/2005) and 63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT) .

Disengage Bowden cable (1 and 2) from hood/bonnet lock (3).

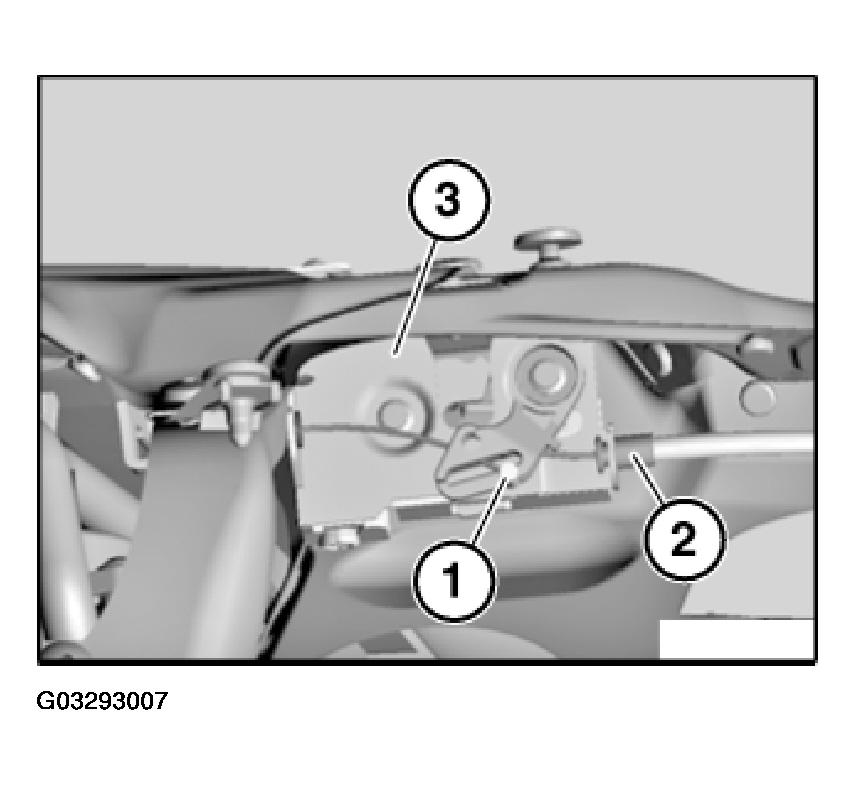

Fig 1: View Of Bowden Cable In Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove hood/bonnet lock (2) towards front.

Tightening torque, refer to 51 23 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

If necessary, adjust engine hood/bonnet.

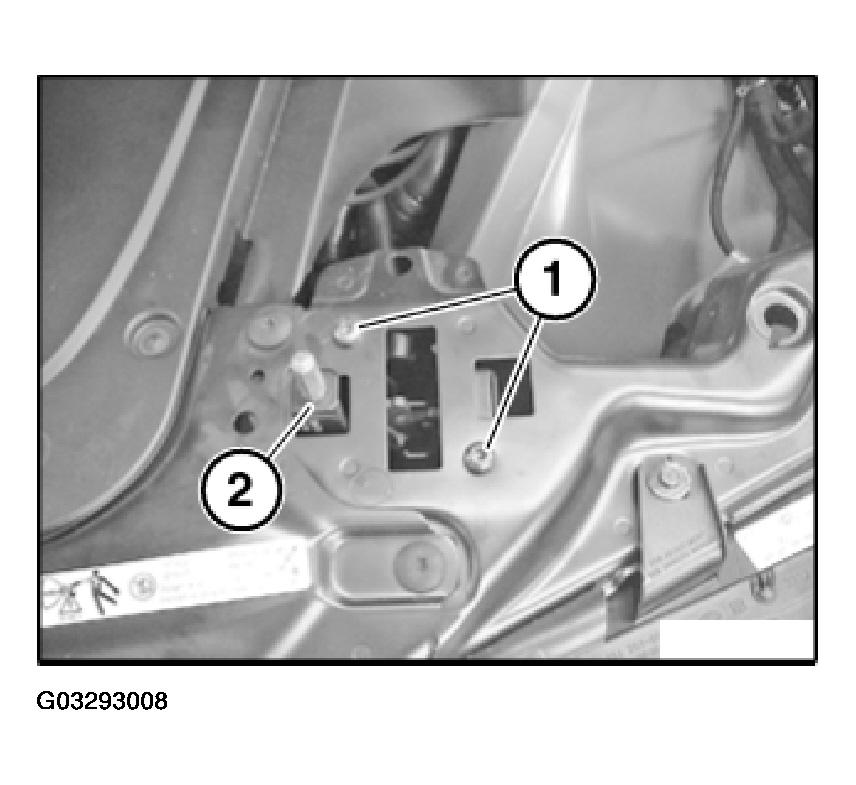

Fig 2: Removing Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
