51 32 211 Replacing Front Left Or Right Rubber Guide For Left Or Right Door Window

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door window glass. Refer to 51 32 170 REMOVING AND INSTALLING/REPLACING DOOR WINDOW GLASS, FRONT LEFT OR RIGHT .
Remove decorative strip from window frame at front. Refer to 51 32 390 REMOVING AND INSTALLING /REPLACING DECORATIVE STRIP ON FRONT LEFT OR RIGHT DOOR .
Remove mirror. Refer to 51 16 000 REMOVING AND INSTALLING/REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR .

Remove sound insulation (1).

Fig 1: Removing Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Release rivets (1).

Pull rubber guide (2) out of window guide.

Remove rubber guide (2) from window frame.

Installation:

Moisten rubber guide (2) with water before fitting.

Insert rubber guide at front/bottom into window guide rail.

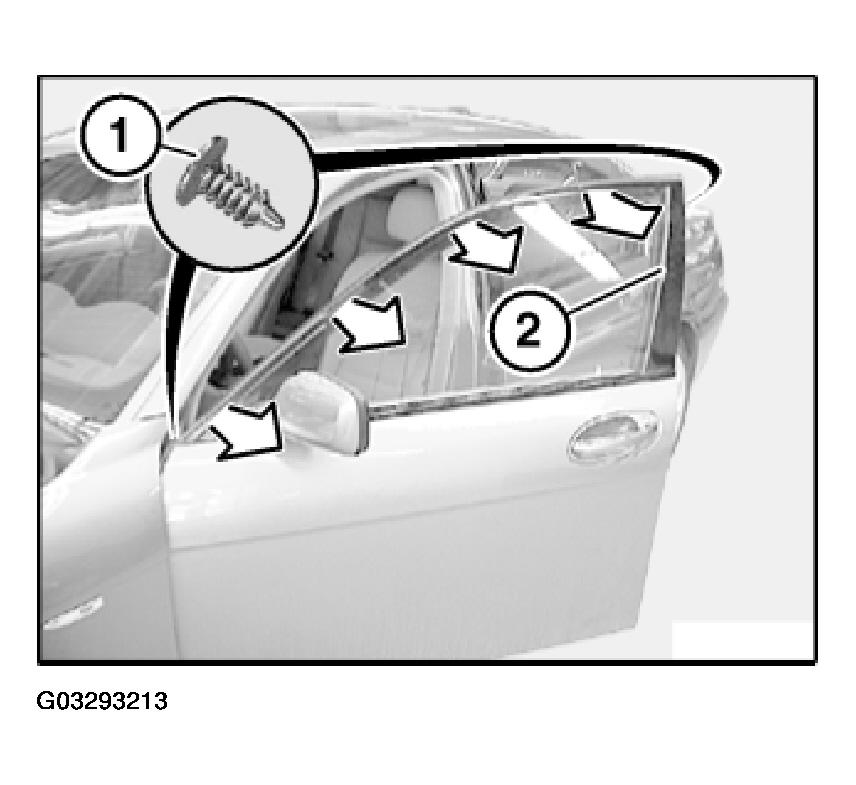

Fig 2: Removing Rubber Guide From Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sound insulation (1) must be fitted and must not be damaged.

If necessary, replace defective sound insulation (1).

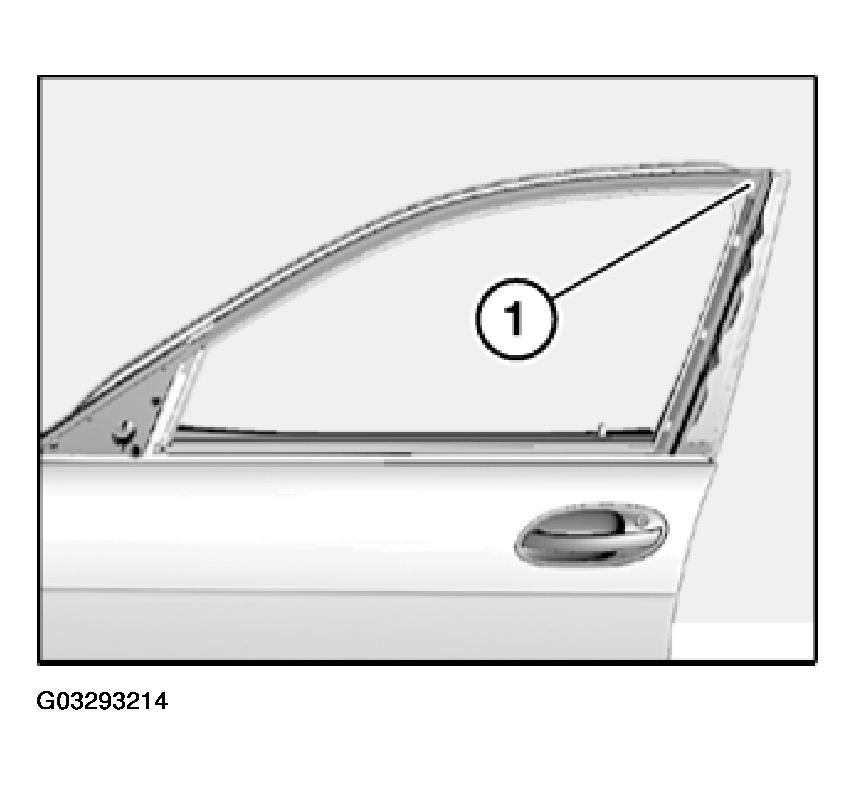

Fig 3: Removing Defective Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
