51 16 000 Removing And Installing/Replacing Mirror On Left Or Right Front Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Partially lever out cover on door window frame (inside) in front area. Refer to 51 32 160 REMOVING AND INSTALLING/REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME .

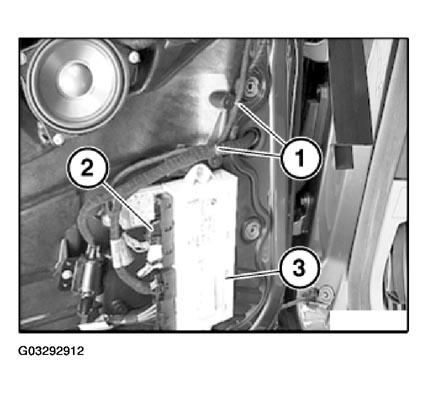

Release cable tie (1).

Unlock plug connection (2) and disconnect from control unit (3).

Fig 1: Locating Plug Connection To Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

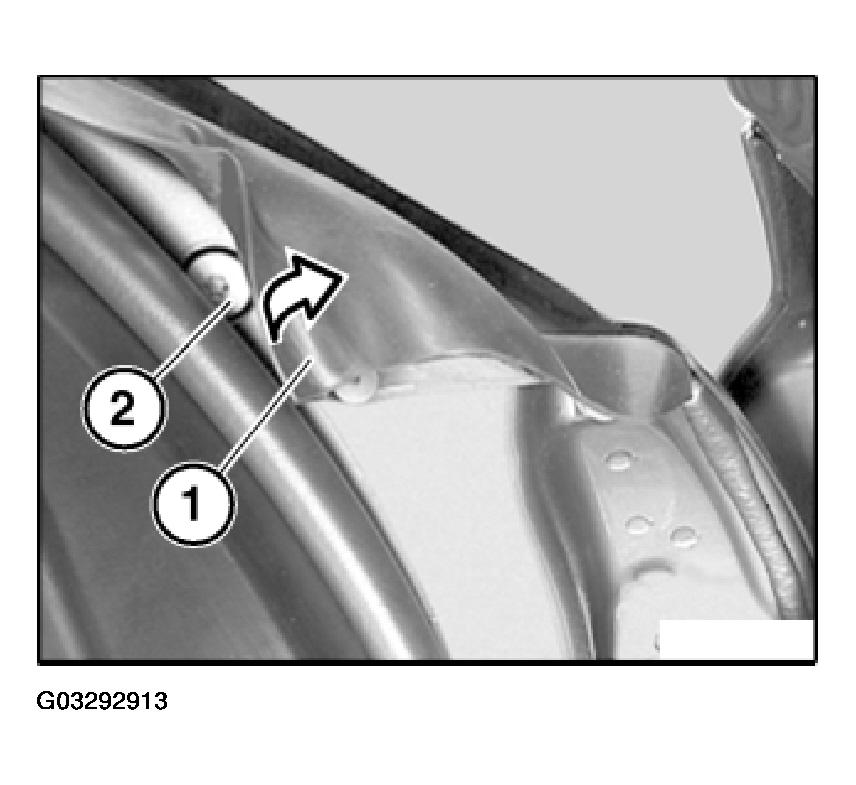

Raise seal (1) slightly and release screw (2).

Fig 2: View Of Seal And Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

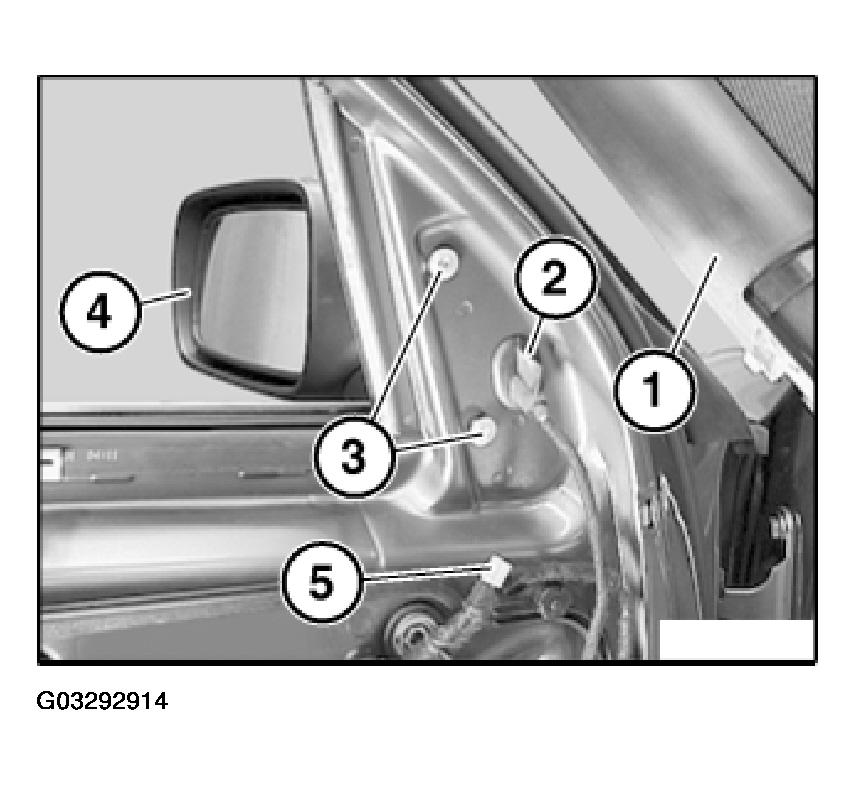

Press rubber grommet (2) outwards.

Release screws (3) and feed out mirror (4) with cable.

Installation:

Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Connect plug connection (5) with speaker in cover (1).

Replacement:

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 N.m.

Tightening torque, refer to 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Locating Grommet And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror must not be damaged or missing:

Seal on mirror base plate.
Sound insulation in front door.
Check function.
