51 32 390 Removing And Installing/Replacing Decorative Strip On Front Left Or Right Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open door window.
Remove mirror on front door. Refer to 51 16 000 REMOVING AND INSTALLING/REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR .

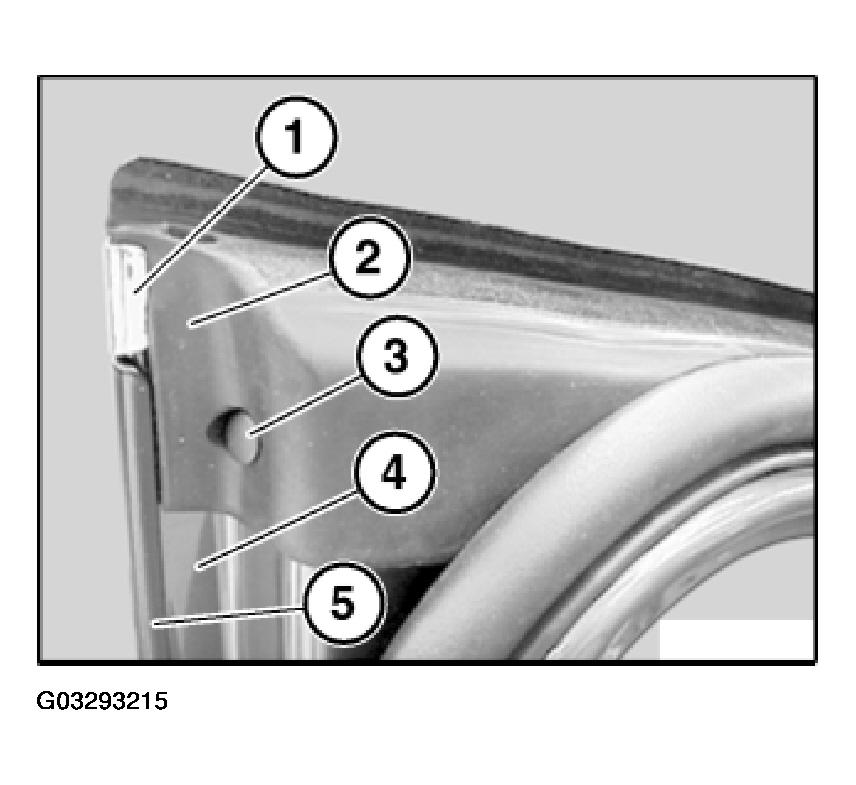

Lever out plastic rivet (3).

Lever seal (2) out of decorative strip (1).

Installation:

During installation, attach decorative strip (1) first at rear to door edge (4).

Decorative strip (1) must match trim (5).

Fig 1: View Of Plastic Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

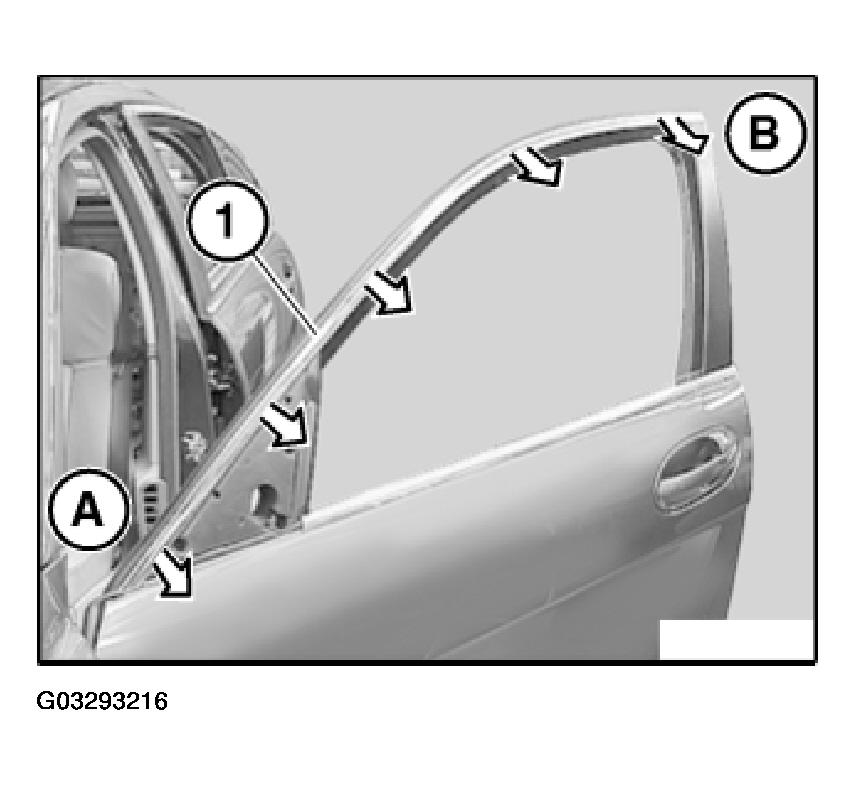

NOTE: Start pulling off decorative strip (1) at front (A) and disconnect at rear (B).

Detach decorative strip (1) in direction of arrow.

Fig 2: Locating Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

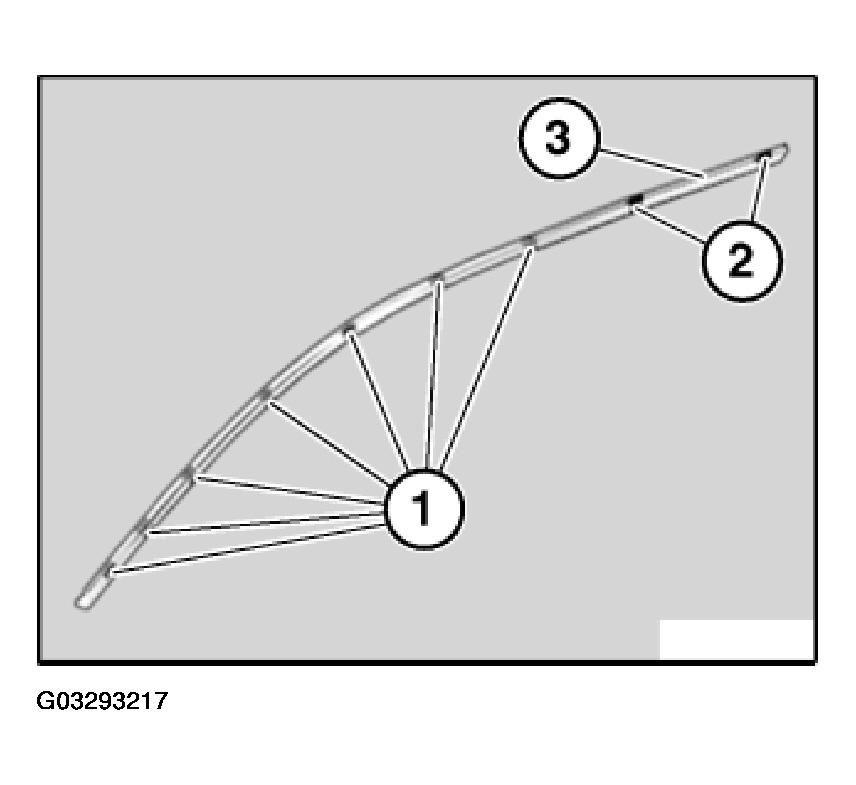

If necessary, replace faulty clips (1 and 2) on decorative strip (3).

Fig 3: Identifying Clips On Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
