51 21 795 Disassembling And Assembling Outside Handle For Painting

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove outside handle. Refer to 51 21 170 REMOVING AND INSTALLING OR REPLACING OUTSIDE HANDLE FROM LEFT OR RIGHT FRONT DOOR and 51 22 170 REMOVING AND INSTALLING/REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .

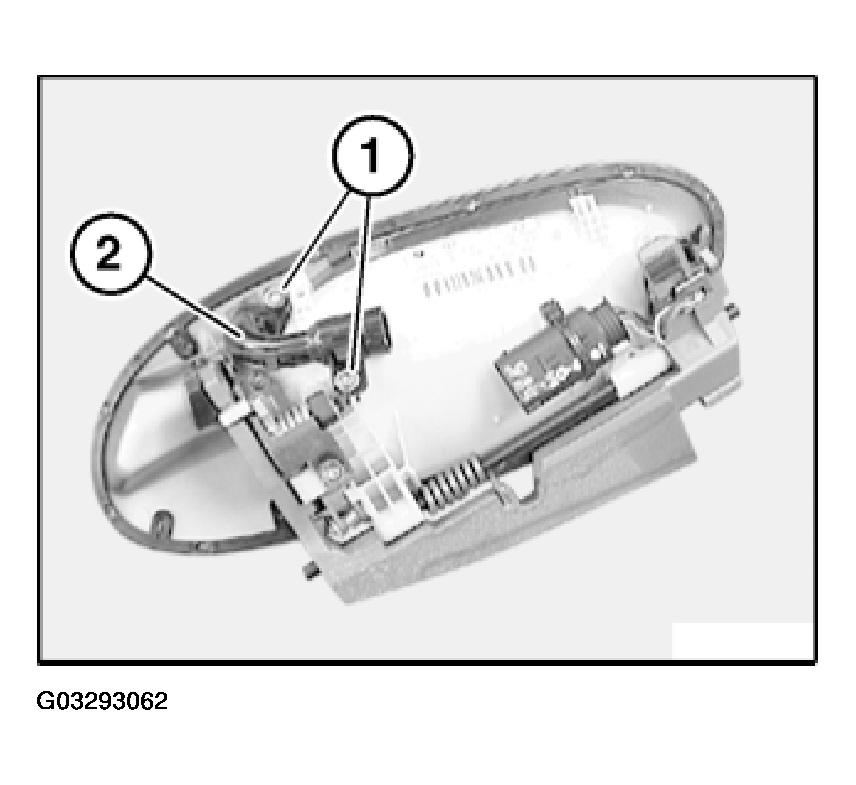

Release screws (1) and remove light module (2).

IMPORTANT: For further tasks, protect optical waveguide connection against damage and contamination (masking/fabric/insulating tape).

Fig 1: Removing Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

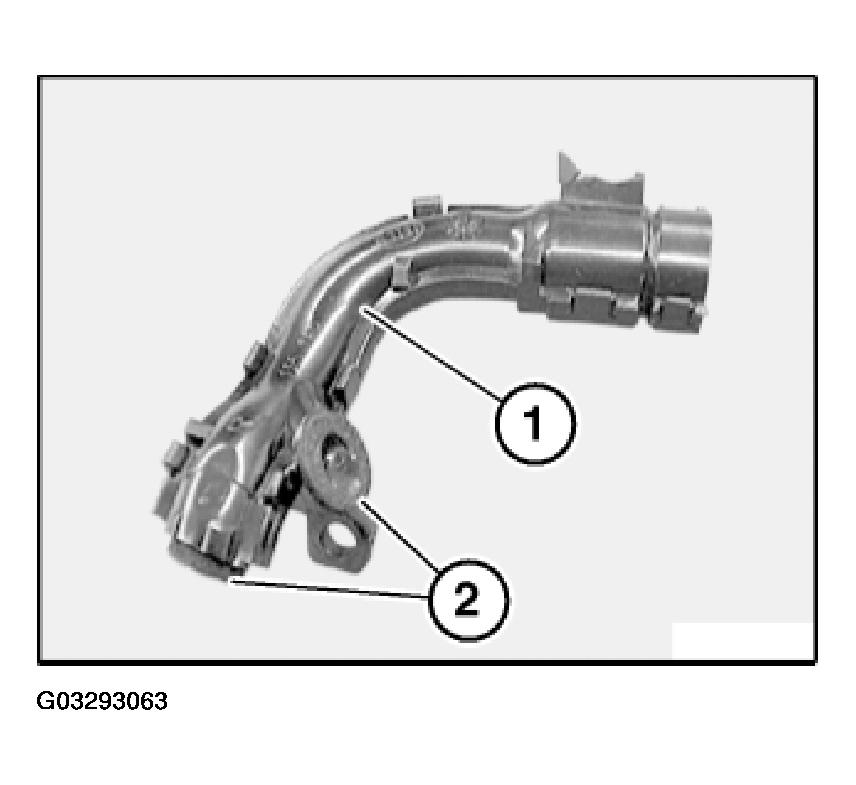

Seals (2) on light module (1) must not be damaged or missing.

Fig 2: Identifying Seals On Light Module

Courtesy of BMW OF NORTH AMERICA, INC.

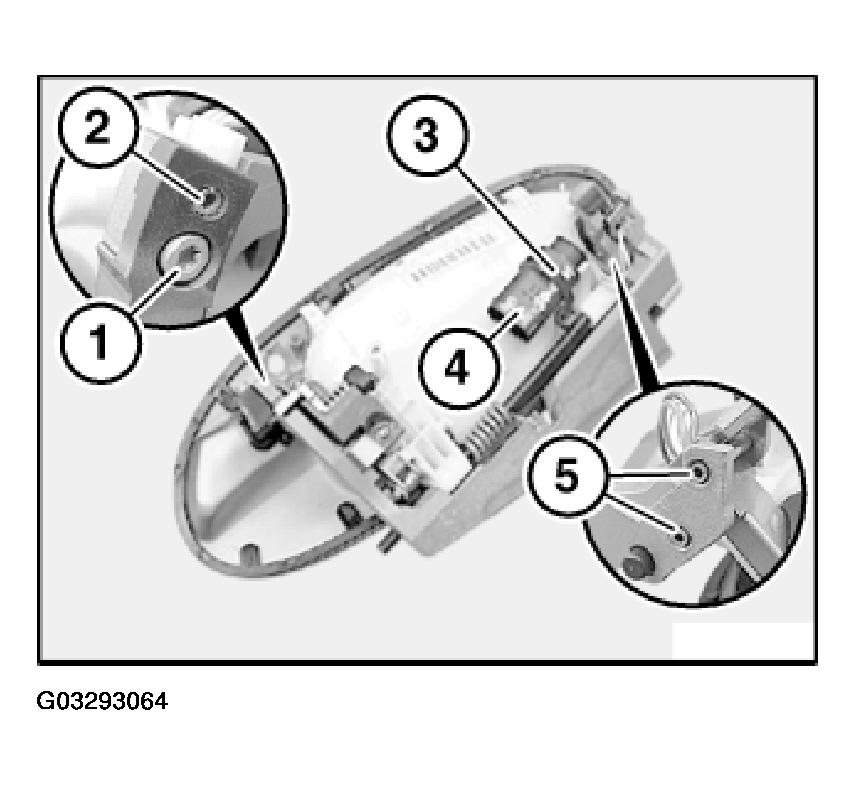

Release screw (1).

Release clamping pins (2 and 5).

Specification With Comfort Access/CA:

Remove cable strap (3).

Note down plug coding of plug (4).

Disconnect cable (4) from plug.

Fig 3: View Of Clamping Pins

Courtesy of BMW OF NORTH AMERICA, INC.

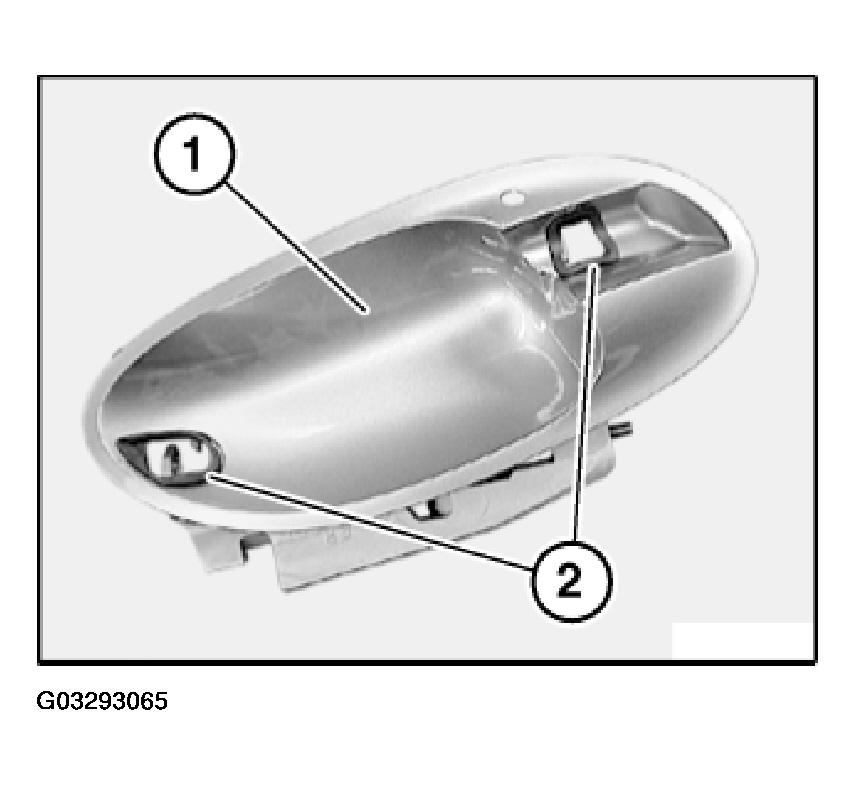

Remove outside handle from handle carrier (1).

Remove seals (2) from handle carrier (1).

Fig 4: Locating Seals From Handle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

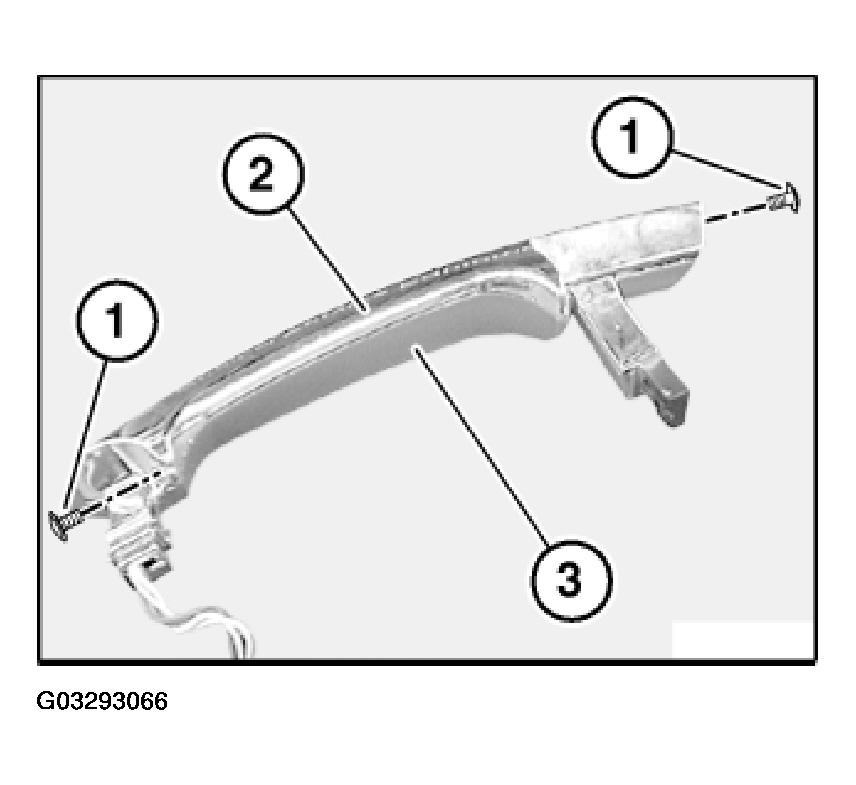

Specification With Comfort Access/CA:

Release screws (1).

Remove handle cover (2) from outside handle (3).

Fig 5: View Of Handle Cover From Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.
