51 22 170 Removing And Installing/Replacing Outside Handle On Left Or Right Back Door

Special Tools Required:

• 00 9 318
• 51 3 252

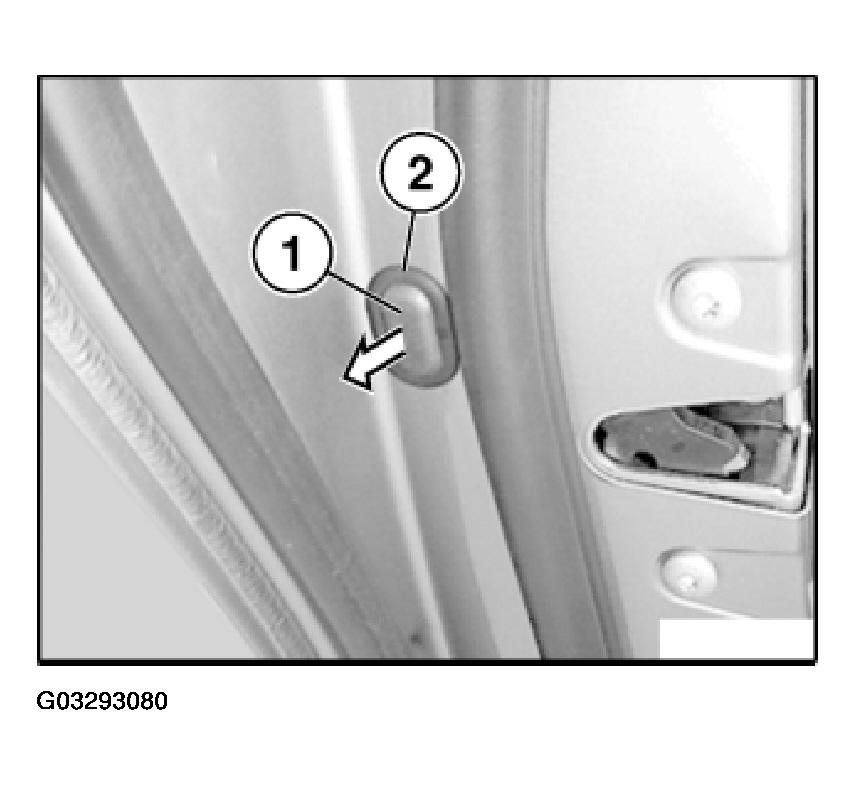

Lever out plugs (1 and 2) with special tool 00 9 318.

Tape off area around bore and door seal with fabric adhesive tape (risk of damage).

Installation:

If necessary, fit new plugs.

Fig 1: Locating Door Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unlocking outside door handle:

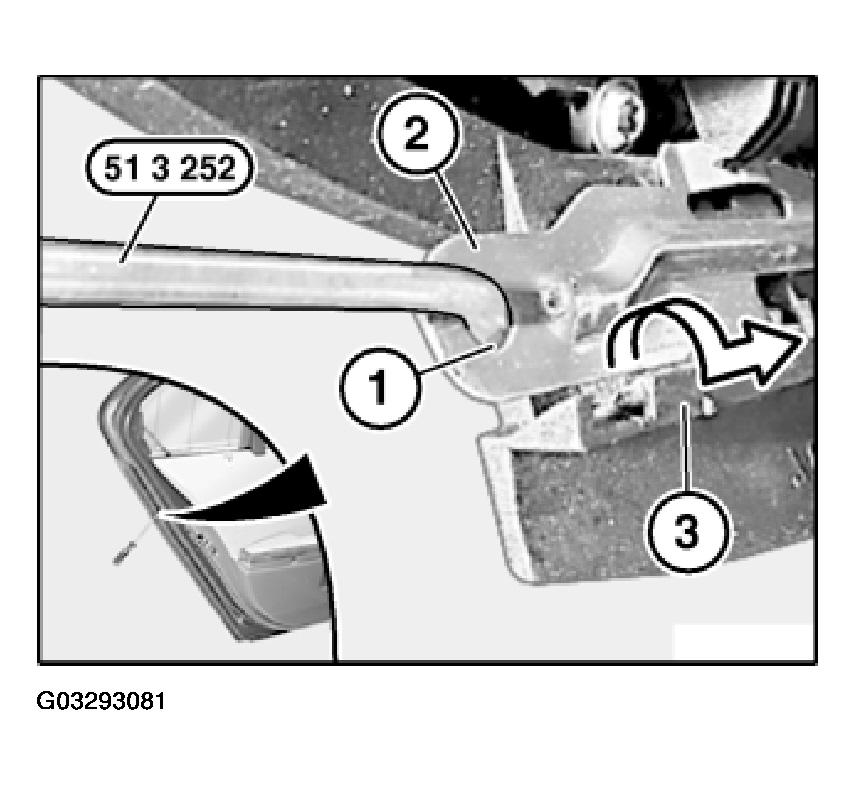

• Insert special tool 51 3 252 into hole (1) of lockplate (2).
• Lift lockplate (2) inwards out of guide (3) and push forwards as far as it will go.

Installation:

Insert special tool 51 3 252 into hole (1) of lockplate (2) and pull towards rear as far as it will go.

Perform function check:

• Push lockplate (2) forwards again slightly until resistance can be felt.
• Outside door handle must be locked.

Fig 2: Inserting Special Tool Into Hole Of Lockplate

Courtesy of BMW OF NORTH AMERICA, INC.

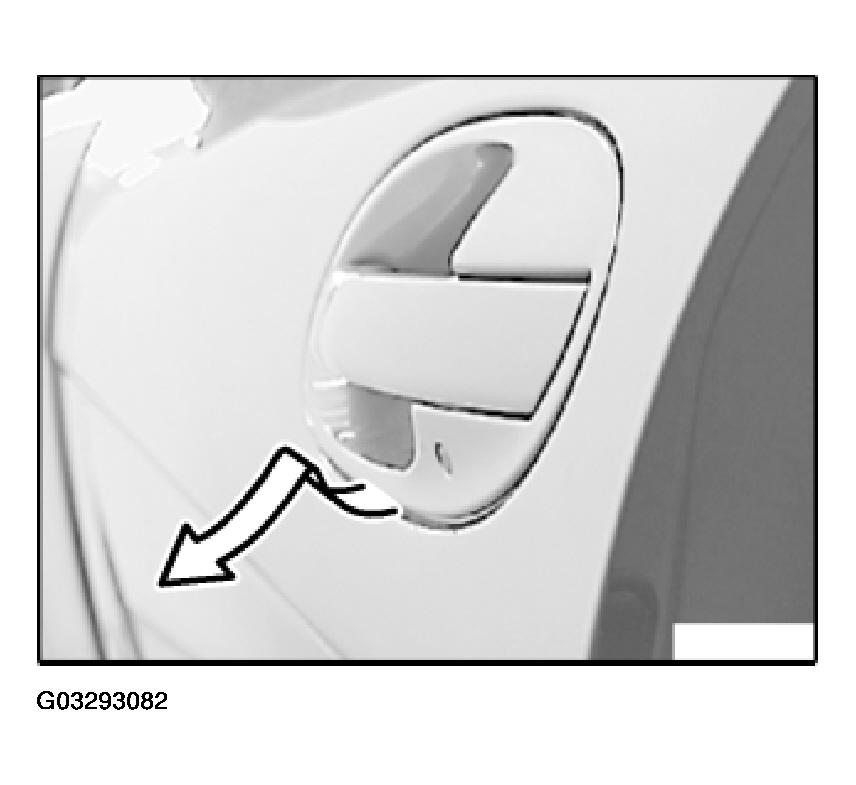

Lever out outside door handle at bottom towards top and pull out at an angle towards bottom.

Fig 3: View Of Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

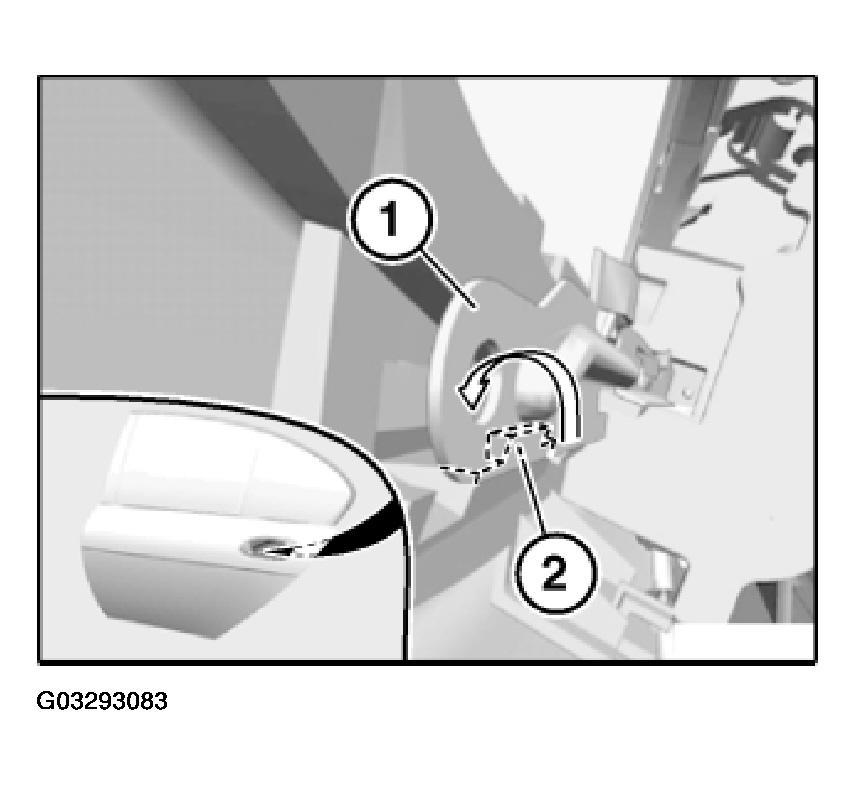

Lift lockplate (1) over opening of outside door handle into guide (2).

Fig 4: Installing Lockplate Into Guide

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, cover outside of door.

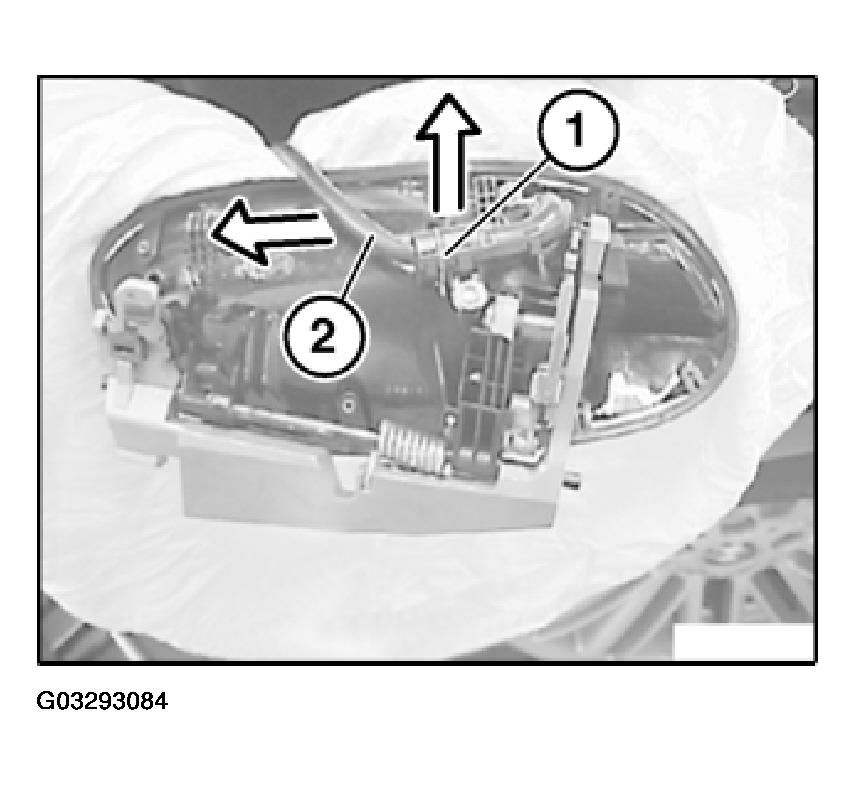

Detach clip (1) and remove fiber optics cable (2) from outside door handle.

If necessary, disconnect further plug connections.

Fig 5: Locating Fiber Optics Cable In Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
