51 21 170 Removing And Installing Or Replacing Outside Handle From Left Or Right Front Door

Special Tools Required:

• 00 9 318
• 51 3 251
• 51 3 252

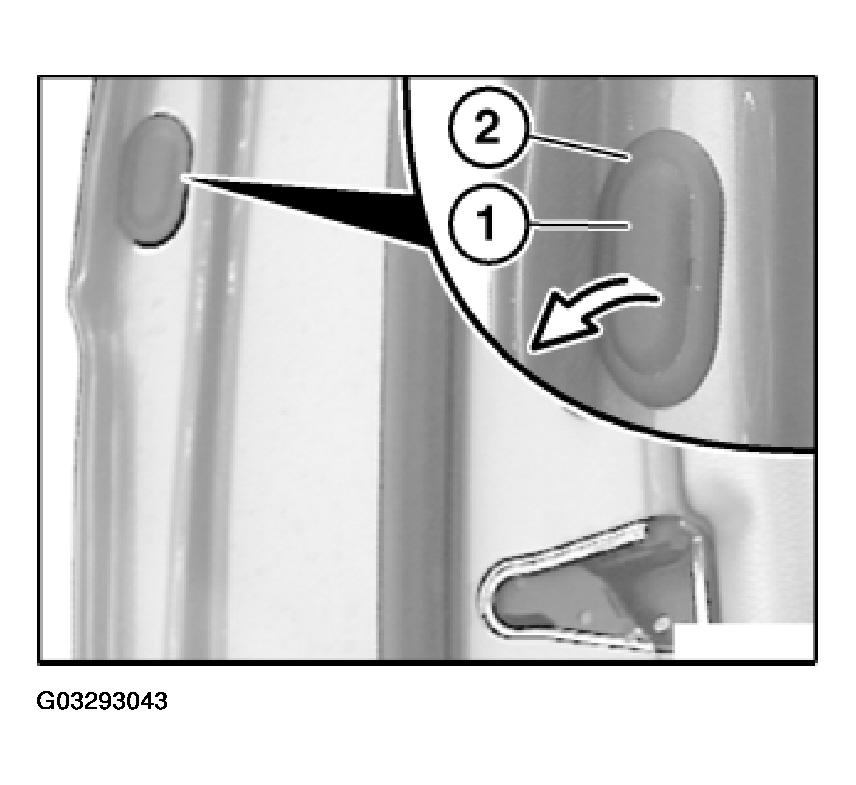

Lever out plugs (1 and 2) with special tool 00 9 318.

Tape off area around bore and door seal with fabric adhesive tape (risk of damage).

Installation:

If necessary, fit new plugs.

Fig 1: Locating Plugs In Door

Courtesy of BMW OF NORTH AMERICA, INC.

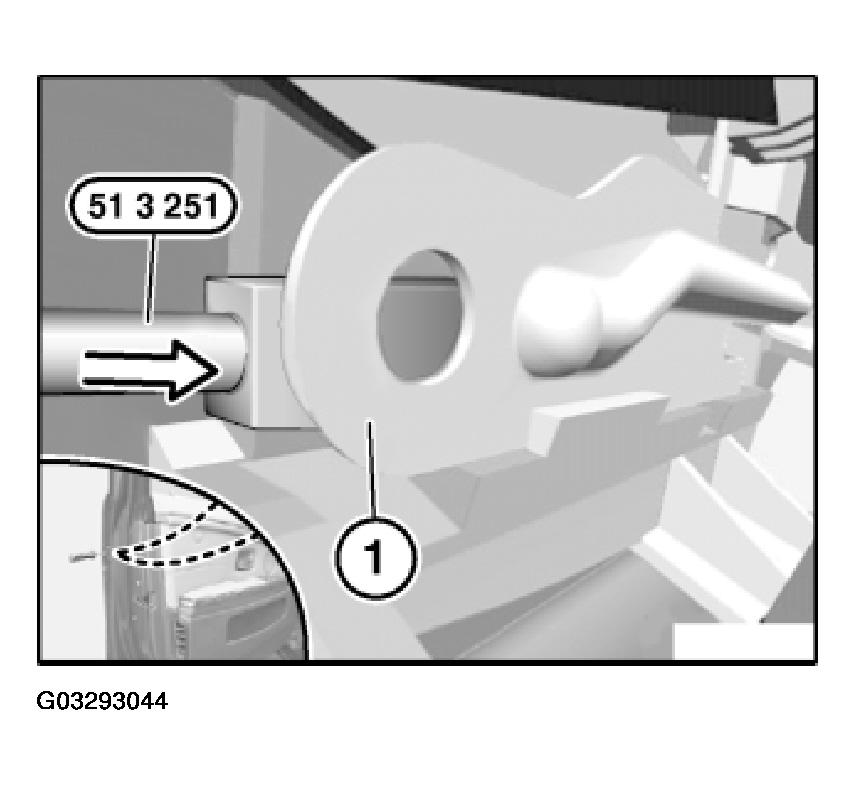

Insert special tool 51 3 251 edgeways behind lockplate (1) (outside of door) and push forwards as far as it will go.

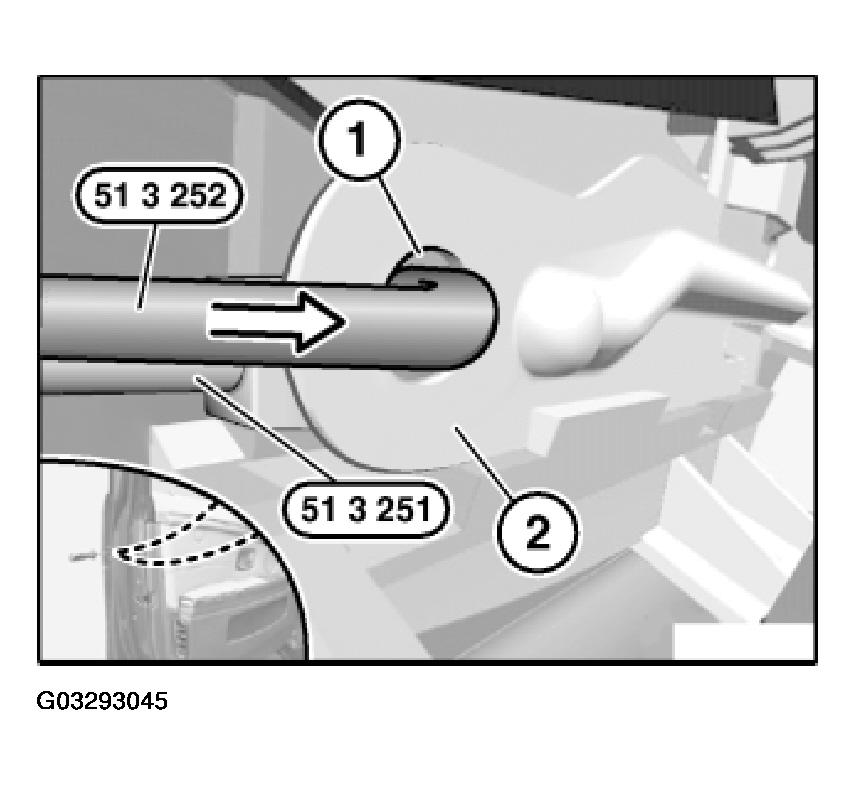

Fig 2: View Of Releasing Slide And Lockplate

Courtesy of BMW OF NORTH AMERICA, INC.

Unlocking outside door handle:

• Feed special tool 51 3 252 into hole (1) of lockplate (2).
• Slide lockplate (2) (if necessary with a short knock) forwards with special tool 51 3 252.

Installation:

Insert special tool 51 3 252 into hole (1) of lockplate (2) and pull towards rear as far as it will go.

Perform function check:

• Push lockplate (2) forwards again slightly until resistance can be felt.
• Outside door handle must be locked.

Comply with notes and instructions on handling fibre optic cables. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Fig 3: View Of Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

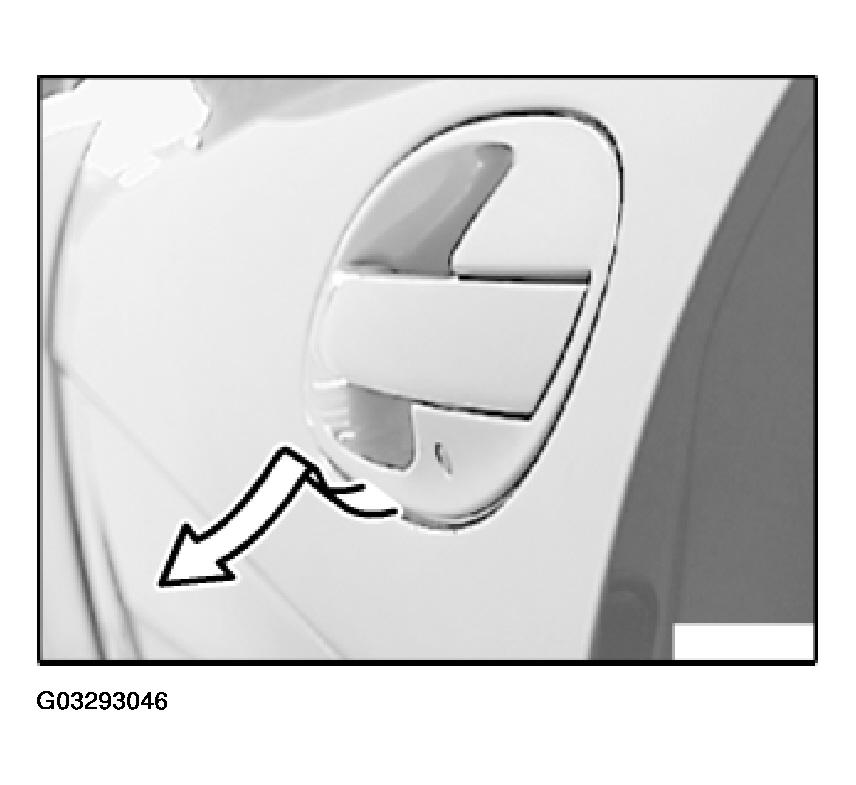

Lever out outside door handle at bottom towards top and pull out at an angle towards bottom.

Fig 4: Removing Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, cover outside of door.

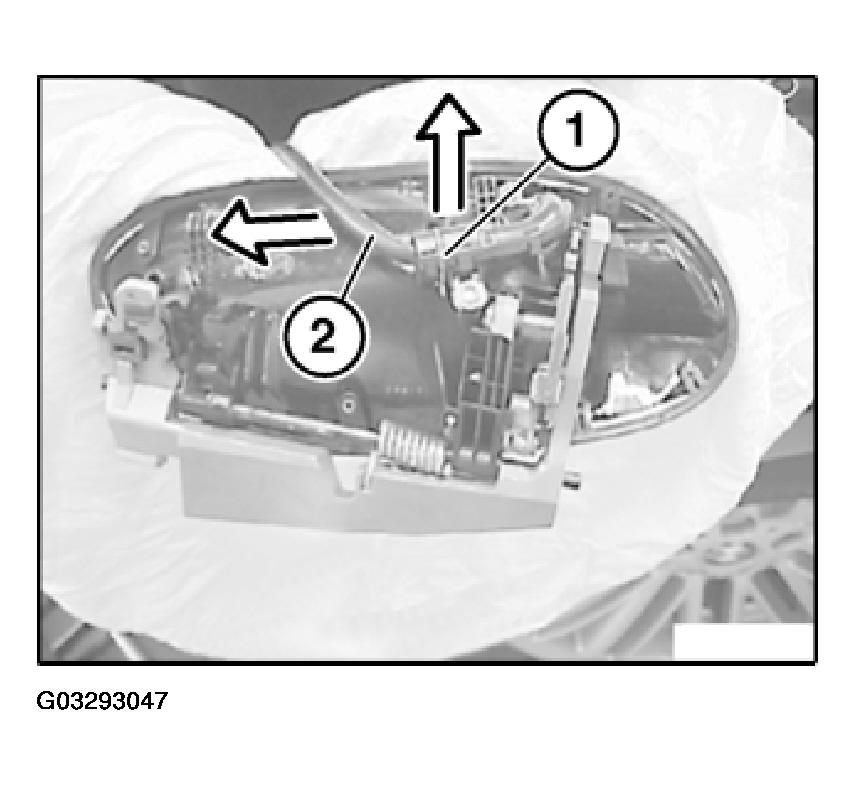

Detach clip (1) and remove fiber optics cable (2) from outside door handle.

If necessary, disconnect further plug connection.

Fig 5: Identifying Outside Door Handle Fiber Optics Cable

Courtesy of BMW OF NORTH AMERICA, INC.
