51 11 185 Removing And Installing/Replacing Side Trim Grille For Bumper Trim (From 03/2005)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Snap out trim grille (1) towards front with special tool 00 9 317 and remove.

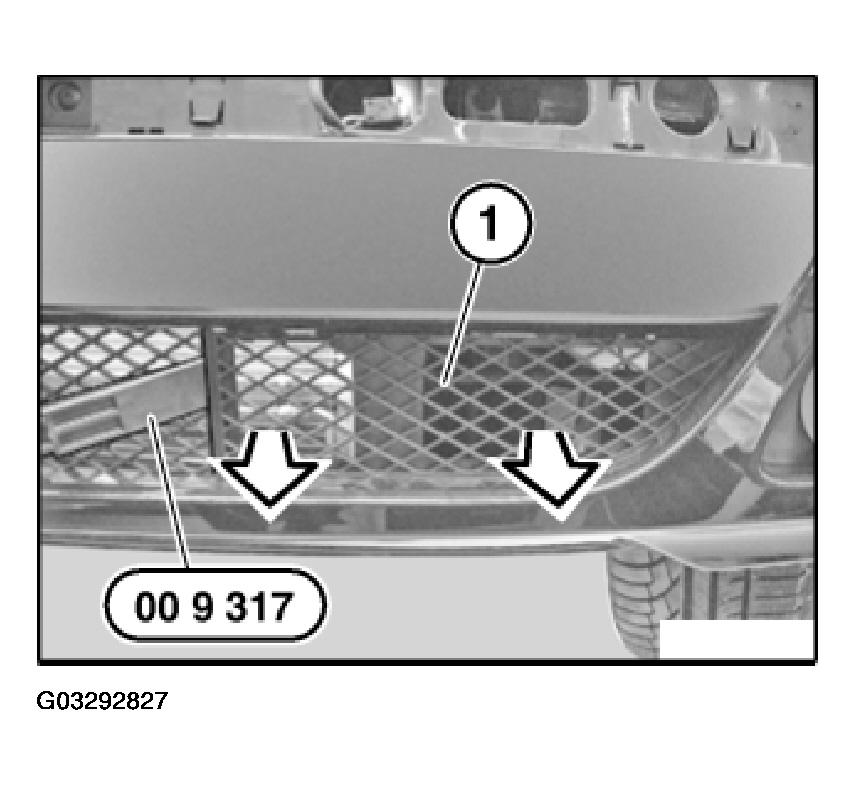

Fig 1: Removing Trim Grille With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim grille (2) must not be damaged.

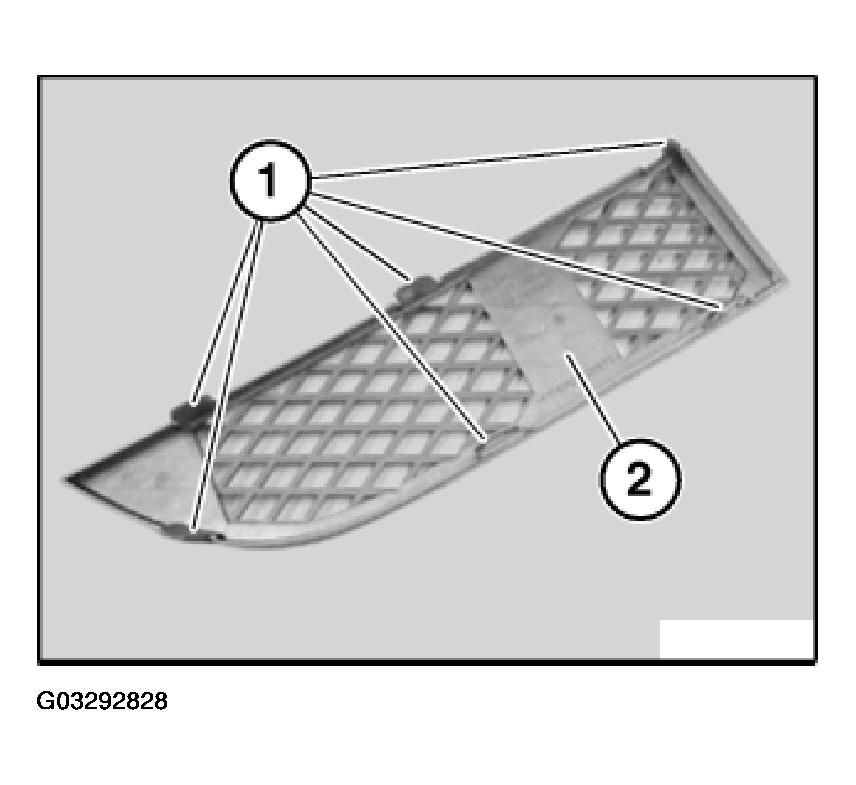

Fig 2: Identifying Catches On Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.
