51 11 158 Replacing Baseplate For License Plate

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both front protective strips. Refer to 51 11 170 REPLACING BODY MOLDING FOR LEFT OR RIGHT BUMPER .
Release screws (1).

Unclip baseplate (2) towards front.

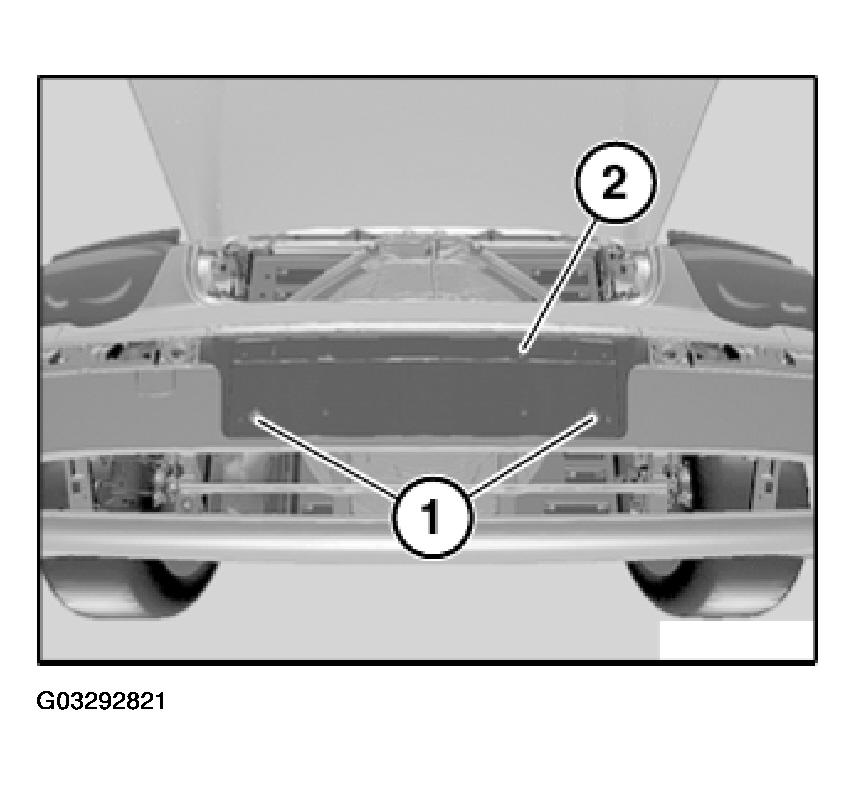

Fig 1: Locating Baseplate Retaining Screws
Courtesy of BMW OF NORTH AMERICA, INC.

If Replacing Version With Chromeline:

Release catches (1) and remove chrome trim from baseplate (2).

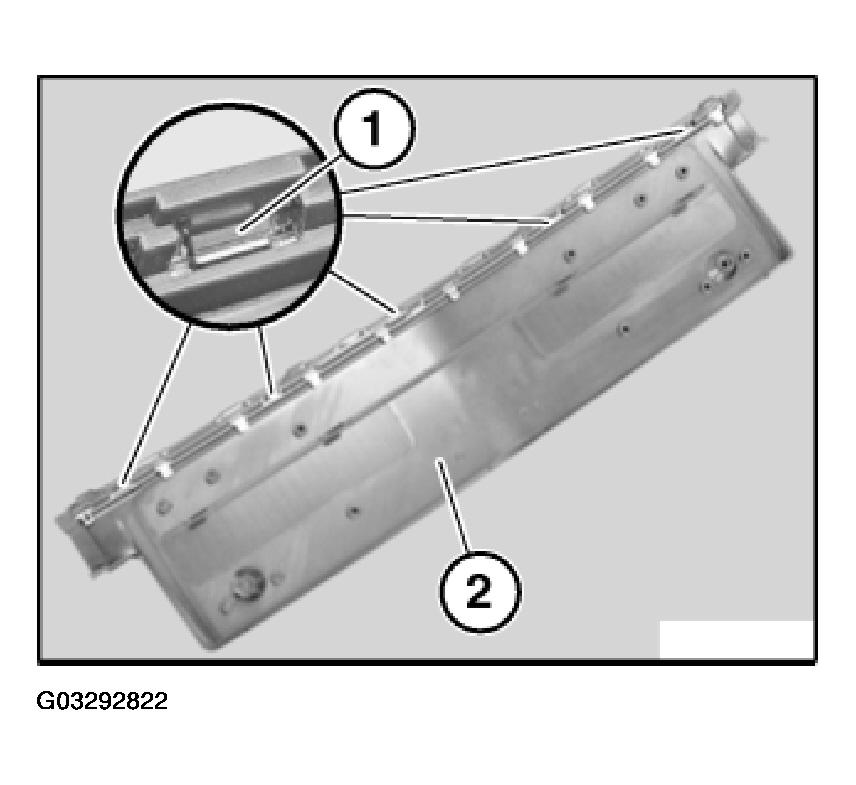

Fig 2: Removing Chrome Trim From Baseplate

Courtesy of BMW OF NORTH AMERICA, INC.
