51 47 140 Removing And Installing/Replacing Panel For Luggage Compartment Partition

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both luggage compartment wheel arch trims. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM and 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Version With Ski Bag:

Remove ski bag.

Version With Rear A/C System With Cooler Box:

Remove cooler box. Refer to 64 11 475 REMOVING AND INSTALLING COMPLETE COOLER BOX .

Release expansion rivets (1).

Remove panel (2).

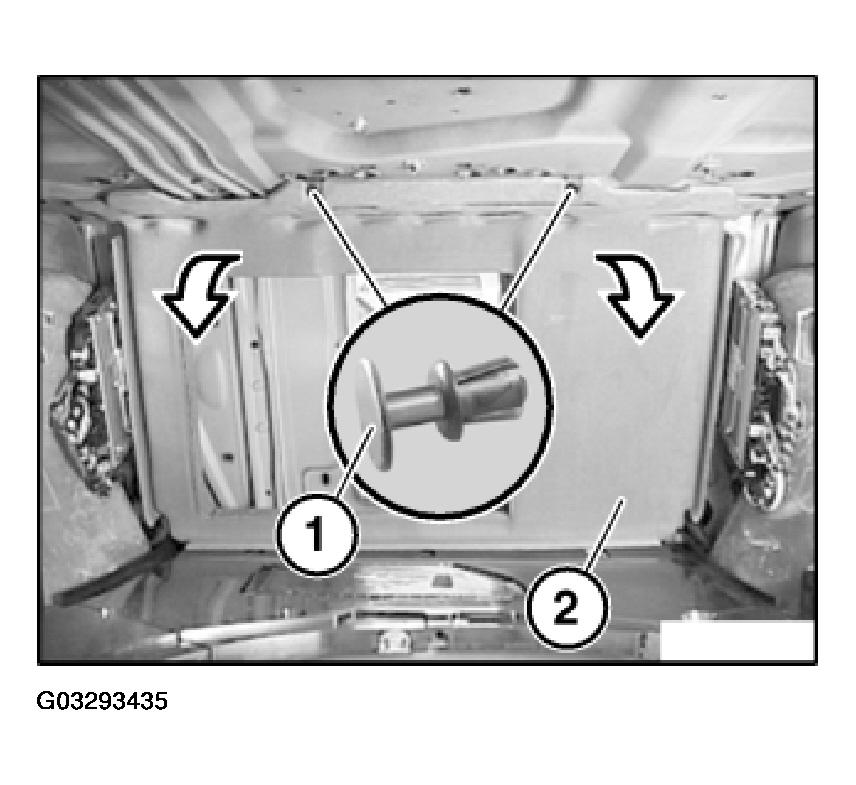

Fig 1: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Ski Bag Or Cooler Box:

Installation:

Foam strip (1) of panel (2) must not be damaged.

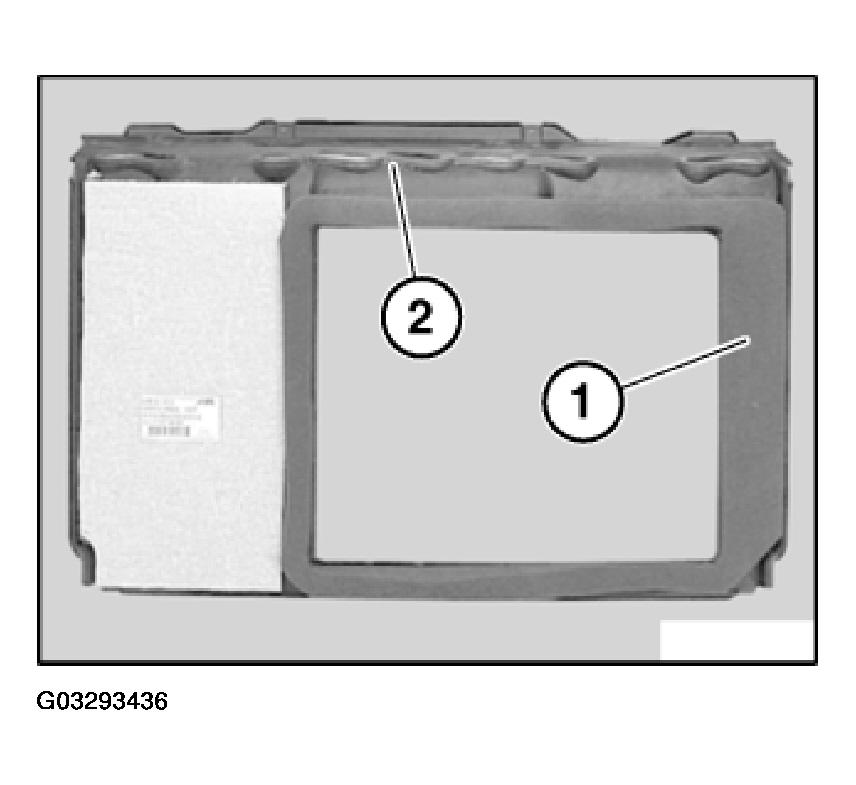

Fig 2: Identifying Foam Strip

Courtesy of BMW OF NORTH AMERICA, INC.
