64 11 475 Removing And Installing Complete Cooler Box

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove cover (optional extra: cooler box). Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

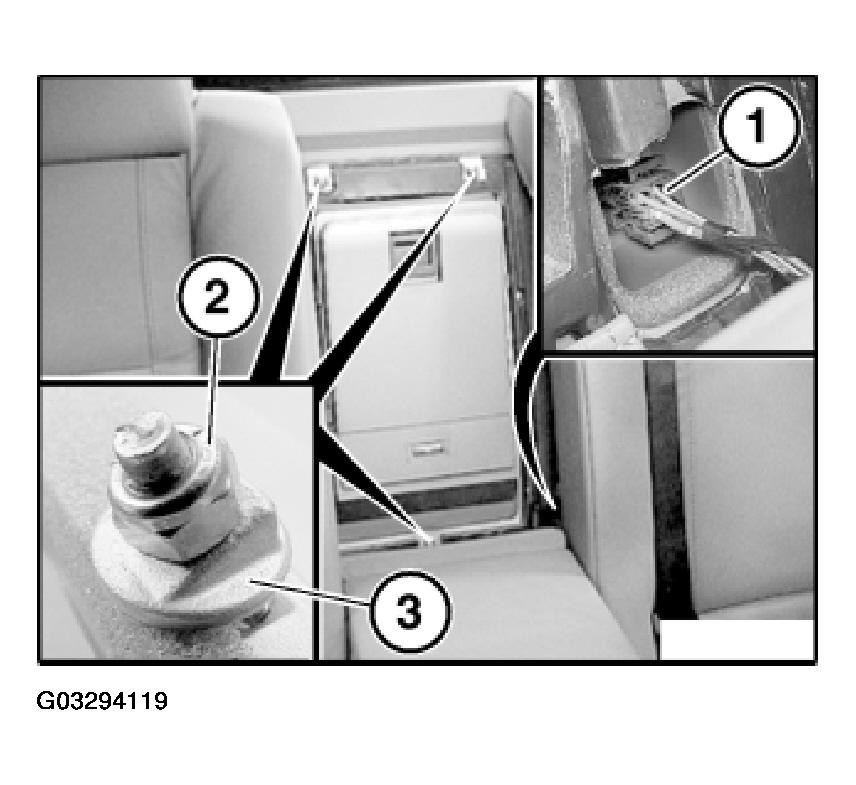

Disconnect plug connection (1).

Unscrew nuts (2).

Remove compensating shims (3).

Installation:

Align cooler box centrally.

Make sure compensating shims (3) are in correct installation position.

Tighten nuts (2) to specified torque: tightening torque, refer to 64 11 5AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

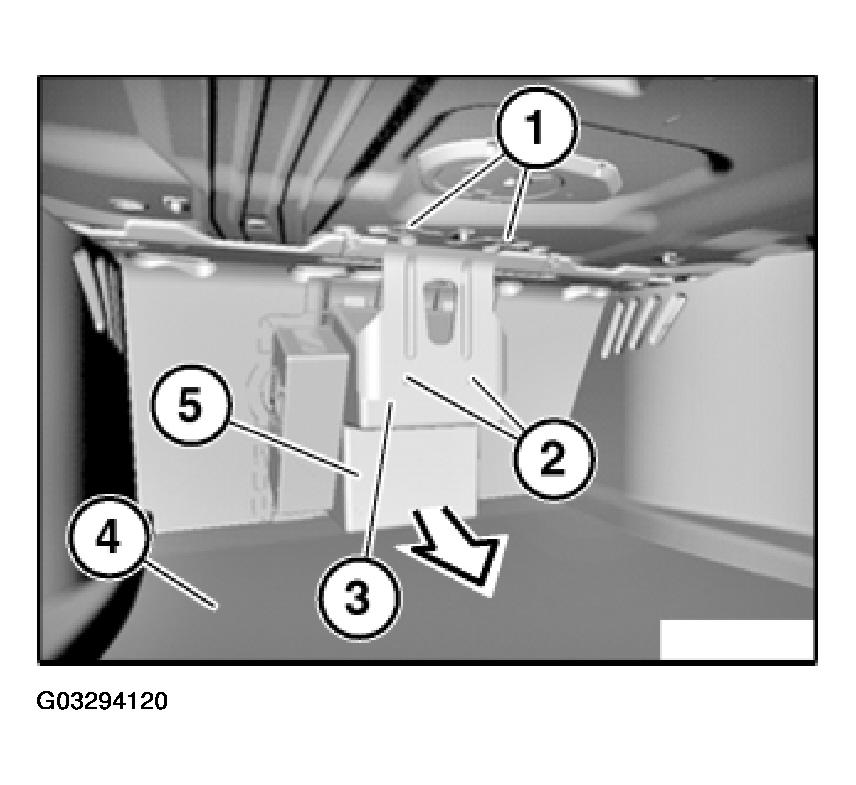

Release screws (1).

Release nuts (2) and remove holder (3).

Gently pull floor inlay (4) towards rear.

Pull out cooler box (5) in direction of arrow.

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
