17 11 370 Removing And Installing/Replacing Cooling Loop For Power Steering

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, and 2005 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove design cover.
Remove fan clutch. Refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN CLUTCH (N73) .
Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (N73) .
Remove front underbody protection.

Recycling:

Catch and dispose of hydraulic fluid.

Observe country-specific waste-disposal regulations.

Draw off hydraulic fluid.

Installation:

Top up hydraulic fluid.

Bleed power steering.

Check fluid level in power steering fluid reservoir; top up if necessary.

Unlock connection (1) on left and detach.

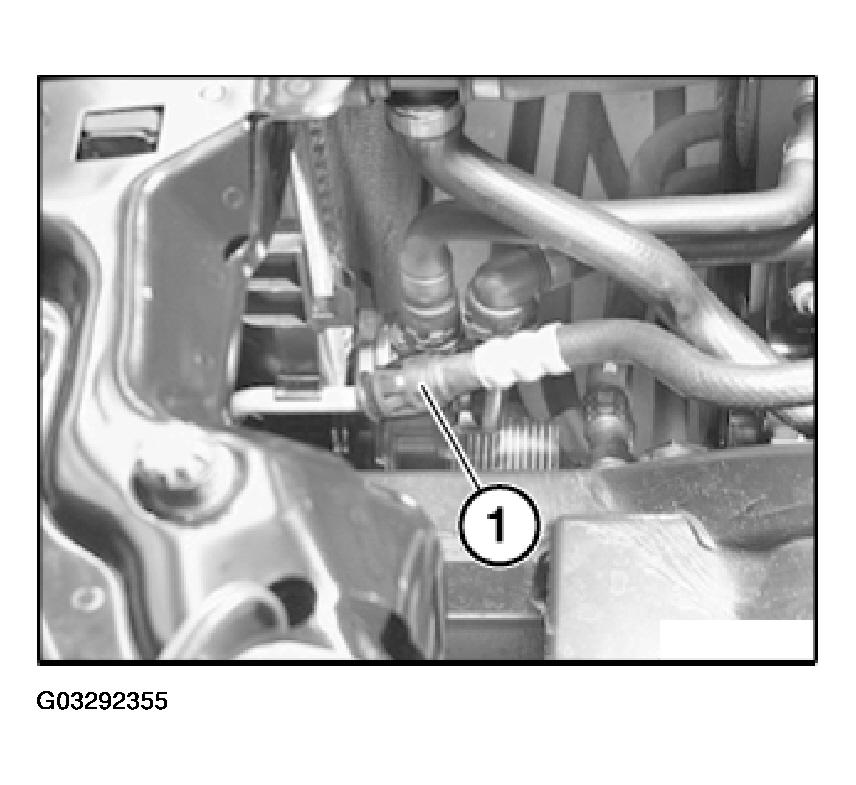

Fig 1: View Of Cooling Loop Connections (Left)

G03292355

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connection (1) on right and detach.

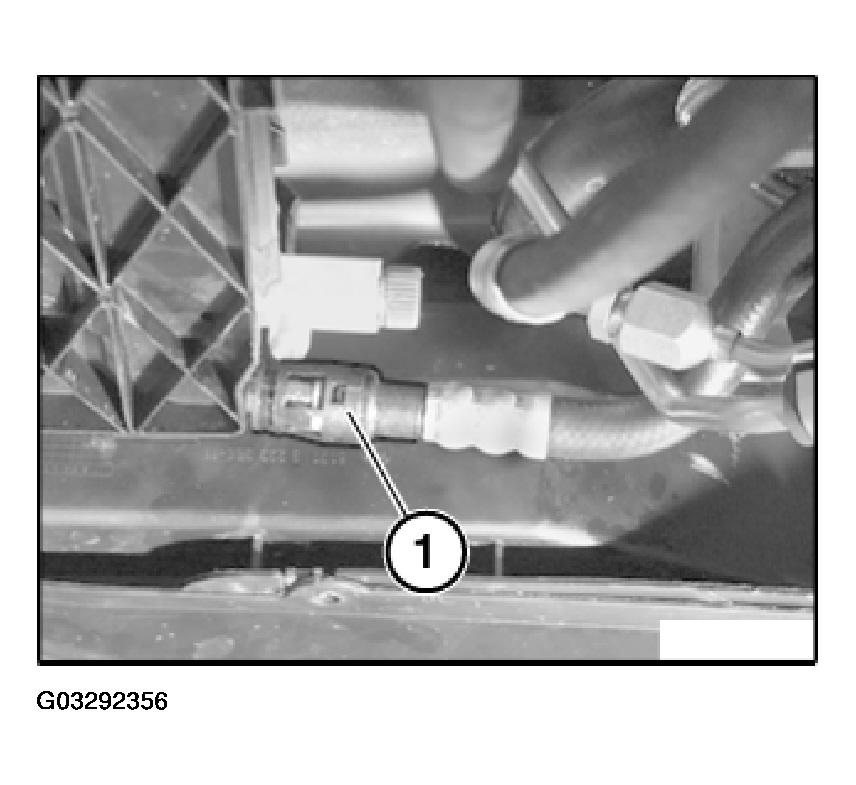

Fig 2: Locating Cooling Loop Connections (Right)

G03292356

Courtesy of BMW OF NORTH AMERICA, INC.

Remove module carrier (1) with radiator and A/C condenser from rubber mounts and push at bottom approx. 5 cm towards rear.

Installation:

Rubber mounts fall out easily, ensure correct installation position.

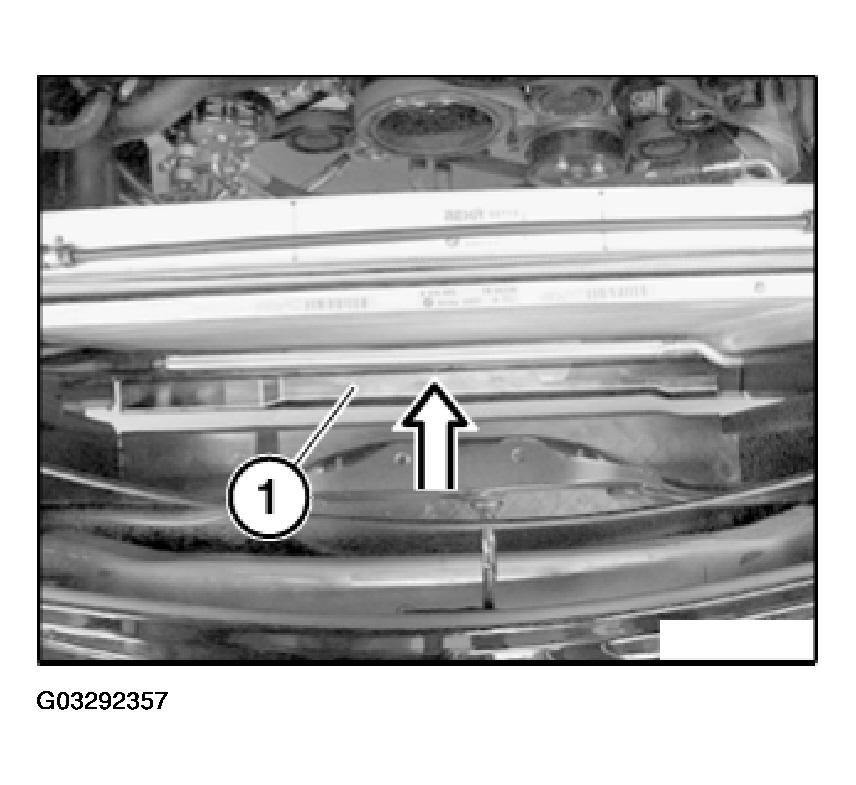

Fig 3: Removing Module Carrier

G03292357

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1) on left.

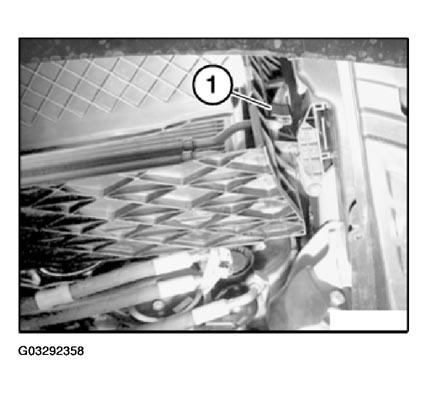

Fig 4: Releasing Cooling Loop Retaining Clip (Left)

G03292358

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clip (1) on right.

Release screw and remove power steering cooling loop (2) towards bottom.

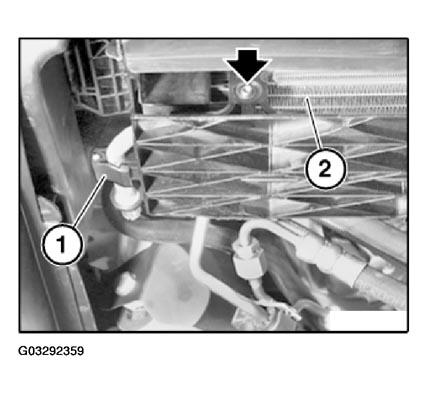

Fig 5: Releasing Cooling Loop Retaining Clip (Right)

G03292359

Courtesy of BMW OF NORTH AMERICA, INC.
