11 23 010 Removing and installing or replacing vibration damper (M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

11 8 119
11 8 200
11 8 210

Necessary Preliminary Tasks:

Unscrew and remove splash guard.
Remove fan impeller with fan clutch and fan cowl. Refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52 / S54 / M52 / M52TU / M54 / M56) .
Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (M52 / S52 / M52TU / M54 / M56) .
Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (M52 / S52 / M52TU / M54 / M56)

Important!

Risk of damage.

Protect cooler against damage.

Version 1

Vibration damper and hub for vibration damper are two parts: Unscrew vibration damper bolts and take off vibration damper.

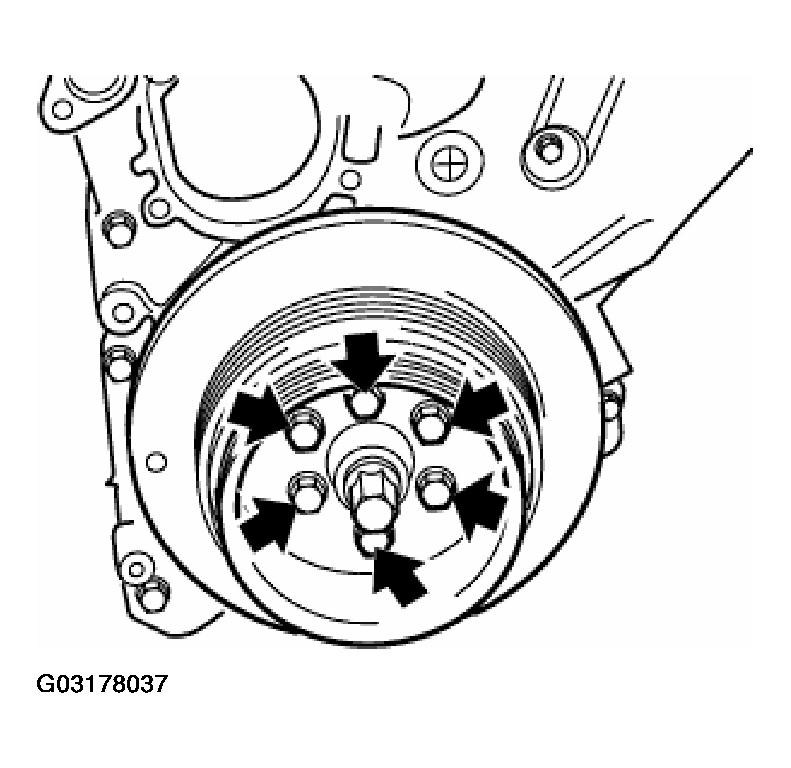

Fig 1: Identifying Vibration Damper Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Vibration damper and hub for vibration damper are two parts:

Installation:

Align locating bore in vibration damper to dowel pin.

Install and tighten down screws.

Tightening torque, refer to 11 22 3AZ in VIBRATION DAMPER .

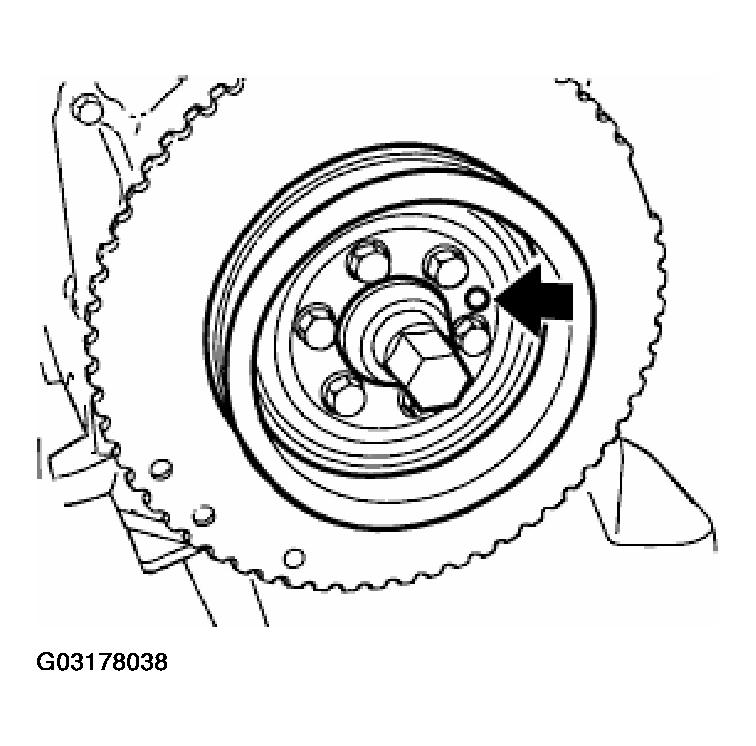

Fig 2: Aligning Locating Bore In Vibration Damper To Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

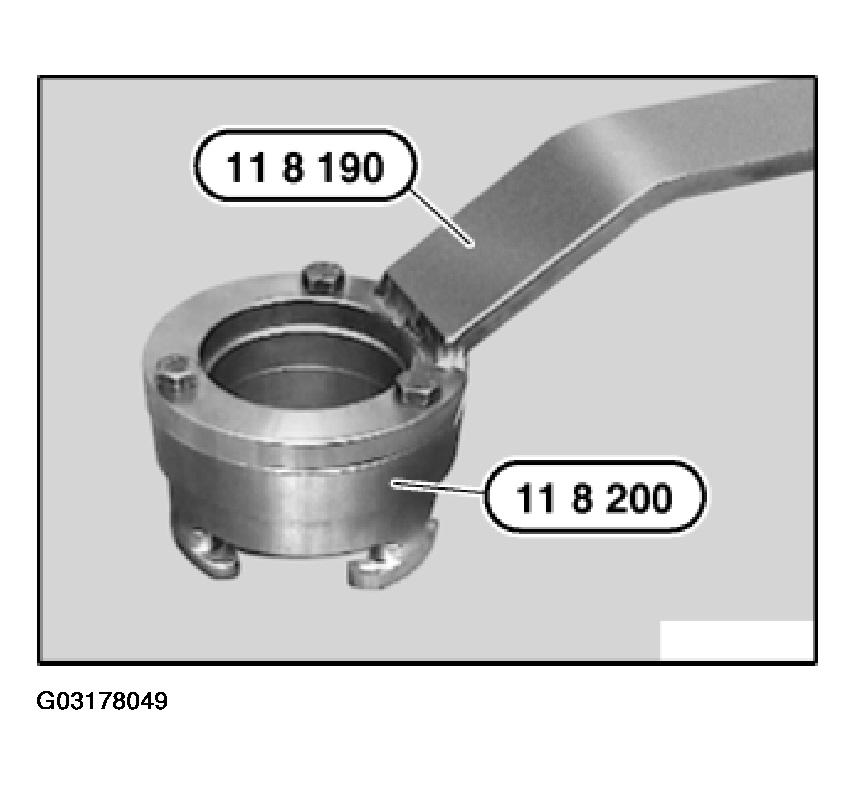

Vibration damper and hub for vibration damper are one part: Screw special tool 11 8 190 to special tool 11 8 200.

Fig 3: Assembling Special Tool 11 8 190 To Special Tool 11 8 200

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

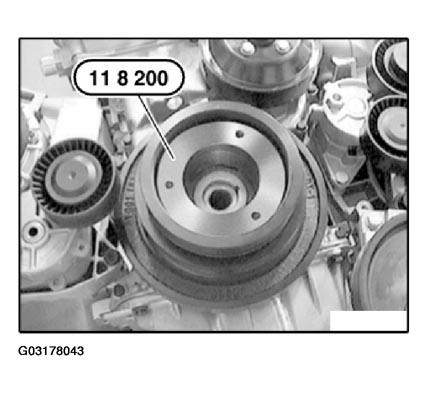

NOTE: Special tool 11 8 200 must snap into place in openings (1).

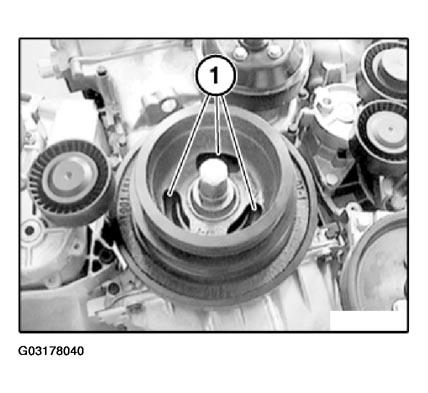

Fig 4: Identifying Openings On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

When releasing and tightening down central bolt, grip special tool 11 8 190 with assistance of a second person.

Version 2

Insert special tool 11 3 200 in openings on vibration damper and turn counterclockwise so that counter-supports snap into place on vibration damper.

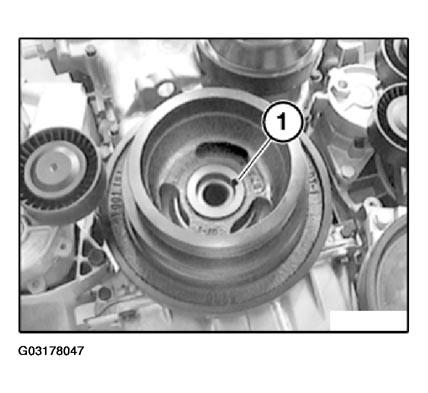

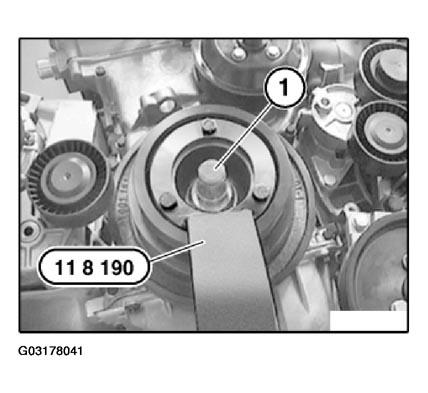

Release central screw (1).

Fig 5: Identifying Central Screw Of Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Feed out special tools 11 8 190 / 11 8 200.

Remove central screw and washer.

Carefully detach vibration damper (1) by hand.

Fig 6: Identifying Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

NOTE: If vibration damper cannot be detached by hand:

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Fig 7: Inserting Special Tool 11 8 200 In Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Screw out spindle (1) on special tool 11 3 210 as far as possible.

Z3 only:

Screw in spindle (1) on special tool 11 8 210 approx. 15 mm and screw out again only after installation between special tool 11 8 200 and cooler.

Fig 8: Identifying Spindle On Special Tool 11 3 210

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Important!

Risk of damage.

Protect cooler against damage.

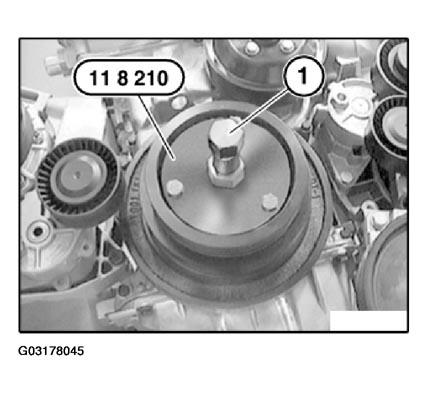

Carefully install special tool 11 8 210.

Screw special tool 11 8 210 to special tool 11 8 200.

Detach vibration damper by turning spindle (1) on special tool 11 8 210.

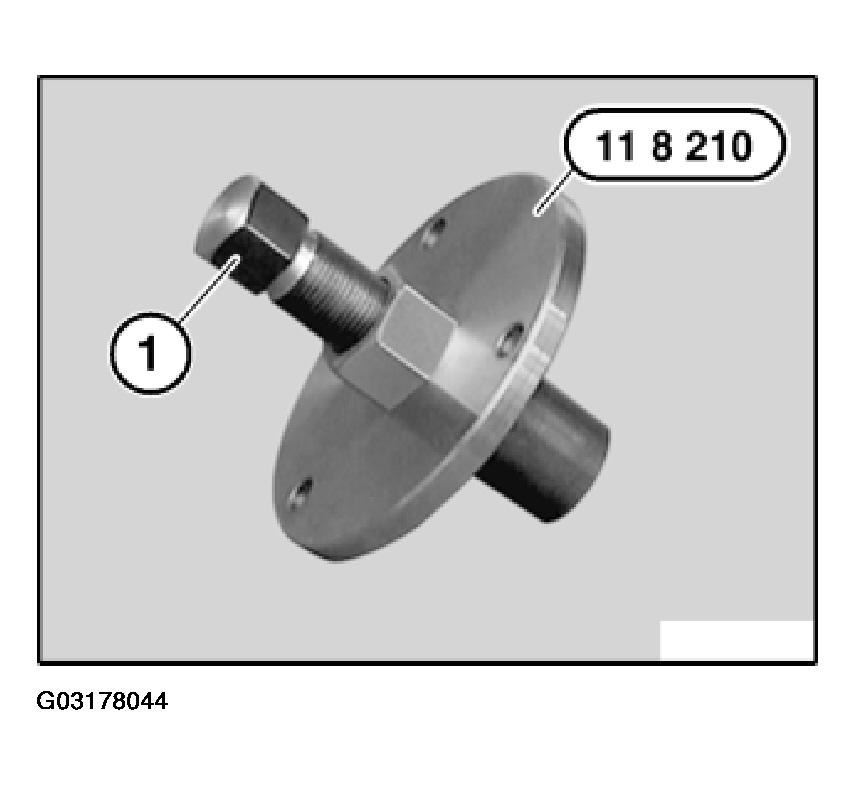

Fig 9: Identifying Spindle On Special Tool 11 8 210

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

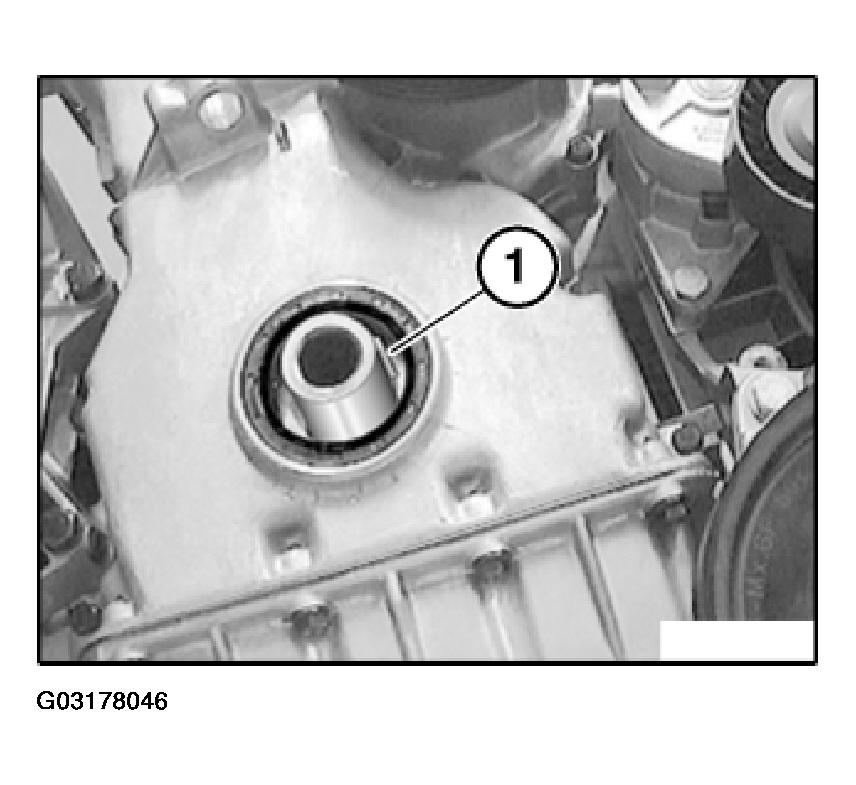

Check featherkey (1) for damage and correct installation position.

Fig 10: Checking Featherkey For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial seal in lower timing case cover. Refer to 11 14 141 REPLACING RADIAL SEAL IN LOWER TIMING CASE COVER .

Version 2

Installation:

Align groove (1) in vibration damper to featherkey.

Fit vibration damper.

Fig 11: Aligning Groove In Vibration Damper To Featherkey

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

Replace central screw (1).

Install central screw and washer.

Fig 12: Identifying Vibration Damper Central Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 13: Assembling Special Tool 11 8 190 To Special Tool 11 8 200

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Tighten down central screw (1).

Fig 14: Tightening Central Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 11 23 2AZ in VIBRATION DAMPER .
