11 28 050 Replacing A/C compressor drive belt (M52 / S52 / M52TU / M54 / M56)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the drive belt is to be subsequently reused: Mark direction of travel and reinstall drive belt in same direction of travel.

Necessary Preliminary Tasks:

If necessary, remove splash guard.

Model With Hydraulic Drive Belt And Tension Jack:

Remove the dust cab. Push back belt tensioner at bolt connection of guide pulley and remove drive belt.

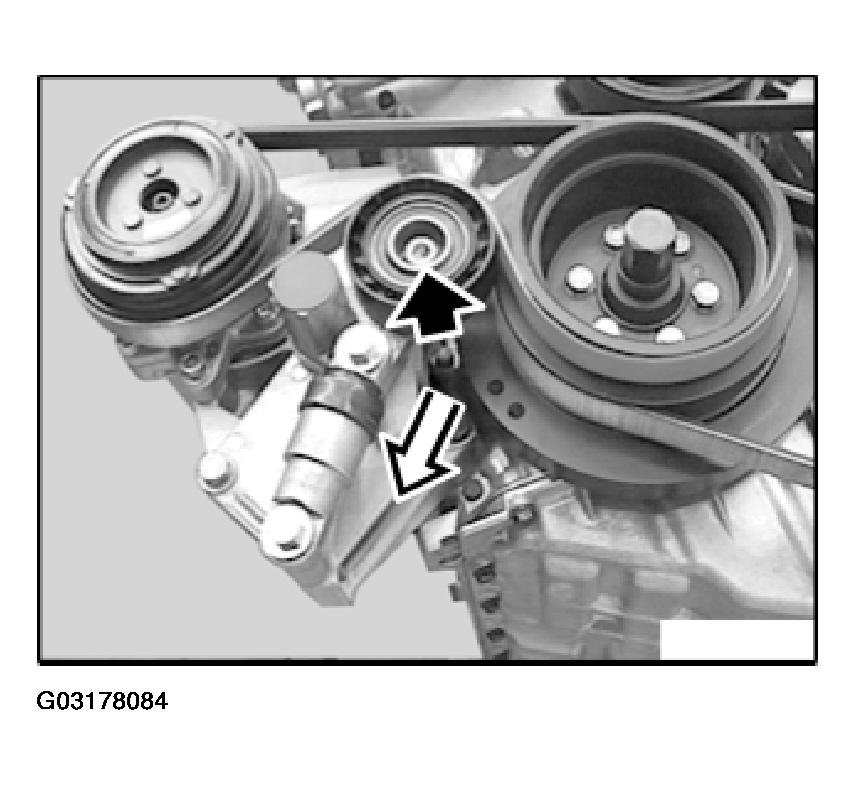

Fig 1: Pushing Back Belt Tensioner At Bolt Connection Of Guide Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

Model With Mechanical Drive Belt And Tension Jack:

Press back drive belt tensioner at hexagon head or Torx socket and remove drive belt.

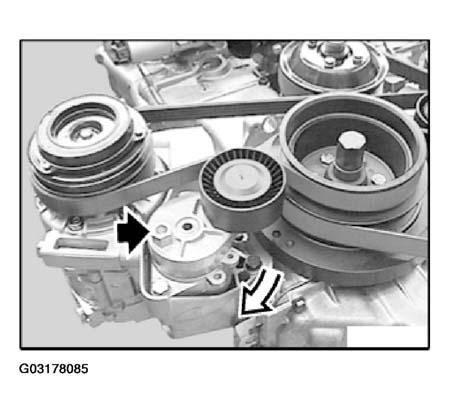

Fig 2: Pressing Back Drive Belt Tensioner At Hexagon Head Or Torx Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Drive belt must be replaced if fouled with hydraulic fluid.

Installation:

Check drive belt for coolant and oil residues, replace if necessary.

Install drive belt, make sure it is correctly positioned on belt pulleys.
