11 14 110 Removing and installing lower timing case cover (M52 / S52 / M52TU / M54)

Remove VANOS adjustment unit. Refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .

Remove coolant thermostat. Refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (M52TU / M54 / M56) .

Remove alternator drive belt and drive belt tensioner.

Brace pulley for water pump with drive belt and unfasten screws.

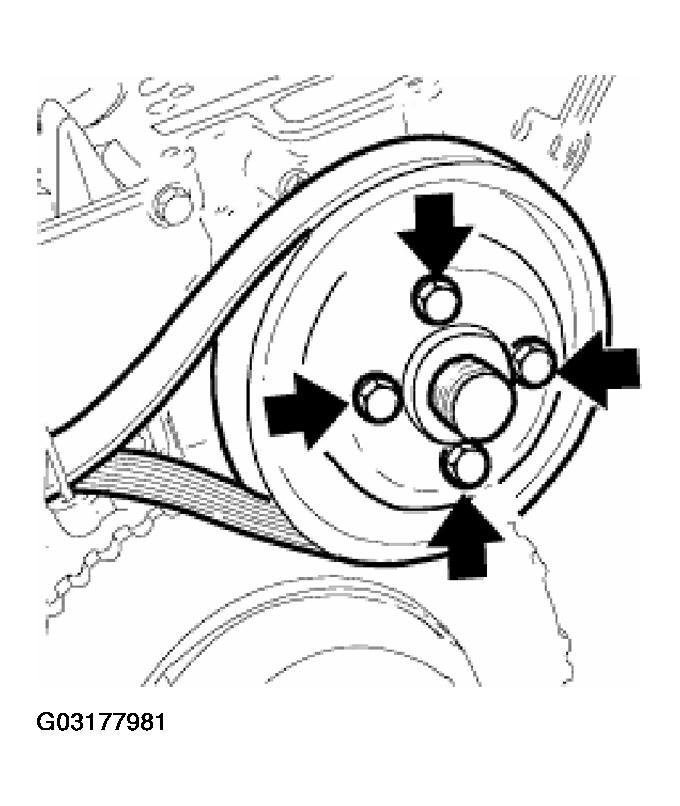

Fig 1: Identifying Pulley Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING OR REPLACING VIBRATION DAMPER (M52TU / M54 / M56) .

Version where vibration damper and hub are two parts: Remove hub for vibration damper.

Remove oil sump.11 13 000 REMOVING AND INSTALLING OIL SUMP (M52 / S52 / M52TU / M54)  or 11 13 000 REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (M52TU / M54 / M56) .

Drive out dowel pins from timing case cover towards rear.

(Mandrel diameter less than 5 mm)

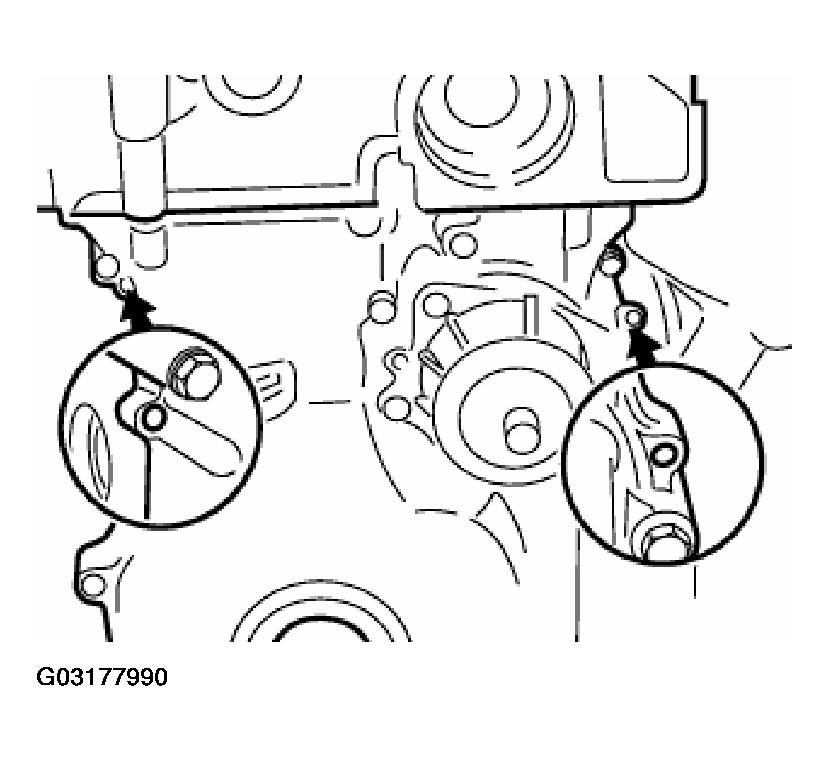

Fig 2: Driving Out Dowel Pins From Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew timing case cover to cylinder head bolts.

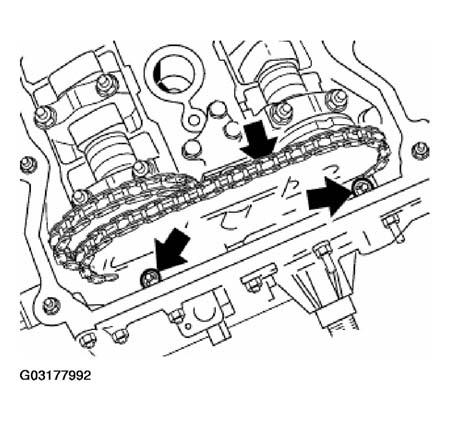

Fig 3: Removing Timing Case Cover To Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove timing case cover.

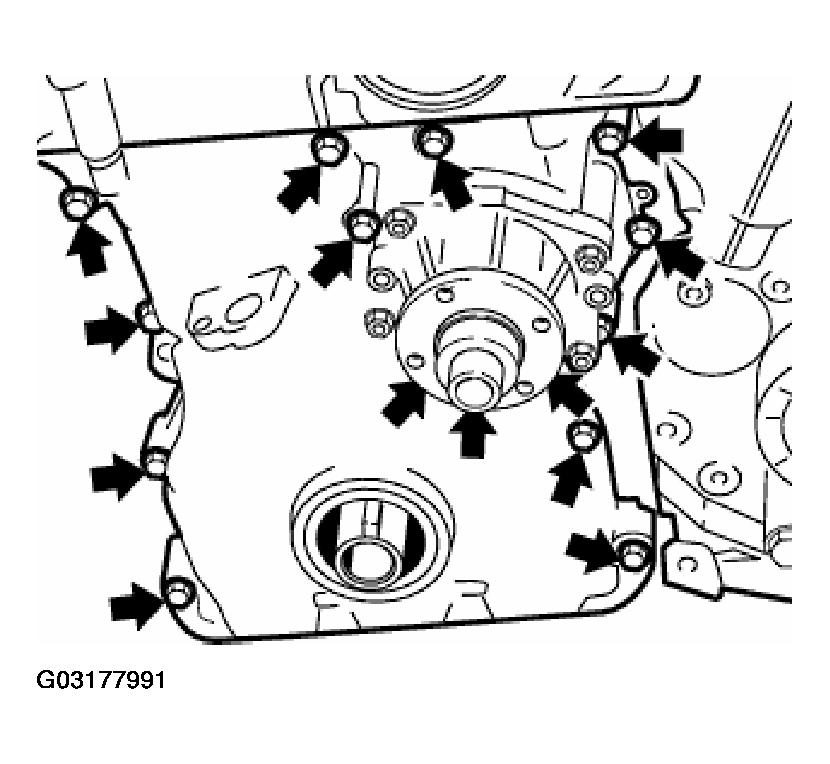

Fig 4: Removing Timing Case Cover And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Check cylinder head gasket for damage; if necessary, remove cylinder head and replace cylinder head gasket.

Installation:

Clean sealing surfaces.

Drive alignment pins into timing case cover until they protrude approx. 2 to 3 mm.

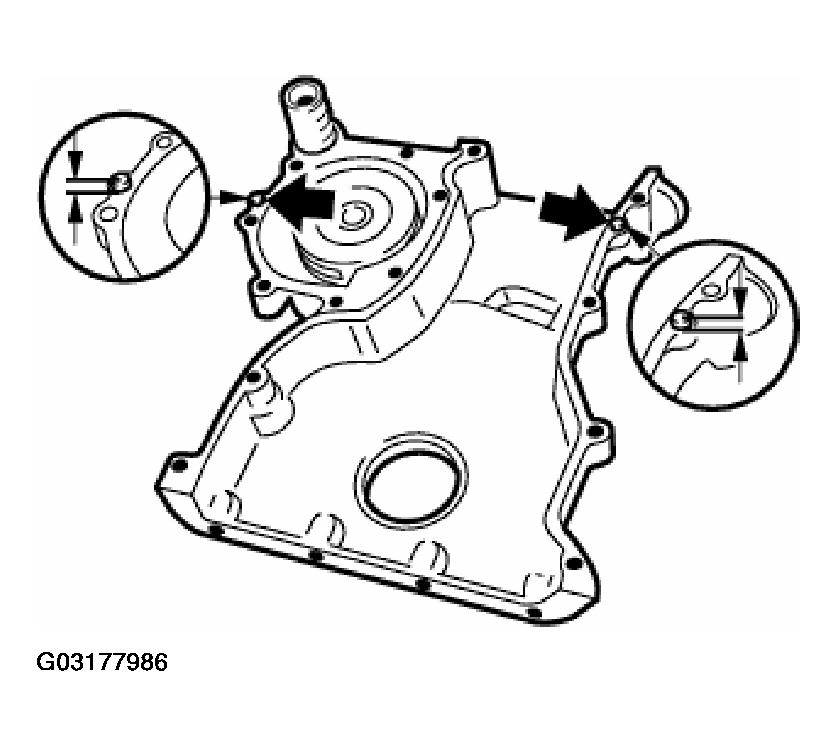

Fig 5: Installing Alignment Pins Into Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure new seals to timing case cover with a little grease.

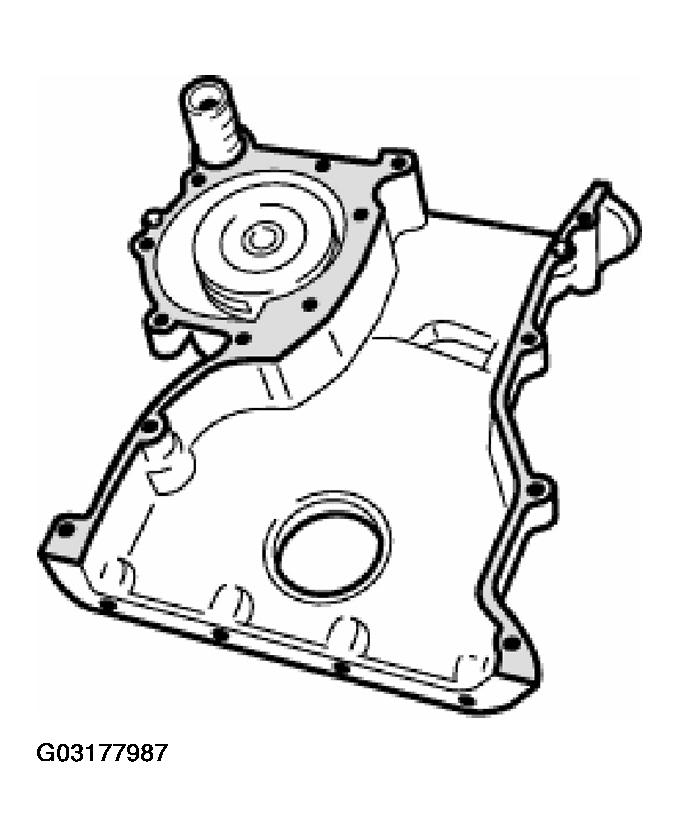

Fig 6: Securing Seals To Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing faces clean and free of seal debris.

Apply Drei Bond 1209 sealing compound at following points:

• A bead at the transitions to the cylinder head gasket on the left and right.
• Thinly and evenly to the entire sealing face of the timing case cover to the cylinder head gasket.

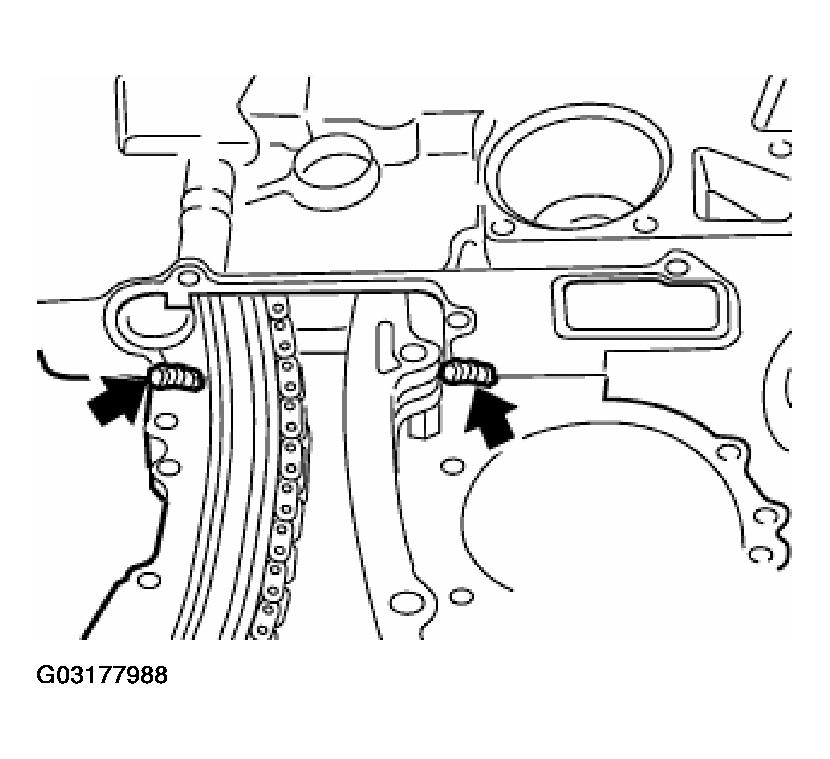

Fig 7: Applying Sealant To Sides Of Cylinder Head Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install timing case cover, insert all screws and initially tighten to approx. 5 Nm.

Fig 8: Install Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive in dowel pins from front until flush.

Fig 9: Driving In Dowel Pins From Front Until Flush

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fully tighten all screws in alternate sequence.

Tightening torque, refer to 11 14 1AZ in 11 14 CASE COVERS .

Important!

Once all screws have been tightened down, retighten them in a second operation.

Fig 10: Tightening Screws In Alternate Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws, tighten screw connection for timing case cover to cylinder head.

Fig 11: Installing Screws For Timing Case Cover To Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial seal in lower timing case cover. Refer to 11 14 141 REPLACING RADIAL SEAL IN LOWER TIMING CASE COVER .

Assemble engine.
