Crimping Contact Sleeves For Fan Connectors 4 MM2 And Ignition Cable Contacts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

The special tool 12 1 081 (crimping tool) in conjunction with 12 1 083 (matrix) are used to attach the ignition cable contacts and to crimp the contact sleeves 4 mm² for fan connectors.

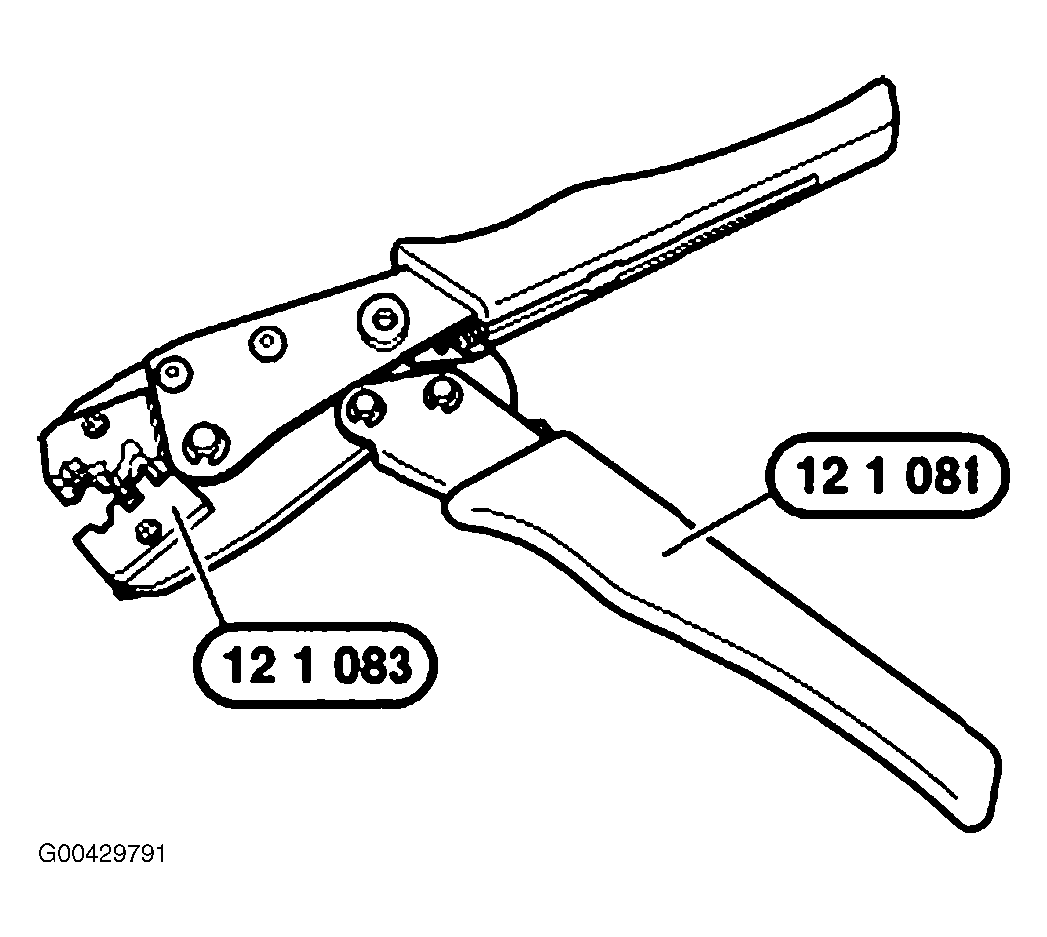

Fig 1: Identifying 12 1 081 (Crimping Tool) And 12 1 083 (Matrix)

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to repair instructions:

61 13 SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

Releasing special tool 12 1 081:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

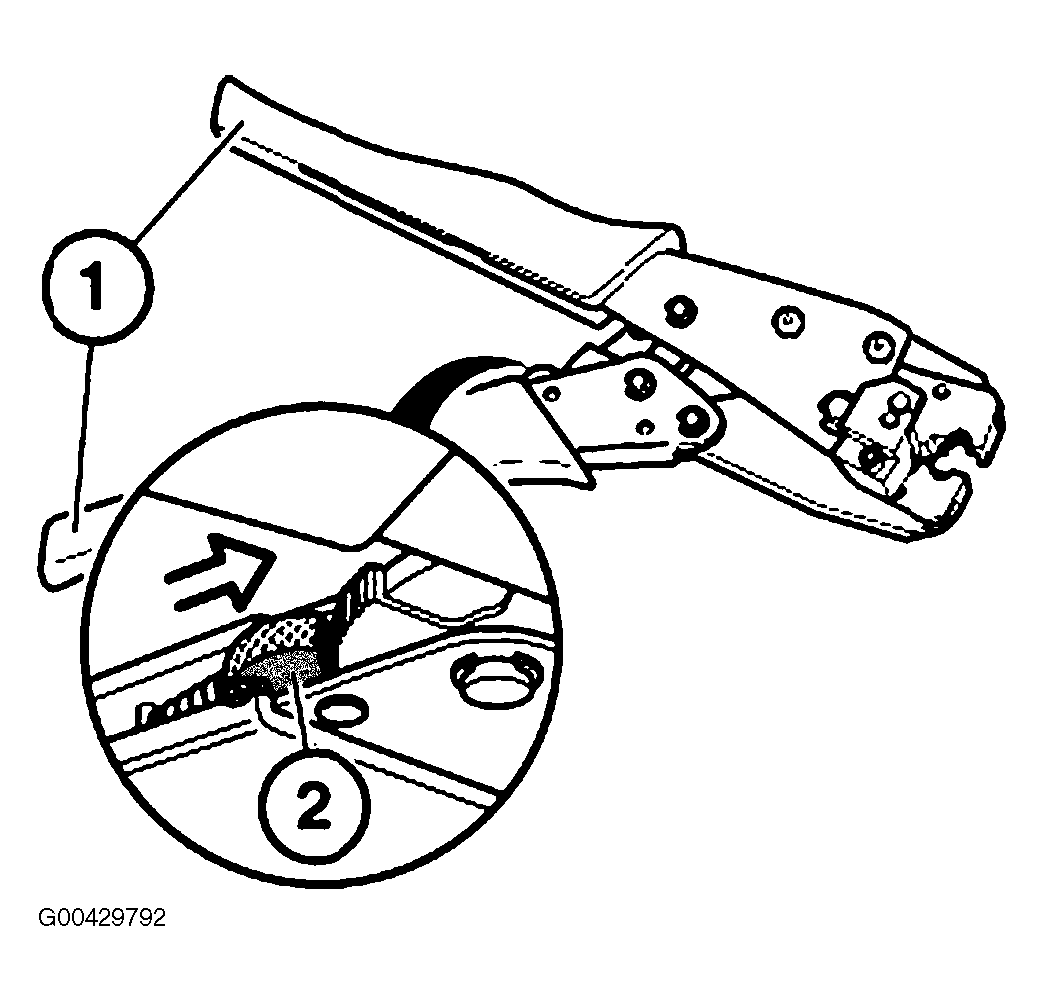

Fig 2: Squeezing Grips (1) Lightly And Pushing Unlocking Lever (2) In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

OR:

Compress handles as far as they will go, tool unlocks automatically.

Insert contact sleeve 4 mm² in nest with lock (1) as far as it will go.

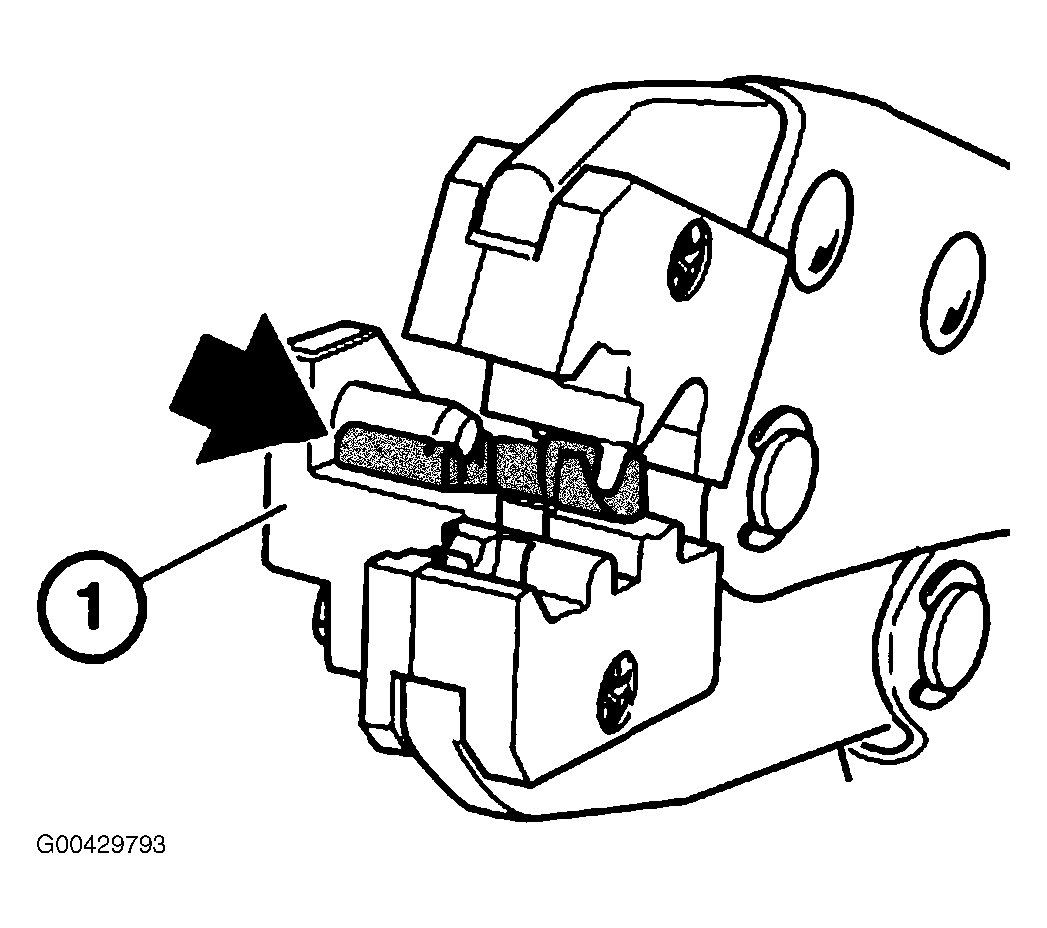

Fig 3: Inserting Contact Sleeve 4 MM2 In Nest With Lock (1) As Far As It Will Go

Courtesy of BMW OF NORTH AMERICA, INC.

Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

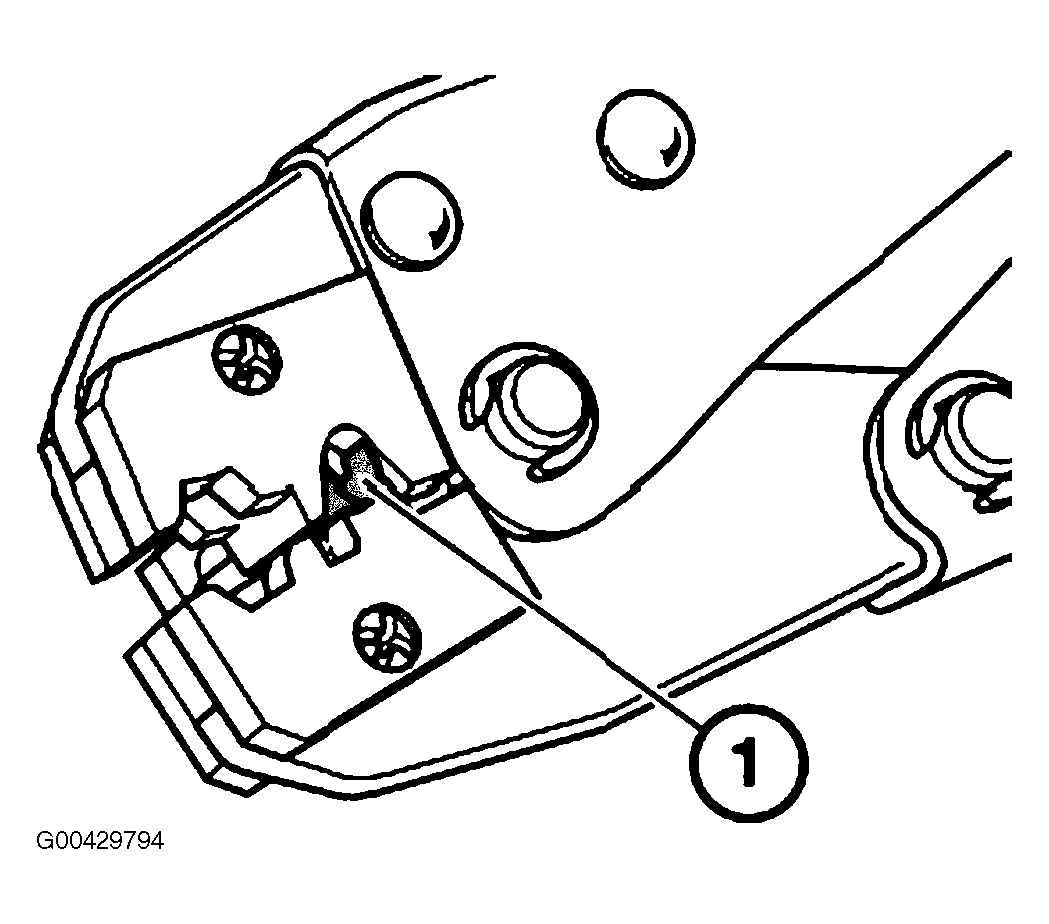

Fig 4: Preloading Contact By Squeezing Matrix In Crimping Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables, refer to 61 13 CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES .

Insert stripped end of wire (1) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

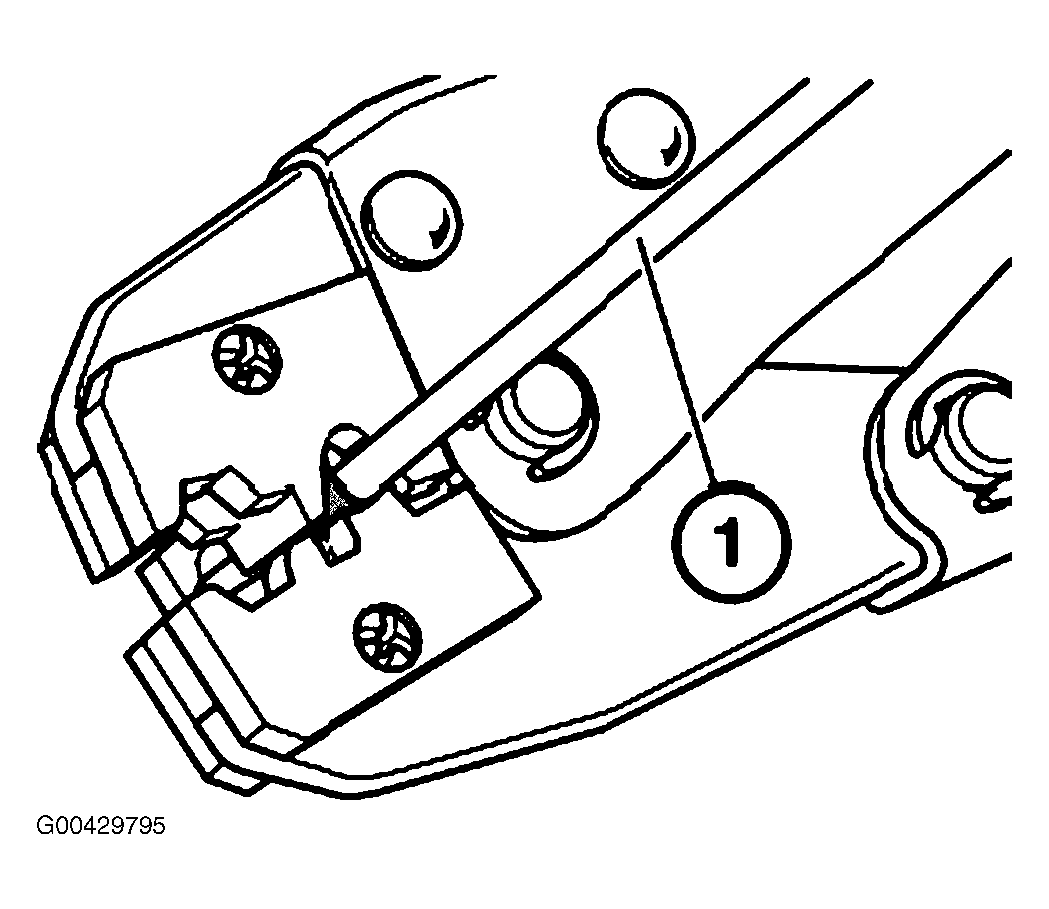

Fig 5: Inserting Stripped End Of Wire (1) In The Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Compress crimping tool as far as it will go.

Crimping tool unlocks automatically.

Take contact out of crimping tool.
