61 13 Special tools for wiring harness repairs

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63) .

61 1 150
61 1 190
61 4 320
61 8 084
61 9 020
61 9 029
61 9 041
61 9 042
61 9 043
61 9 044

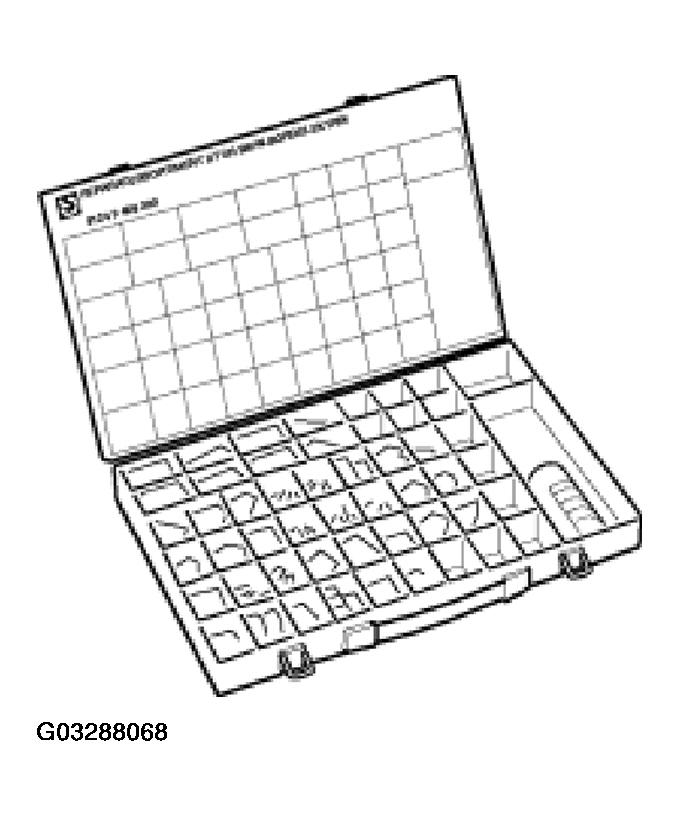

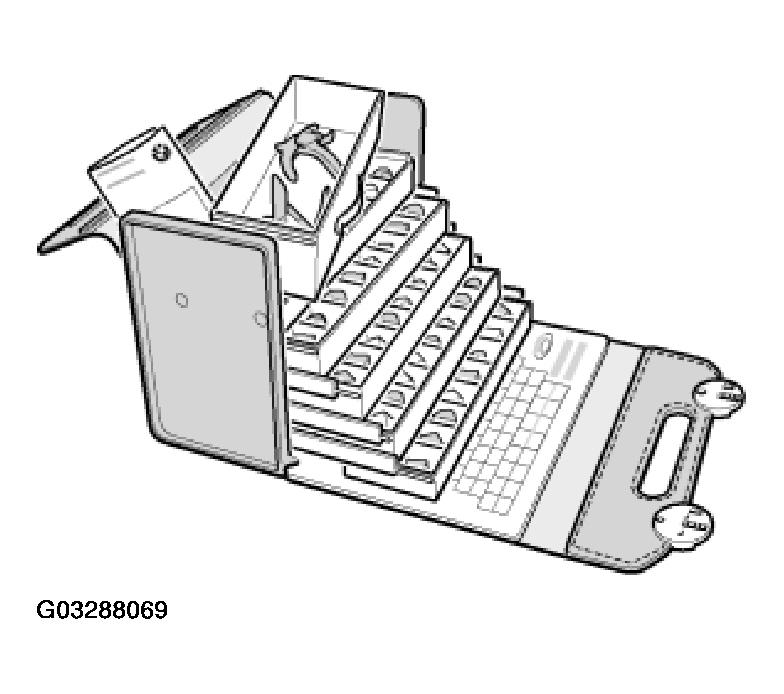

Repair ranges I, II, III for vehicle electrical system

Order No.: 81 24 9 408 080
Order No.: 81 24 9 408 300
Order No.: 81 24 9 408 400

NOTE: Operating instructions for the special tools contained in TIS article, refer to "Tool for wiring harness repair, repair range I, II, III", special tool 61 8 084.

Fig 1: Identifying Wiring Harness Repair Special Tools (1 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

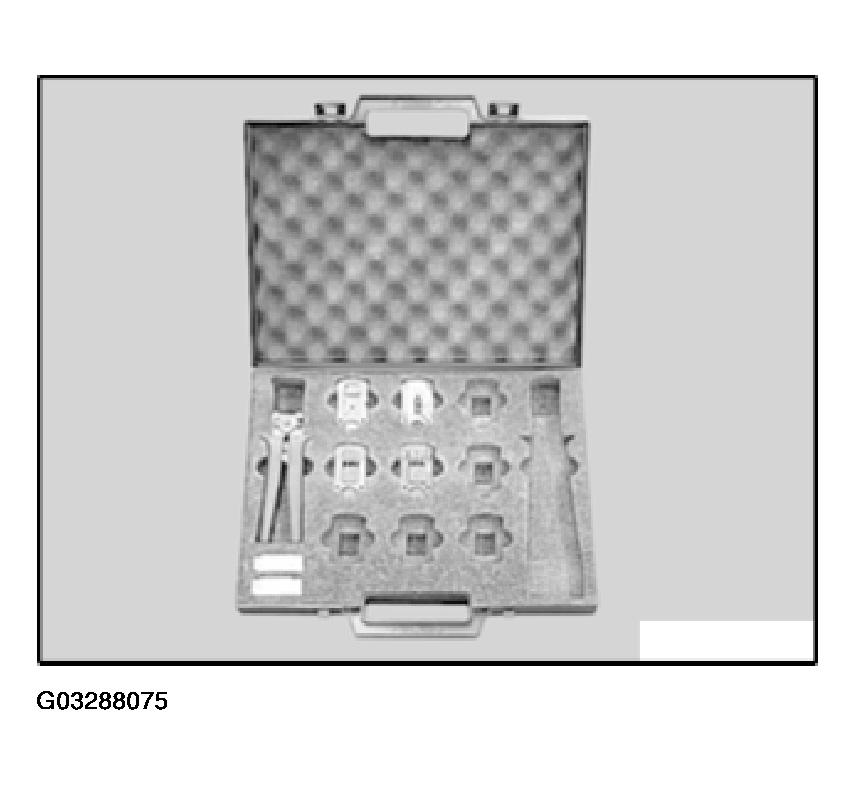

Repair range IV for vehicle electrical system, special tool 61 9 020:

Contents:

Special tool 61 9 041 (hand pliers)
Special tool 61 9 042 (matrix)
Special tool 61 9 043 (wire stripper)
Special tool 61 9 044 (matrix)

Fig 2: Identifying Wiring Harness Repair Special Tools (2 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

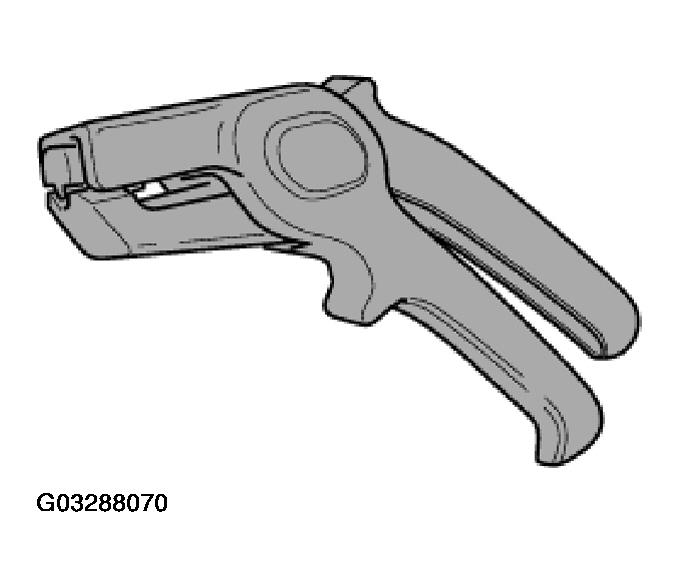

Special tool 61 9 043 (wire stripper with wire cutter) for cutting and stripping wires.

Handling:

Cutting to length and stripping insulating from cables, refer to 61 13 CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES .

Fig 3: Identifying Wiring Harness Repair Special Tools (3 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

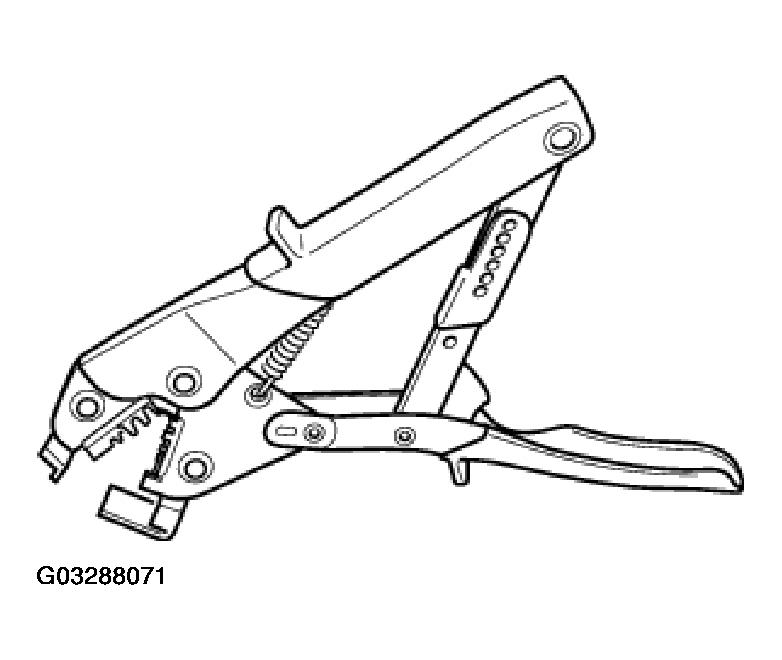

Special tool 61 9 041 (hand pliers) with special tool 61 9 042 (matrix) for crimping connectors and contact tubes for fan connectors up to a wire cross-section of 2.5 mm2 and for pushing on contact tubes for fan connectors.

Handling:

Crimping stop parts (contacts), refer to 61 13 CRIMPING ON STOP PARTS .

Fan connector for retrofitting/repairs, refer to 61 13 INSTALLING FAN CONNECTOR FOR RETROFITTING/REPAIRS .

Fig 4: Identifying Wiring Harness Repair Special Tools (4 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 9 041 (hand pliers) with special tool 61 9 044 (matrix) for crimping cable guide and strain relief device on antenna elbow plug.

Handling:

Antenna elbow plug on radio receiver, refer to 61 13 ... ANTENNA ELBOW PLUG ON RADIO RECEIVER .

Fig 5: Identifying Wiring Harness Repair Special Tools (5 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

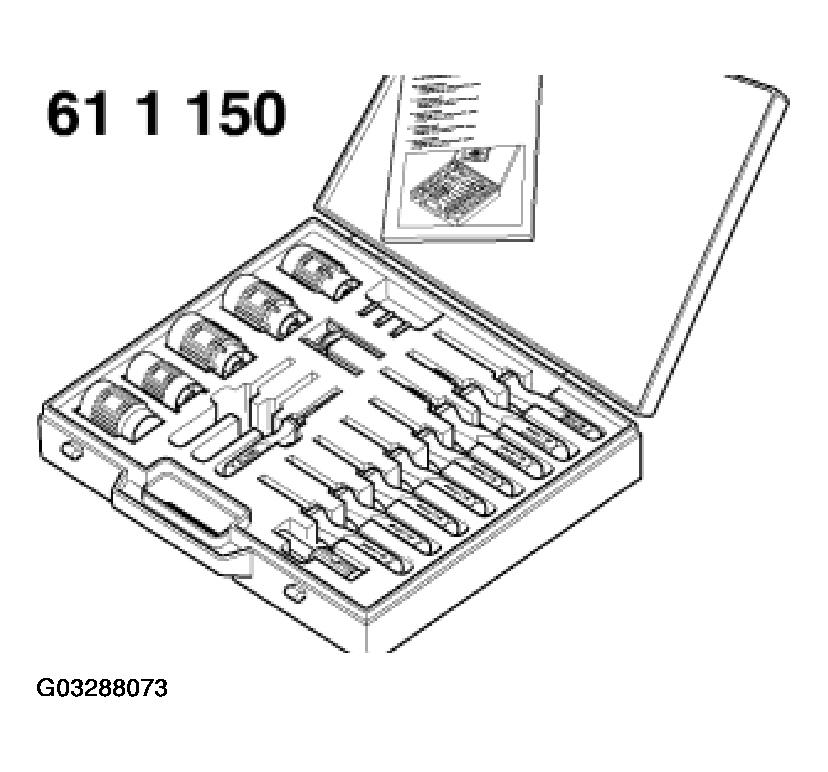

Special tool 61 1 150 (release and pressing-out tool) for:

releasing round plug housings
releasing relay carriers
pressing out contacts
removing indicator lights

Fig 6: Identifying Wiring Harness Repair Special Tools (6 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Handling:

Opening plug housings and removing contacts of different plug systems, refer to 61 13 ... OPENING PLUG HOUSINGS AND REMOVING CONTACTS OF DIFFERENT PLUG SYSTEMS .

Repair kit for ignition cables and for crimping fan connector receptacles 4 mm²

Handling:

Crimping stop parts (contacts), refer to 61 13 CRIMPING ON STOP PARTS .

Service Information 1 03 89 (037)

Fig 7: Identifying Wiring Harness Repair Special Tools (7 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

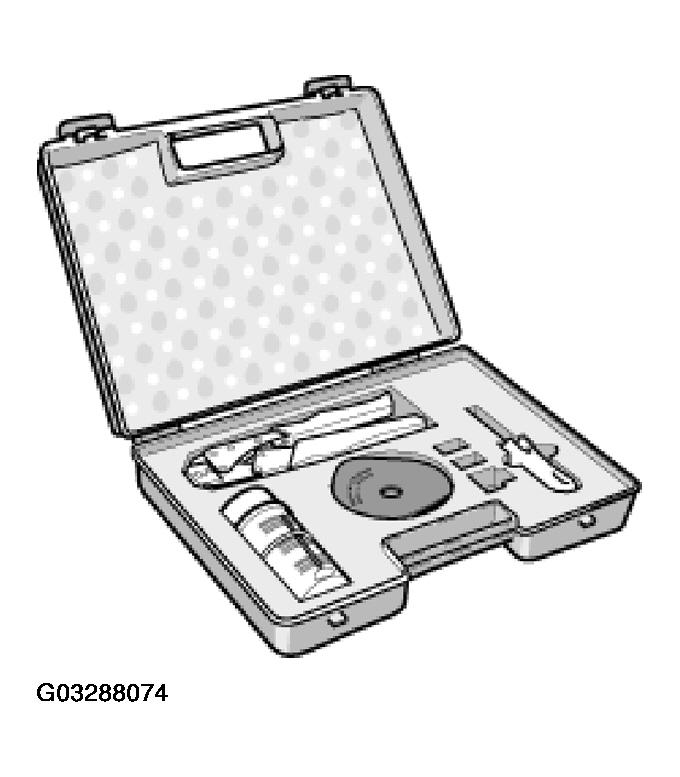

Special tool 61 4 320 (crimping set with pliers) for:

Cutting to length and stripping insulation from optical fibers, refer to 61 13 ... CUTTING OFF, STRIPPING INSULATION AND CUTTING OPTICAL FIBRES TO LENGTH .
Crimping optical fibers, refer to 61 13 ... CRIMPING OPTICAL FIBRES .
Crimping MPQ contacts, refer to 61 13 ... CRIMPING MICRO POWER QUADLOCK CONTACTS (MPQ) .
Crimping MQS contacts, refer to 61 13 ... CRIMPING MICRO QUADLOCK SYSTEM CONTACTS (MQS) .

Fig 8: Identifying Wiring Harness Repair Special Tools (8 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

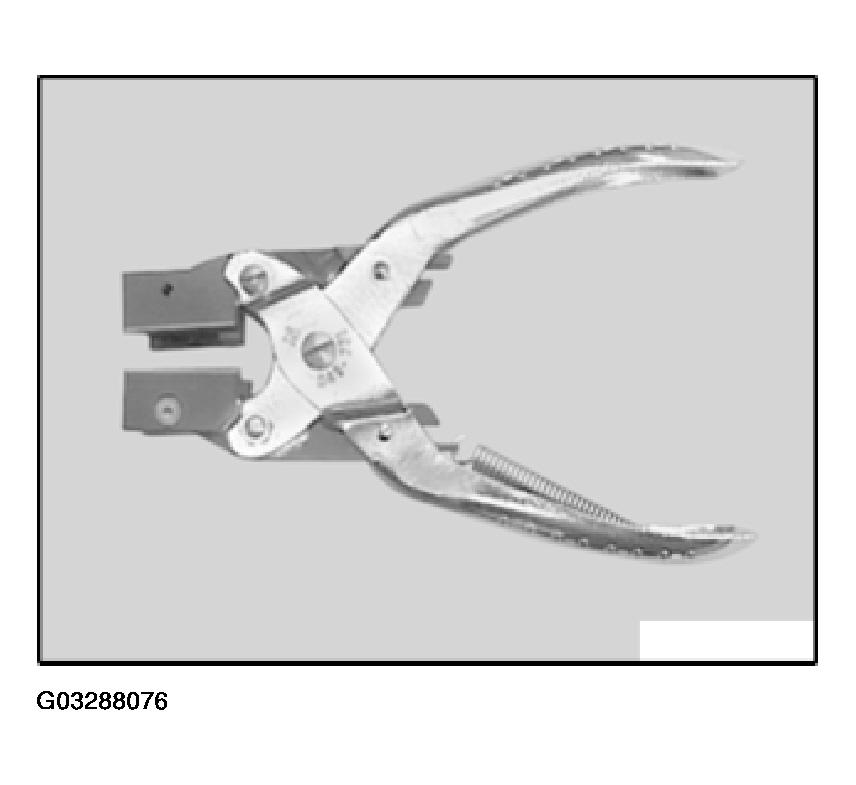

Special tool 61 1 190 pliers for insulation displacement connector for repairing ribbon cables.

Fig 9: Identifying Wiring Harness Repair Special Tools (9 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Handling:

Repairing ribbon cables, refer to 61 13 ... REPAIRING RIBBON CABLES .
