61 13 Cutting To Length And Stripping Insulation From Cables

Special tool 61 9 043 (cable stripper with wire cutter) for cutting and stripping insulation from cables.

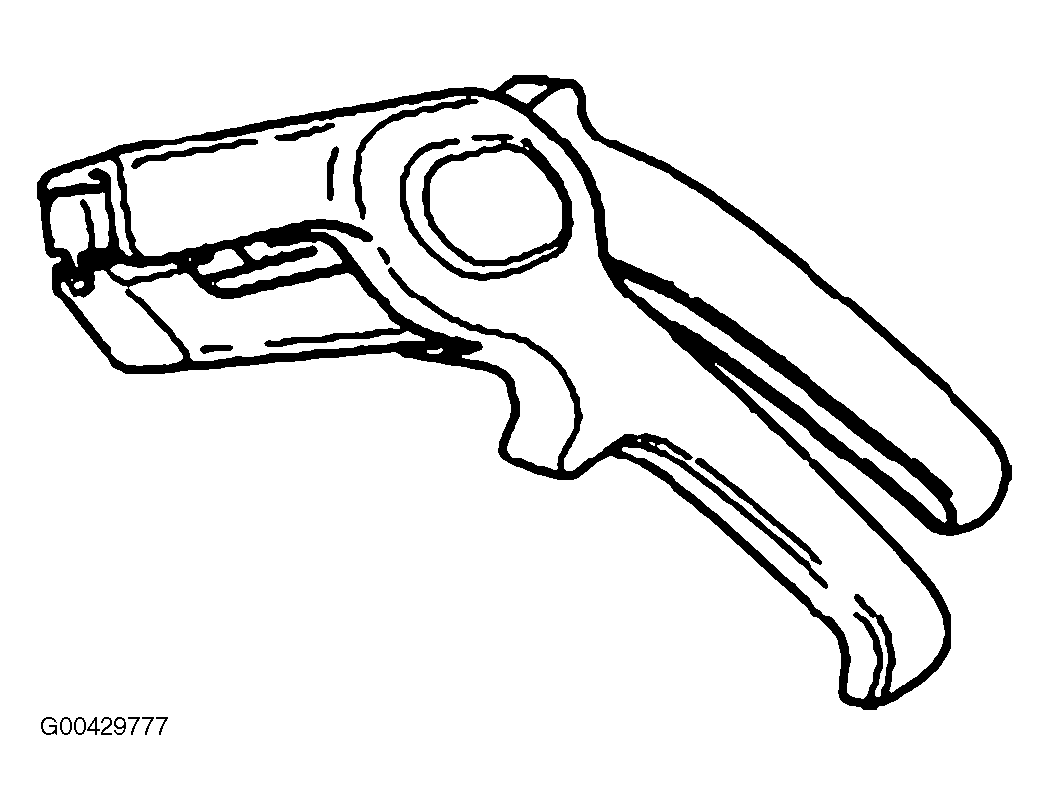

Fig 1: Identifying Special Tool 61 9 043

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to repair instructions:

Special tools for wiring harness repairs, refer to 61 13 SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

Cutting to length:

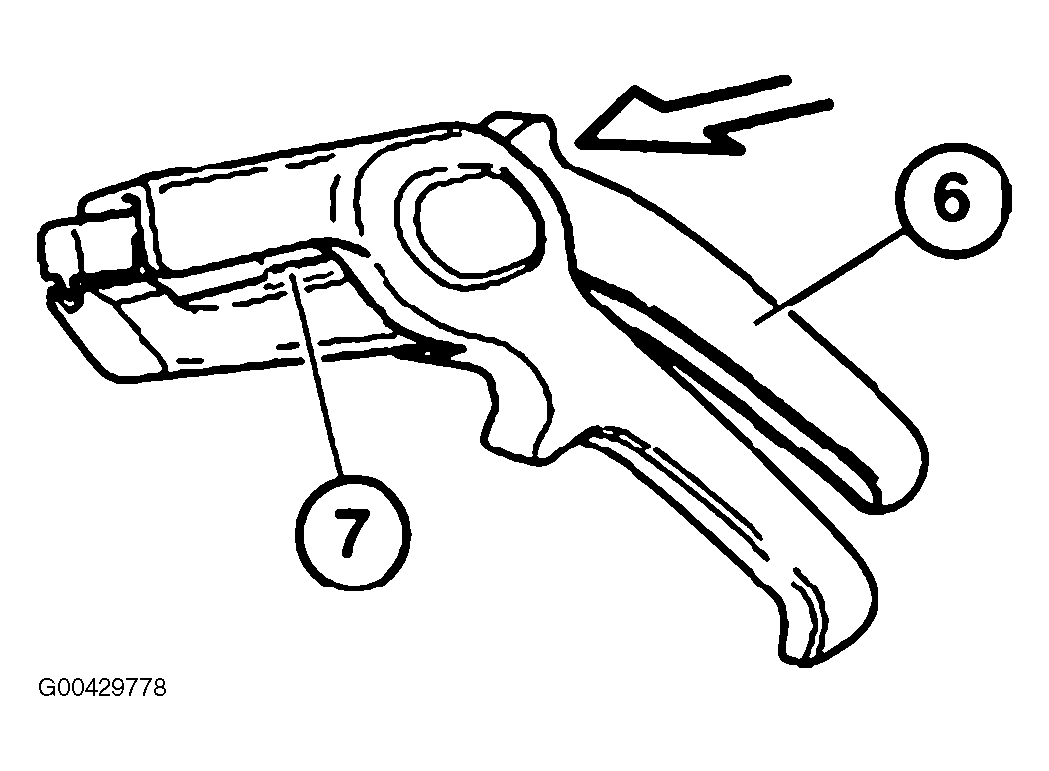

Slide upper handle of cable stripper (6) in direction of arrow until cutting tool (7) becomes visible. Open stripper in final position and hold in this position.

Fig 2: Sliding Upper Handle Of Cable Stripper (6) In Direction Of Arrow Until Cutting Tool (7) Becomes Visible

Courtesy of BMW OF NORTH AMERICA, INC.

Hold wire (8) between cutters and squeeze tool handles as far as they will go.

Fig 3: Identifying Wire (8)

Courtesy of BMW OF NORTH AMERICA, INC.

Stripping insulation

Guide wire (1) until behind knife. Wire length (2) behind knife blade represents the length from which insulation will be stripped.

Fig 4: Identifying Wire Length to Be Stripped

Courtesy of BMW OF NORTH AMERICA, INC.

Stripped length:

Squeeze tool handles until wire is held tight by jaws (3).

Fig 5: Identifying Jaws (3)

Courtesy of BMW OF NORTH AMERICA, INC.

Continue to squeeze tool handles. This strips insulation from wire (4).

Fig 6: Stripping Insulation From Wire (4)

Courtesy of BMW OF NORTH AMERICA, INC.

Open cable stripper and remove stripped wire (5).

Fig 7: Identifying Stripped Wire (5)

Courtesy of BMW OF NORTH AMERICA, INC.
