66 54 511 Replacing night vision camera

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).! See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks: Remove night vision camera. See 66 54 010 Removing And Installing Complete Night Vision Camera .

Release screw (1) on both sides. Remove camera (2) from holder (3). During installation, insert camera (1) in holder (2). Left guide pin (3) must be correctly seated in holder.

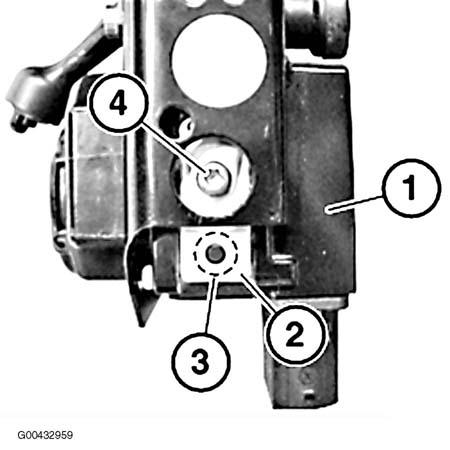

Fig 1: Installing Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Left guide pin (3) must be correctly seated in holder (2). Apply screw securing adhesive to screw (4) and tighten screw.

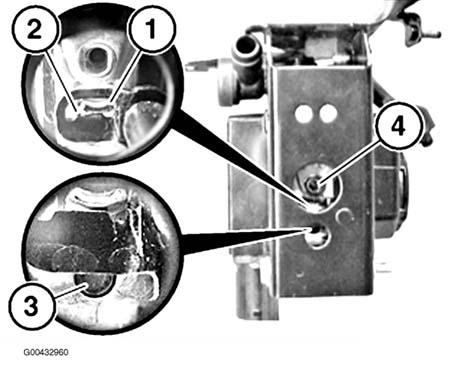

Fig 2: Ensuring Left Guide Pin Is Correctly Seated In Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Tab (1) must snap noticeably into holder (2). Make sure guide pin (3) is correctly seated in holder. Apply screw securing adhesive to screw (4) and tighten screw.

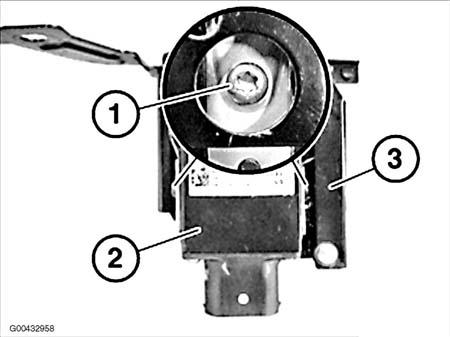

Fig 3: Ensuring Tab Snaps Into Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust night vision camera. See 66 54 001 Adjusting Night Vision Camera .
