66 54 001 Adjusting night vision camera

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mechanical adjustment, as described in the following, is only possible axially.

Vertical adjustment can only be carried out with the BMW diagnosis system: Service Functions-Body-Night Vision-Night Vision Camera-Vertical Adjustment.

Necessary preliminary tasks: remove grille in bumper trim on left. See 51 11 180 REMOVING AND INSTALLING/REPLACING GRILLE IN BUMPER TRIM (M5) OR M AERODYNAMIC KIT or 51 11 180 REMOVING AND INSTALLING/REPLACING TRIM GRILLE IN BUMPER TRIM .

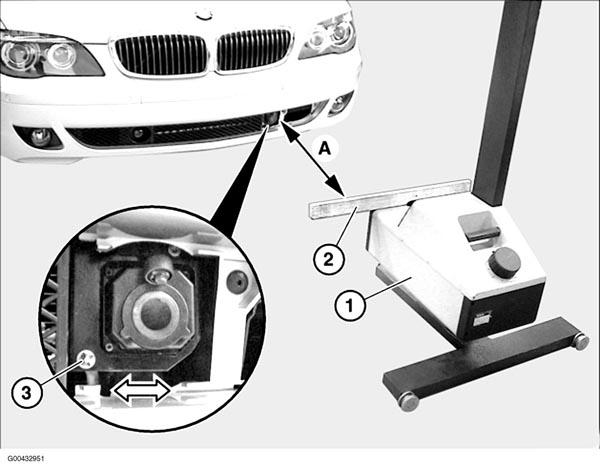

Set up headlight aiming device (1) at distance (A, approx. 1.5 m) to car. Align a suitable object (2), (here a wooden strip), horizontally on headlight aiming device. Slowly carry out axial adjustment of night vision camera at adjusting screw (3).

Fig 1: Aligning Night Vision Camera Using Headlight Aiming Device

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration below shows the in-car monitor view.

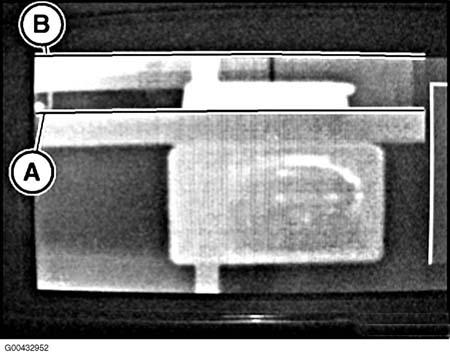

Fig 2: In-Car Monitor View

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, align the picture of the night vision camera with aid of a second person. Top edge (A) must be aligned parallel to top edge of screen (B).
