66 54 010 Removing and installing complete night vision camera

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

00 9 317

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection)! See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks: Remove front bumper trim. See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER .

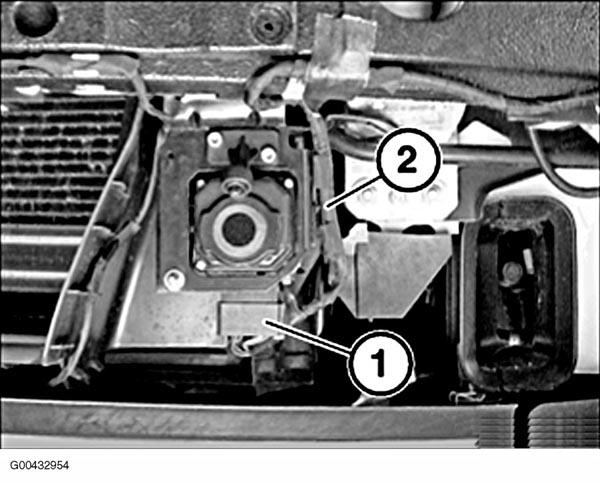

Disconnect plug connection (1). Disengage cable guide (2).

Fig 1: Disengaging Cable Guide

Courtesy of BMW OF NORTH AMERICA, INC.

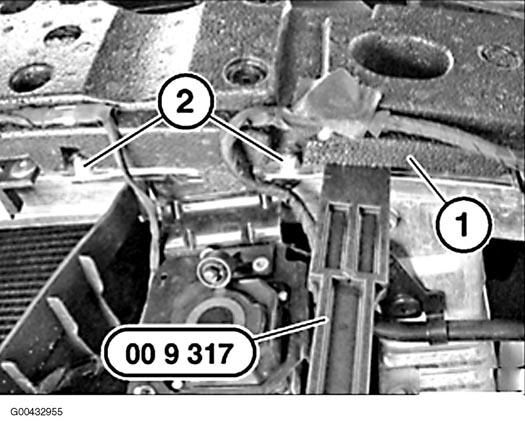

Gently lever out impact absorber (1) with special tool 00 9 317. Unscrew nuts (2). During installation, make sure impact absorber (1) is correctly seated.

Fig 2: Levering Out Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

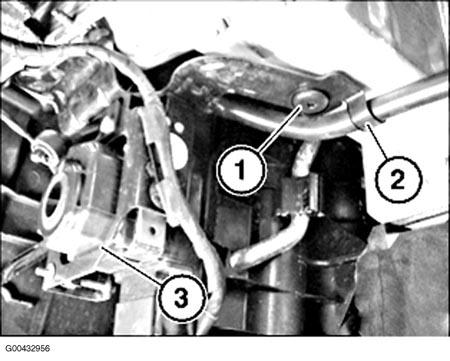

IMPORTANT: Secure night vision camera (3) against falling down.

Release screw (1) and disengage tube (2) from mounting. Remove night vision camera (3) complete with holder.

Fig 3: Removing Night Vision Camera

Courtesy of BMW OF NORTH AMERICA, INC.

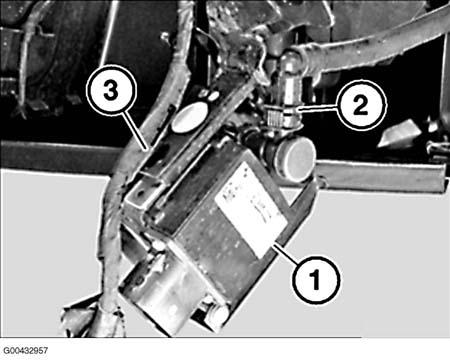

IMPORTANT: Secure night vision camera (1) against falling down.

Disconnect hose connection (2) and unclip cable fastener. After installation, fill up with washer fluid.

Fig 4: Disconnecting Hose Connection And Unclipping

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement only, replace night vision camera. See 66 54 511 Replacing Night Vision Camera .
