64 11 830 Replacing servodrive for left ventilation flap
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2007 BMW M5, 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Remove air distributor in footwell and heating duct in rear compartment on left. See 64 11 943 Replacing Evaporator Temperature Sensor .

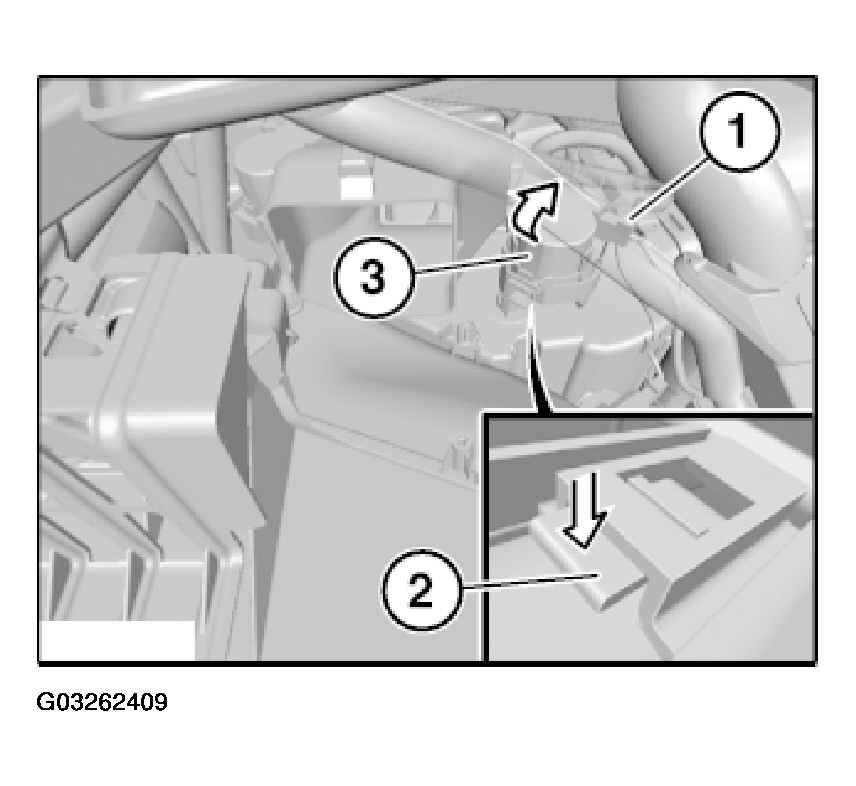

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for left ventilation flap (3) in direction of arrow.
Installation:
Follow repair instruction "Installing servodrive". See 64 11... Installing Servodrive .
Servodrive for left ventilation flap (3) must snap audibly into place.
