64 11 943 Replacing evaporator temperature sensor
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2007 BMW M5, 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, and 2007 BMW 525xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

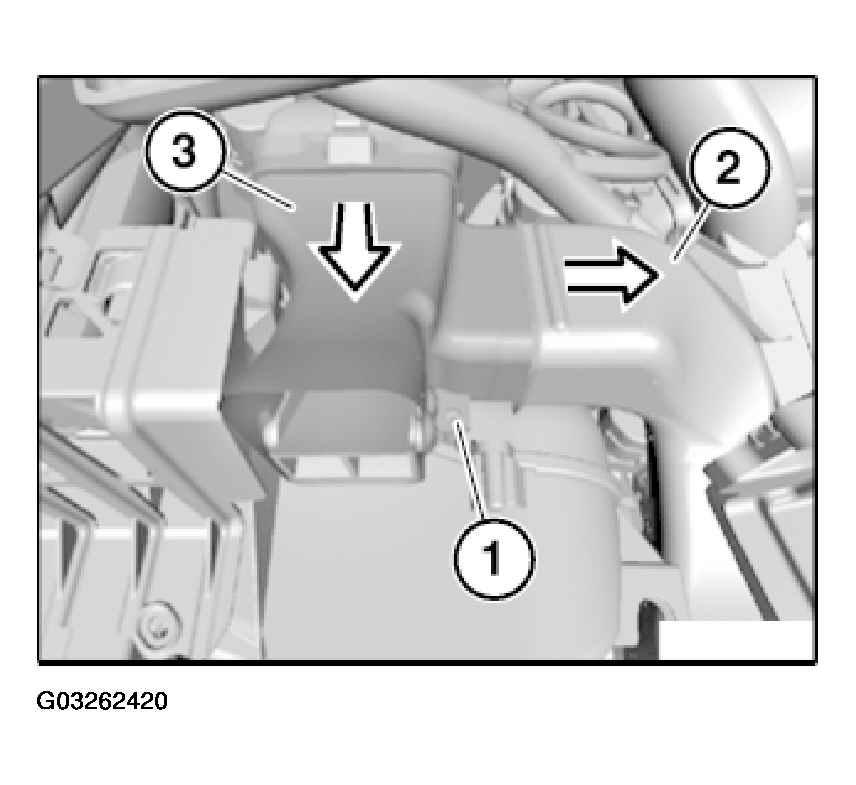

Release screw (1).
Detach heating duct in rear compartment on left (2) in direction of arrow from air distributor in footwell (3).
Pull out air distributor in footwell (3) in direction of arrow.
Installation:
Make sure heating duct in rear compartment on left (2) and air distributor in footwell (3) are correctly seated.

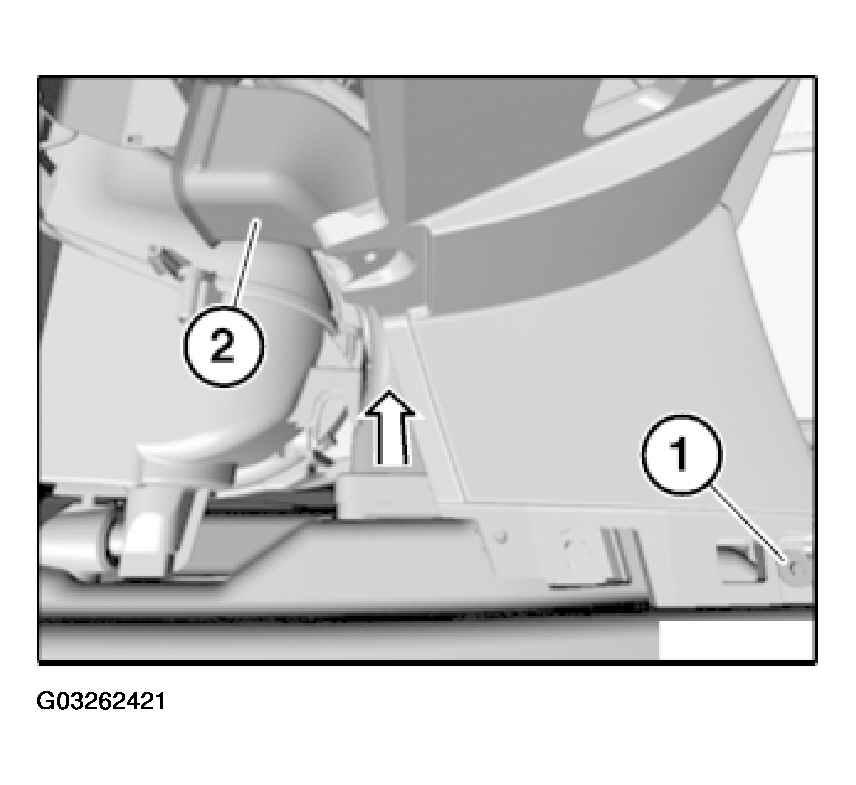

Unscrew bolt (1).
Pull out heating duct in rear compartment on left (2) in direction of arrow and feed out.
Installation:
Make sure heating duct in rear compartment on left (2) is correctly seated.

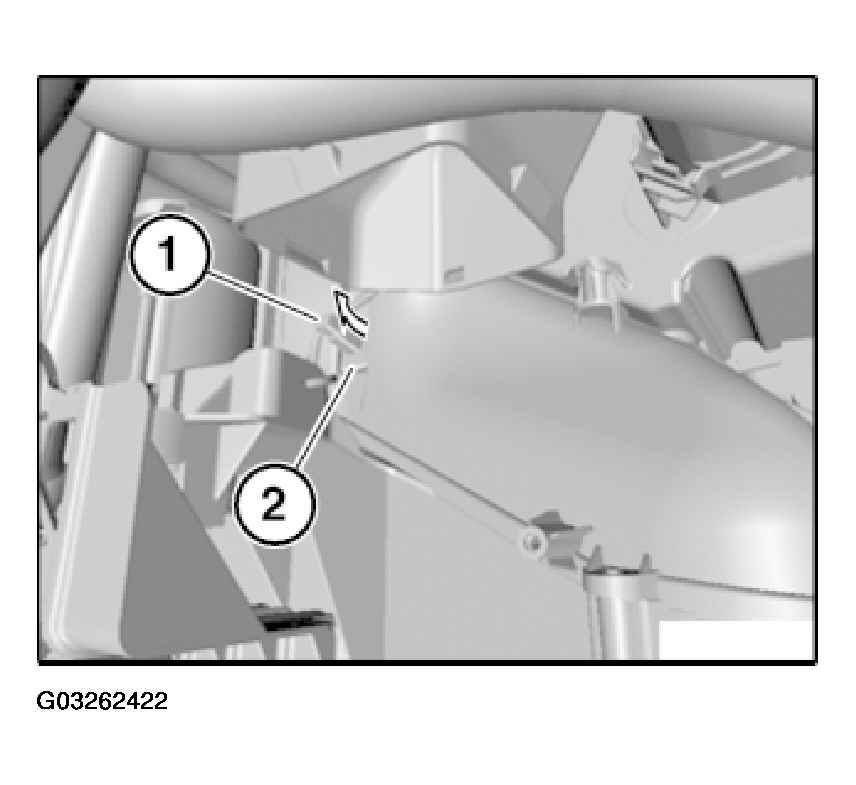

Unfasten plug connection (1) and disconnect.
Pull out evaporator temperature sensor (2) in direction of arrow and feed out.
Installation:
Ensure evaporator temperature sensor (2) is correctly seated.
